HEADLAMP
TS50XK 1987 (H) (E02 E16 E18 E21 E25)

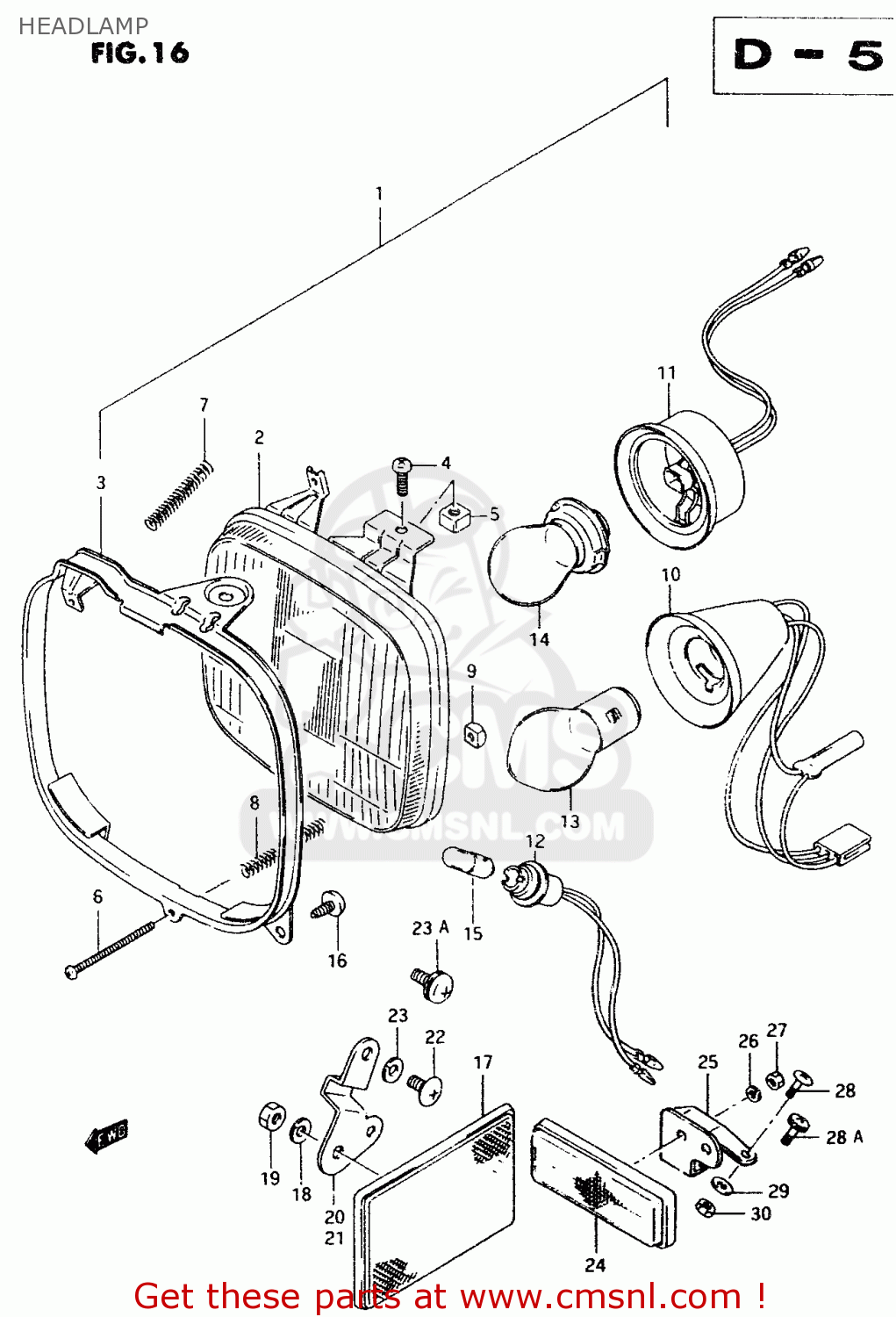

Headlamp diagram TS50XK 1987 (H) (E02 E16 E18 E21 E25)
HEADLAMP TS50XK 1987 (H) (E02 E16 E18 E21 E25)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510013691999
ref: 1-1
E1,E2,E16,E17,E18,E2
HEADLAMP ASSY
€ 189.00
1-2
3510013680999
ref: 1-2
E25
HEADLAMP ASSY
€ 154.00
2-1
3512113690
ref: 2-1
E1,E2,E16,E17,E18,E2
LAMP UNIT
€ 80.50
2-2
3512113680
ref: 2-2
E25
UNIT
€ 88.00
3
3513013610
ref: 3
RING,MOUNTING
€ 30.00
4
0211205126
ref: 4
SCREW 5X12
€ 1.50
5
3513545900
ref: 5
NUT
€ 2.50
6
3515131300
ref: 6
SCREW,HEADLAMP ADJUST
€ 3.00
7
3515413610
ref: 7
SPRING
€ 2.50
8
3515431300
ref: 8
SPRING
€ 2.00
9
3513545600
ref: 9
NUT
€ 3.00
10
3517113690
ref: 10
E1,E2,E16,E17,E18,E2
SOCKET
€ 18.50
11
3517102180
ref: 11
E25
SOCKET,HEAD LAMP
€ 15.00
12
3611845900
ref: 12
E1,E2,E16,E17,E18,E2
SOCKET,PARKING
€ 13.00
13
0947112020
ref: 13
E1,E2,E16,E17,E18,E2
BULB(12V35/35W)
€ 108.50
14
0947112090
ref: 14
E25,PURCHASE LOCALLY
BULB(12V15W)
€ 4.50
15
0947112063
ref: 15
E1,E2,E16,E17,E18,E2
BULB(12V4W)
€ 6.00
16-1
0321205165
ref: 16-1
MODEL E/G/H/J/M
SCREW
€ 7.50
16-2
0321205163
ref: 16-2
MODEL R
SCREW
€ 7.50
17-1
3595026941
ref: 17-1
E21,MODEL G/H/J E1
REFLEX REFLECTOR
€ 18.50
17-2
3595014A50
ref: 17-2
MODEL M E17
REFLEX REFLECTOR, REAR SIDE
€ 0.00
18-1
0832121055
ref: 18-1
E21,MODEL G/H/J E1 M
WASHER,LOCK
€ 3.00
18-2
0832101053
ref: 18-2
MODEL R E17
LOCK,WASHER
€ 3.00
19-1
0831012055
ref: 19-1
E21,MODEL G/H/J E1 M
NUT ,5MM
€ 2.50
19-2
0831000053
ref: 19-2
MODEL R E17
NUT
€ 2.50
20-1
3595626900
ref: 20-1
MODEL G/H/J E1,E21 M
BRACKET, RH
€ 5.50
20-2
3595613600
ref: 20-2
MODEL M E21
BRACKET, RH
€ 3.50
21-1
3595726900
ref: 21-1
MODEL G/H/J E1,E21 M
BRACKET, LH
€ 9.00
21-2
3595713600
ref: 21-2
MODEL M E21
BRACKET,FR SIDE REFLECTOR,L
€ 3.50
22
0214205104
ref: 22
E21,MODEL G/H/J E1 M
SCREW 5X10
€ 2.50
23
0832121055
ref: 23
E21,MODEL G/H/J E1 M
WASHER,LOCK
€ 3.00
23A
0211235103
ref: 23A
MODEL R E17
SCREW
€ 2.00
24
3596013700
ref: 24
MODEL M/R E17
REFLECTOR, FRONT
€ 14.50
25
3596613700
ref: 25
MODEL M/R E17
BRACKET, FRONT REFLECTOR
€ 6.50
26
0832121057
ref: 26
MODEL M E17
LOCK WASHER
€ 2.00
27-1
0831000057
ref: 27-1
MODEL M E17
NUT
€ 2.50
27-2
0831000053
ref: 27-2
MODEL R E17
NUT
€ 2.50
28
0211205125
ref: 28
MODEL M E17
SCREW
€ 1.50
28A
0211235103
ref: 28A
MODEL R E17
SCREW
€ 2.00
29
0916005016
ref: 29
MODEL M/R E17
WASHER
€ 1.50
30
0831000053
ref: 30
MODEL M/R E17
NUT
€ 2.50
