FRAME FRONT COVER

TS50XK 1987 (H) (E02 E16 E18 E21 E25)

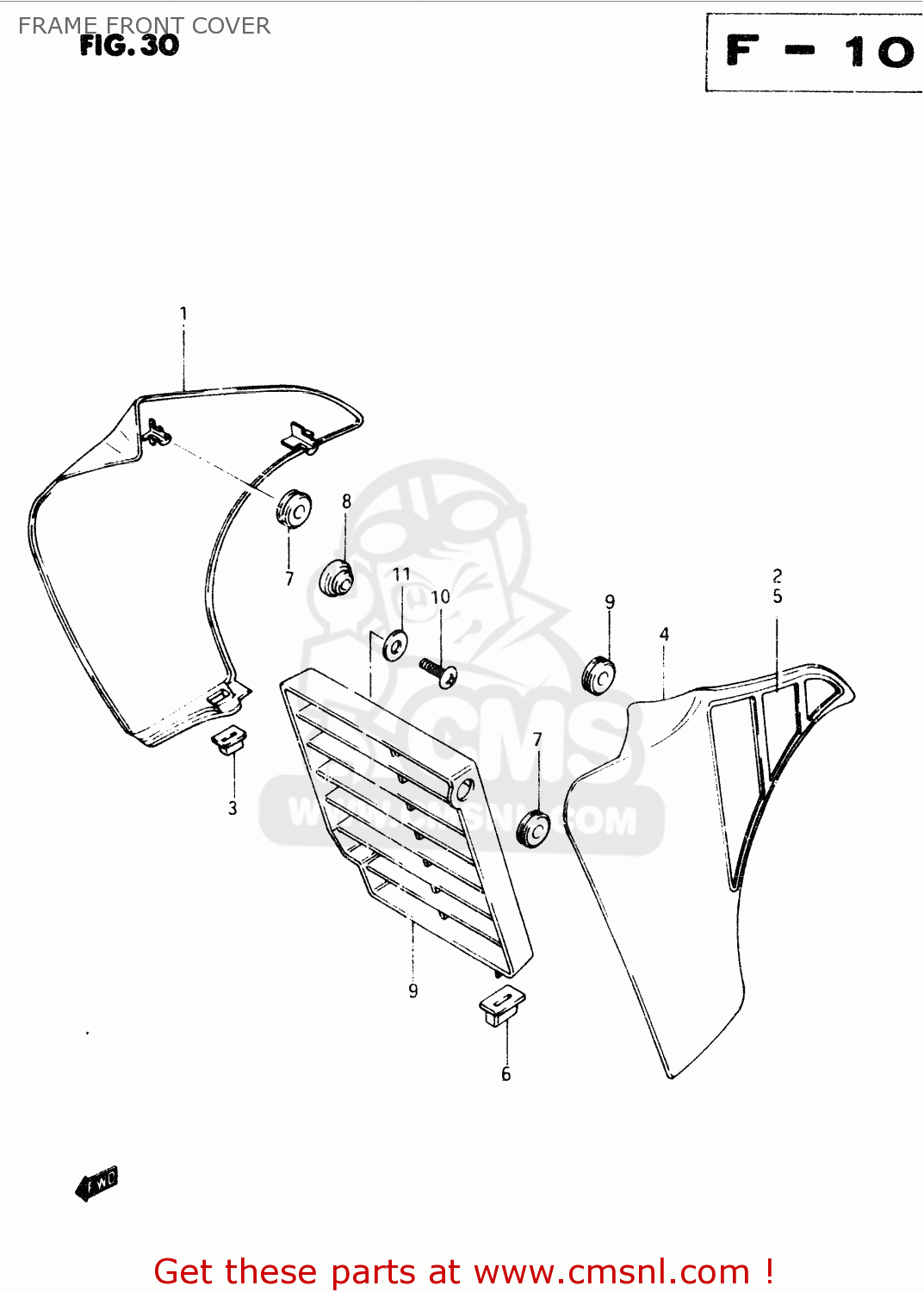

Frame front cover diagram TS50XK 1987 (H) (E02 E16 E18 E21 E25)

FRAME FRONT COVER TS50XK 1987 (H) (E02 E16 E18 E21 E25)
FRAME FRONT COVER TS50XK 1987 (H) (E02 E16 E18 E21 E25)
FRAME FRONT COVER TS50XK 1987 (H) (E02 E16 E18 E21 E25)
prices are in EUR
ref
part #
description
quantity
1-1
475111370214C
ref: 1-1
MODEL E/G ->47511-13
COVER,FRAME FR
475111370214C
€ 37.00
1-2
4751113702163
ref: 1-2
MODEL E/G
COVER,FRAME FR
€ 37.00
1-3
475111370221C
ref: 1-3
COVER,FRAME FR,R
475111370221C
€ 23.00
1-4
475111370208Y
ref: 1-4
MODEL E/G
COVER,FRAME FR
€ 37.00
1-5
475111370214L
ref: 1-5
MODEL H/J/M
COVER, FRAME FRONT RH (WHITE)
475111370214L
€ 19.50
1-6
475111370225Y
ref: 1-6
MODEL H/J/M
COVER, FRAME FRONT RH (YELLOW)
475111370225Y
€ 49.50
1-7
47511137020NF
ref: 1-7
MODEL R
COVER,RADIATOR,R
47511137020NF
€ 25.00
1-8
475111370221C
ref: 1-8
MODEL R
COVER,FRAME FR,R
475111370221C
€ 23.00
2-1
6866013611291
ref: 2-1
MODEL E/G MODEL J FO
TAPE SET,FRAME COVER FR,R
6866013611291
€ 7.00
2-2
686601361110W
ref: 2-2
MODEL H
TAPE SET, FRONT RH (BLUE)
686601361110W
€ 7.50
2-3
686601361119F
ref: 2-3
MODEL J FOR 21C
TAPE SET, FRONT RH (BLUE)
686601361119F
€ 6.50
3
4751413600
ref: 3
CUSHION RADI C
4751413600
€ 3.00
4-1
472811365214C
ref: 4-1
MODEL E/G ->47281-13
COVER, FRAME FRONT LH (RED)
472811365214C
€ 39.00
4-2
4728113652163
ref: 4-2
MODEL E/G
COVER,FRAME FR
4728113652163
€ 39.00
4-3
472811365221C
ref: 4-3
COVER,FRAME FR,L
472811365221C
€ 23.00
4-4
472811365208Y
ref: 4-4
MODEL E/G ->47281-13
COVER,FRAME FR
€ 39.00
4-5
472811365214L
ref: 4-5
MODEL H/J/M
COVER, FRAME FRONT LH (WHITE)
472811365214L
€ 34.50
4-6
472811365225Y
ref: 4-6
MODEL H/J/M
COVER, FRAME FRONT LH (YELLOW)
€ 19.50
4-7
47281136520NF
ref: 4-7
MODEL R
COVER,FRAME FR,L
47281136520NF
€ 25.00
4-8
472811365221C
ref: 4-8
MODEL R
COVER,FRAME FR,L
472811365221C
€ 23.00
5-1
6867013611291
ref: 5-1
MODEL E/G MODEL J FO
TAPE SET,FRAME COVER FR,L
6867013611291
€ 7.00
5-2
686701361110W
ref: 5-2
MODEL H
TAPE SET, FRONT LH (BLUE)
€ 5.50
5-3
686701361119F
ref: 5-3
MODEL J FOR 21C
TAPE SET, FRONT LH (BLUE)
686701361119F
€ 6.50
6
4728513650
ref: 6
CUSHION,FRAME FR COVER,L
4728513650
€ 5.50
7
0932008013
ref: 7
CUSHION
0932008013
€ 4.00
8
0932110007
ref: 8
CUSHION
0932110007
€ 4.50
9
4753113650
ref: 9
LOUVER,FRAME FR
4753113650
€ 17.00
10-1
0214206164
ref: 10-1
MODEL E/G/H/J
SCREW
0214206164
€ 2.50
10-2
0913606061
ref: 10-2
MODEL M/R
SCREW(6X16)
0913606061
€ 3.00
11
0916006069
ref: 11
WASHER
0916006069
€ 2.00
