2ND AIR
TU250X 2012 (L2) USA (E03)

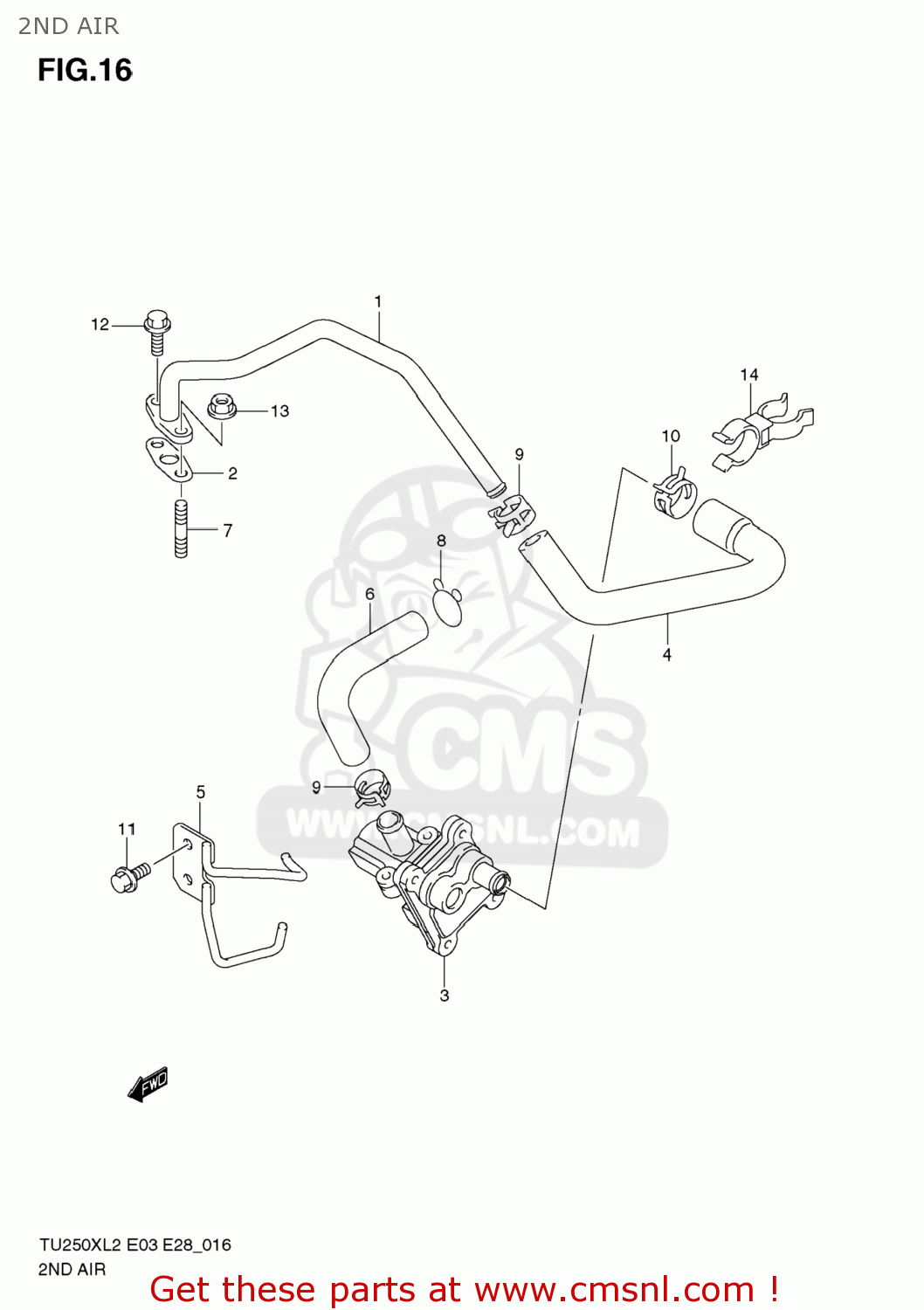

2nd air diagram TU250X 2012 (L2) USA (E03)
2ND AIR TU250X 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1841026G10
ref: 1
PIPE,2ND AIR
€ 34.50
2
1844145C01
ref: 2
GASKET,2ND AIR PIPE (NAS)
€ 6.00
3
1845026G11
ref: 3
VALVE ASSY,2ND AIR
€ 142.00
4
1846126G11
ref: 4
HOSE,2ND AIR VALVE
€ 16.50
5
1861026G00
ref: 5
BRACKET,2ND AIR VALVE
€ 15.00
6
1871126G20
ref: 6
HOSE,2ND AIR CLEANER
€ 8.50
7
0910806102
ref: 7
BOLT,STUD
€ 3.00
8
0940115101
ref: 8
CLIP
€ 2.00
9
0940117401
ref: 9
CLIP
€ 2.00
10
0940120408
ref: 10
CLIP
€ 3.00
11
015470612A
ref: 11
BOLT
€ 2.00
12
015500616A
ref: 12
BOLT
€ 2.50
13
083161006A
ref: 13
NUT
€ 2.50
14
0940800262
ref: 14
CLAMP
€ 2.00
