BATTERY HOLDER

TU250X 2012 (L2) USA (E03)

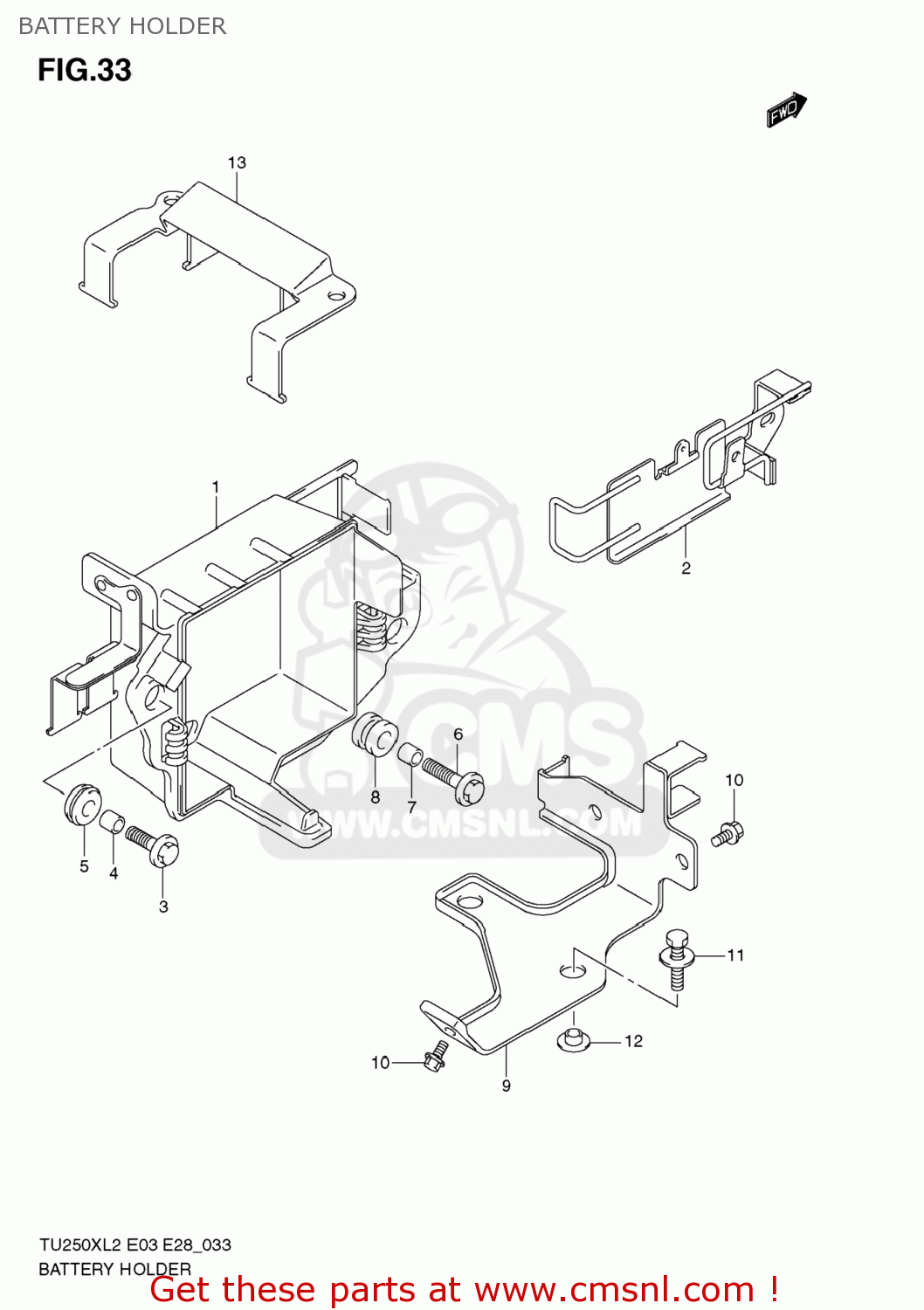

Battery holder diagram TU250X 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

4154026G10
ref: 1

HOLDER,BATTERY

€ 46.00

4156026G10
ref: 2

BAND,BATTERY HOLDER

€ 56.50

0911606150
ref: 3

BOLT(6X25)

€ 2.50

0918006263
ref: 4

SPACER(6.5X9X9)

€ 2.00

0932008047
ref: 5

CUSHION

€ 4.00

0911606150
ref: 6

BOLT(6X25)

€ 2.50

0918006263
ref: 7

SPACER(6.5X9X9)

€ 2.00

0932009016
ref: 8

CUSHION

€ 2.50

4741026G00
ref: 9

PLATE,ELECTRIC PARTS NO.1

€ 29.50

021620610B
ref: 10

SCREW

€ 1.50

021620612B
ref: 11

SCREW

€ 1.50

0918006176
ref: 12

SPACER(6.5X10X2.5)

€ 3.00

4742026G00
ref: 13

PLATE,ELECTRIC PARTS NO.2

€ 28.50
