MAGNETO

TU250X 2012 (L2) USA (E03)

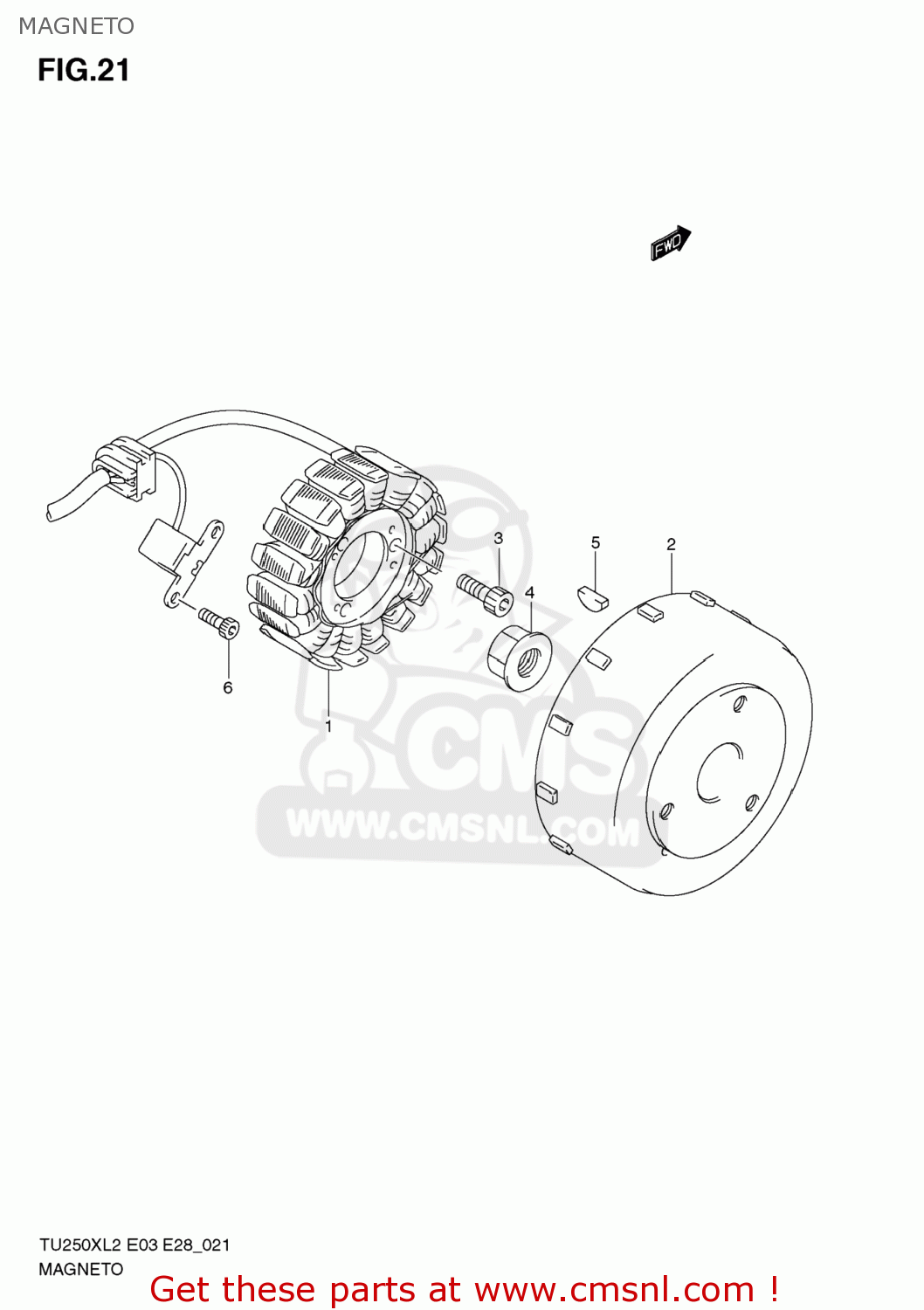

Magneto diagram TU250X 2012 (L2) USA (E03)

MAGNETO TU250X 2012 (L2) USA (E03)

MAGNETO TU250X 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210126G10
ref: 1

STARTER ASSY

€ 342.00

2

3210226G00
ref: 2

ROTOR ASSY

€ 272.50

3

071300630A
ref: 3

BOLT

€ 3.00

4

3179249200
ref: 4

NUT,GENERATOR ROTOR

€ 10.00

5

0834131039
ref: 5

KEY

€ 2.00

6

071300512A
ref: 6

BOLT

€ 2.50
