REAR BRAKE ROD

TU250X 2012 (L2) USA (E03)

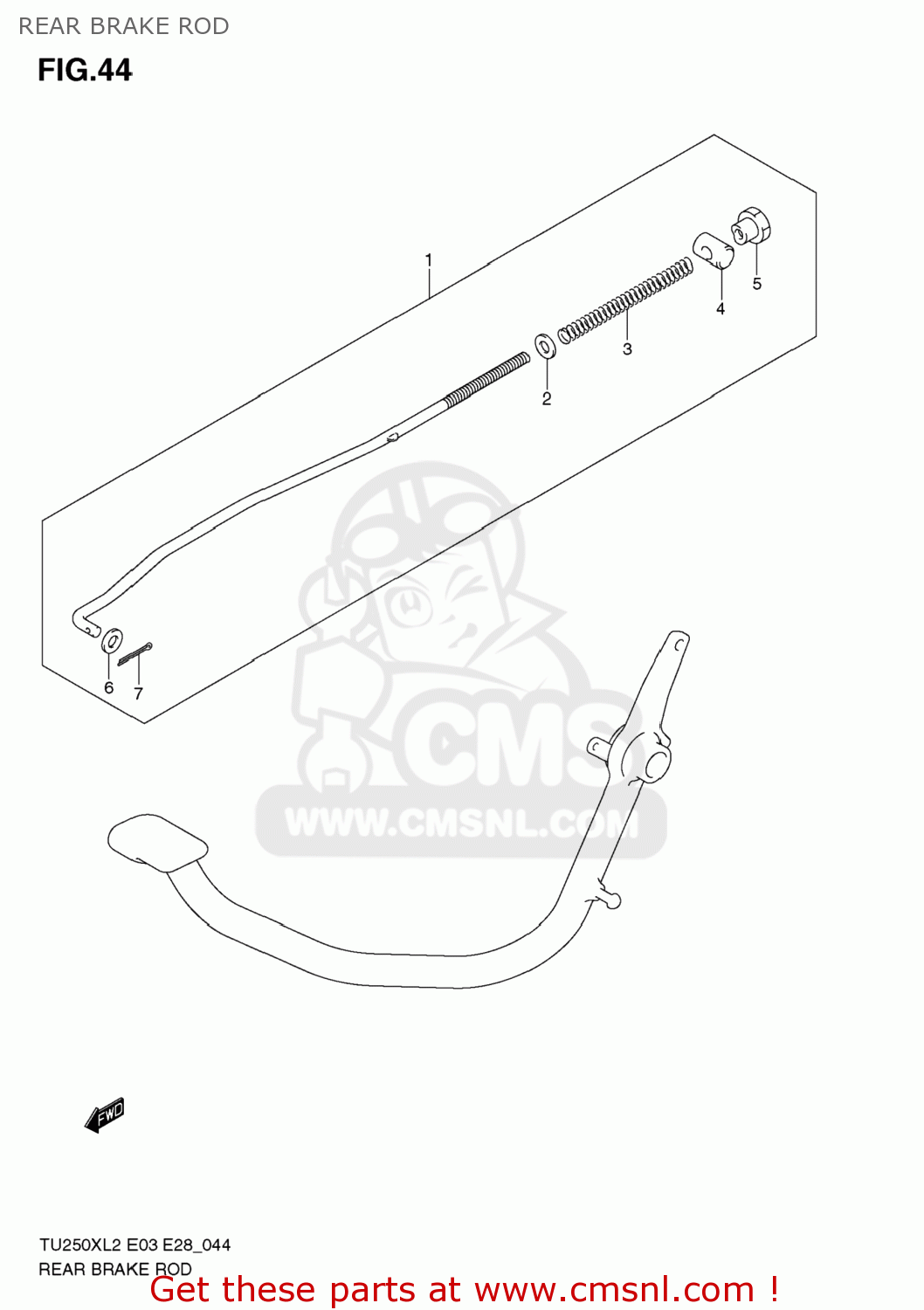

Rear brake rod diagram TU250X 2012 (L2) USA (E03)

REAR BRAKE ROD TU250X 2012 (L2) USA (E03)

REAR BRAKE ROD TU250X 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4330026G00
ref: 1

ROD ASSY,RR BRAKE

€ 31.00

2

083220106B
ref: 2

WASHER

€ 2.00

3

0944009004
ref: 3

SPRING

€ 2.00

4

0920911002
ref: 4

PIN(11X18)

€ 2.00

5

0915006010
ref: 5

NUT

€ 3.50

6

083220105B
ref: 6

WASHER

€ 2.50

7

041112020A
ref: 7

PIN

€ 1.50
