CRANKCASE
TU250X 2012 (L2) USA (E03)

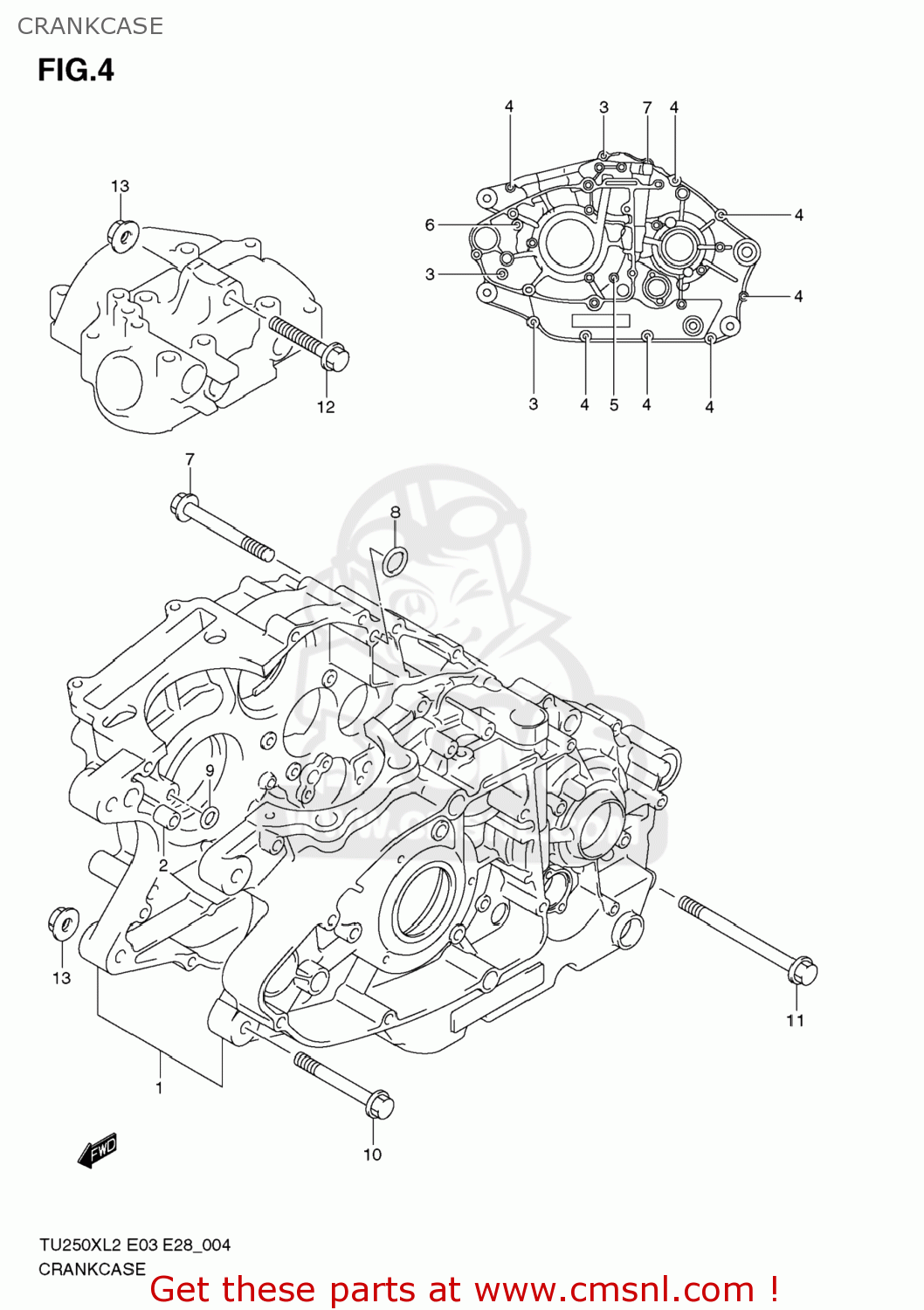

Crankcase diagram TU250X 2012 (L2) USA (E03)
CRANKCASE TU250X 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130026G01
ref: 1
CRANKCASE ASSY
€ 593.00
2
0421113189
ref: 2
PIN
€ 2.50
3
015470635A
ref: 3
BOLT
€ 3.00
4
0154706457
ref: 4
BOLT
€ 2.50
5
015470655A
ref: 5
BOLT
€ 2.50
6
015470660A
ref: 6
BOLT
€ 2.50
7
015470670A
ref: 7
BOLT
€ 2.50
8
0928010016
ref: 8
O RING(D:1.9,ID:9.8)
€ 3.50
9
0928007004
ref: 9
O RING(D:1.9,ID:6.8)
€ 1.50
10
0910308037
ref: 10
BOLT(8X67)
€ 6.50
11
0910308179
ref: 11
BOLT(8X105)
€ 4.00
12
0910308081
ref: 12
BOLT(8X50)
€ 3.50
13
083193108A
ref: 13
NUT
€ 2.50
