BATTERY

TU250X 2012 (L2) USA (E03)

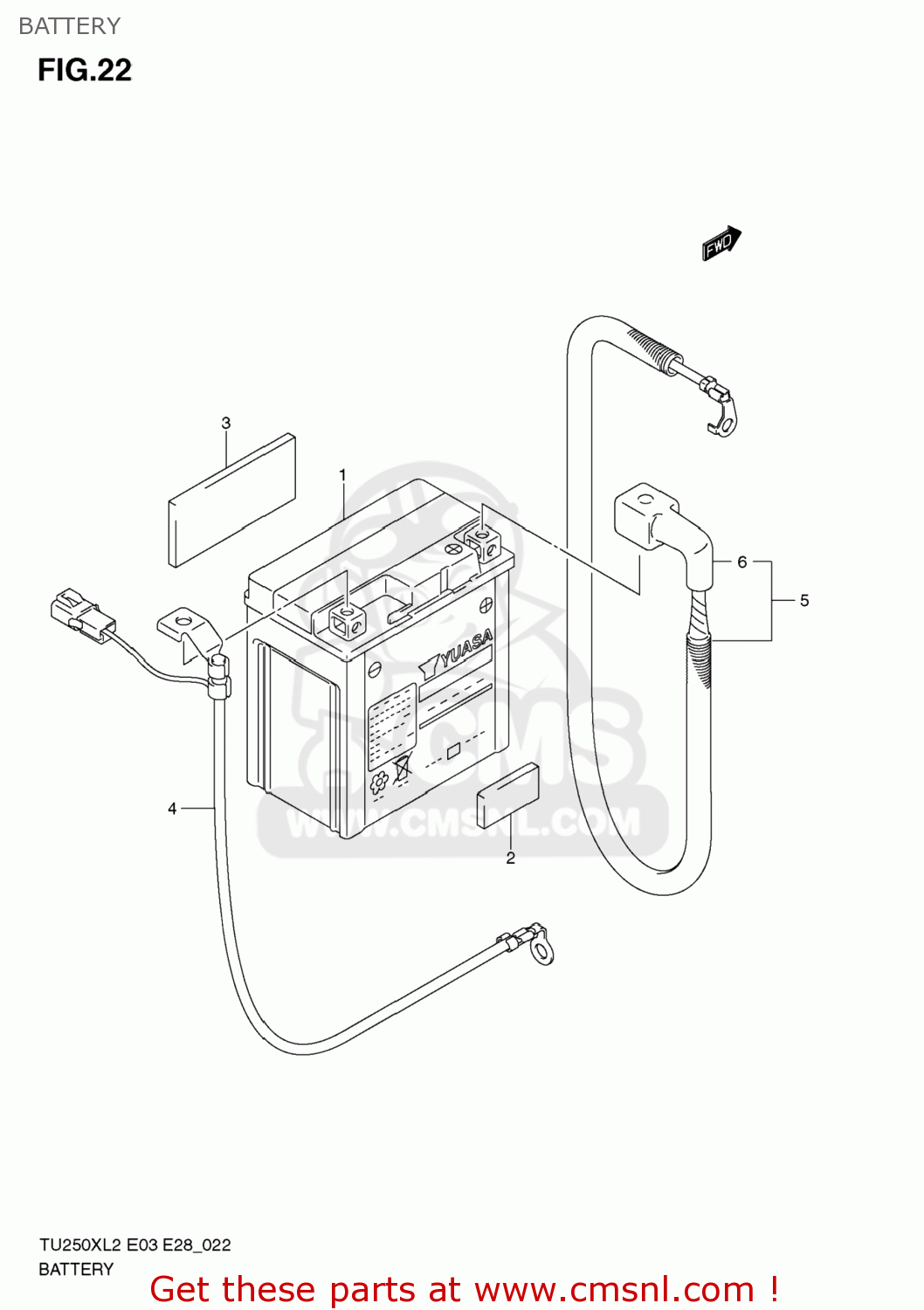

Battery diagram TU250X 2012 (L2) USA (E03)

BATTERY TU250X 2012 (L2) USA (E03)

BATTERY TU250X 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361015D20
ref: 1

BATTERY ASSY(YTX7L-BS,12V6AH)

€ 65.50

2

3365224D00
ref: 2

PROTECTOR,BATTERY(100X70X3)

€ 4.00

3

3365228C00
ref: 3

PROTECTOR

€ 2.00

4

3386026G00
ref: 4

WIRE,BATTERY MINUS LEAD

€ 15.00

5

3382026G10
ref: 5

WIRE,BATTERY PLUS LEAD

€ 17.00

6

3362443500
ref: 6

CAP,BATTERY PLUS TERMINAL

€ 3.50
