CAM CHAIN

TU250X 2012 (L2) USA (E03)

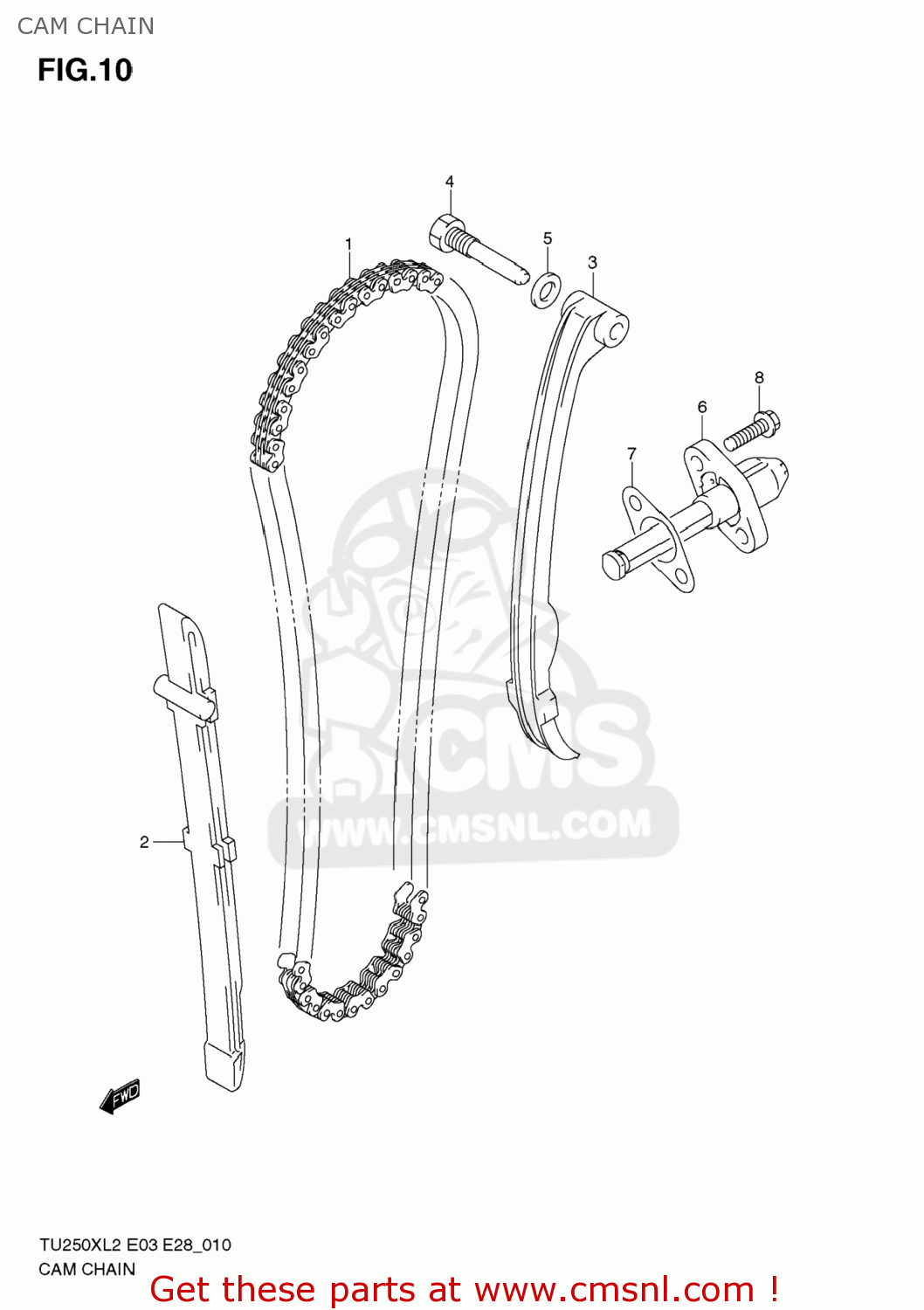

Cam chain diagram TU250X 2012 (L2) USA (E03)

CAM CHAIN TU250X 2012 (L2) USA (E03)

CAM CHAIN TU250X 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1276026G00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 59.50

2

1277126G00
ref: 2

GUIDE,CAM CHAIN

€ 19.00

3

1281126G00
ref: 3

TENSIONER,CAM CHAIN

€ 27.00

4

1281232400
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

5

0916808016
ref: 5

GASKET(8.2X14X1) (NAS)

€ 1.00

6

1283026G00
ref: 6

ADJUSTER ASSY,TENSIONER

€ 64.50

7

1283732410
ref: 7

GASKET,TENSIONER ADJUSTER (NAS)

€ 2.50

8

0910306223
ref: 8

BOLT(6X20)

€ 2.50
