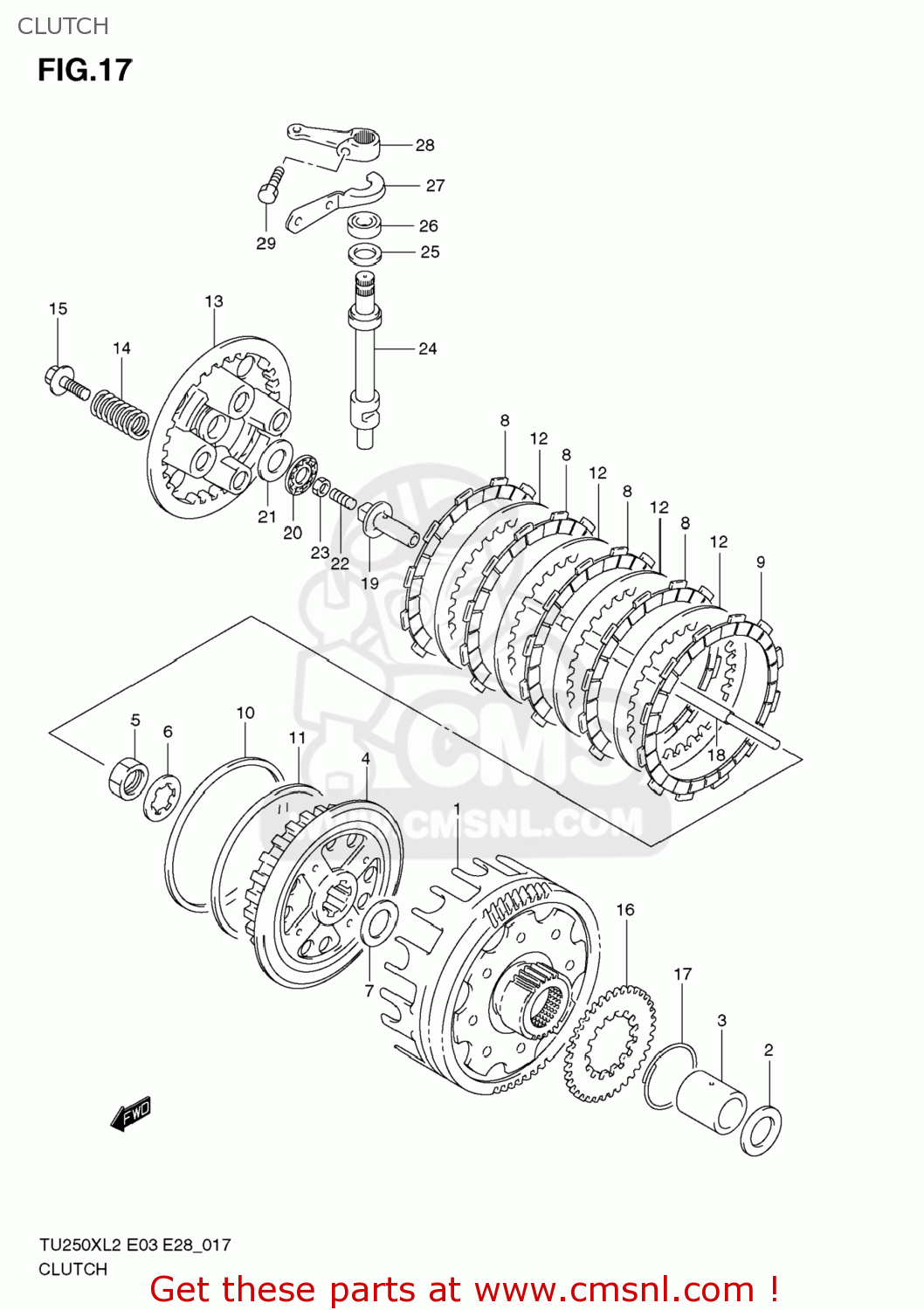

CLUTCH

ref

part #

description

quantity

1

2120038201
ref: 1

GEAR ASSY,PRI DRIVEN

€ 263.00

2

0821122363
ref: 2

WASHER

€ 2.50

3

0918022024
ref: 3

SPACER(22X28X37.5)

€ 16.50

4

2141138201
ref: 4

HUB,CLUTCH SLEEVE

€ 97.50

5

0914022005
ref: 5

NUT

€ 4.00

6

0916722010
ref: 6

WASHER,LOCK

€ 4.00

7

0821122363
ref: 7

WASHER

€ 2.50

8

2144137400
ref: 8

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

9

2144237401
ref: 9

PLATE,CLUTCH DRIVE(T:3.5) (NAS)

€ 11.50

10

2147137400
ref: 10

SEAT,WAVE WASHER(T:1.4)

€ 8.00

11

0916400004
ref: 11

WASHER

€ 9.00

12

2145114A00
ref: 12

PLATE,CLUTCH DRIVEN(T:1.6) (NAS)

€ 6.50

13

2146227A00
ref: 13

DISC,CLUTCH PRESSURE

€ 37.00

14

2141313F00
ref: 14

SPRING,CLUTCH

€ 3.50

15

0911606167
ref: 15

BOLT(6X20)

€ 2.00

16

1632138210
ref: 16

GEAR,ENG OIL PUMP(NT:38)

€ 16.00

17

0938050001
ref: 17

CIRCLIP

€ 2.50

18

2311038201
ref: 18

ROD,CLUTCH PUSH

€ 14.50

19

2312138201
ref: 19

PIECE,CLUTCH PUSH

€ 17.00

20

0926315003
ref: 20

BEARING(15X28X2)

€ 7.00

21

0916015045
ref: 21

WASHER(15.5X28X1)

€ 4.00

22

0913406010
ref: 22

SCREW(6X25)

€ 3.00

23

0914006023
ref: 23

NUT

€ 2.00

24

2312238200
ref: 24

CAMSHAFT,CLUTCH RELEASE

€ 60.50

25

0916014054
ref: 25

WASHER(14.5X22X1)

€ 1.00

26

0928512006
ref: 26

SEAL,OIL (12X22X9)

€ 7.00

27

2311738200
ref: 27

PLATE,CLUTCH RRS CAMSHAFT SEAL

€ 4.50

28

2327112D10
ref: 28

ARM,CLUTCH RELEASE

€ 17.50

29

0150006207
ref: 29

BOLT

€ 2.00
