STAND

TU250X 2012 (L2) USA (E03)

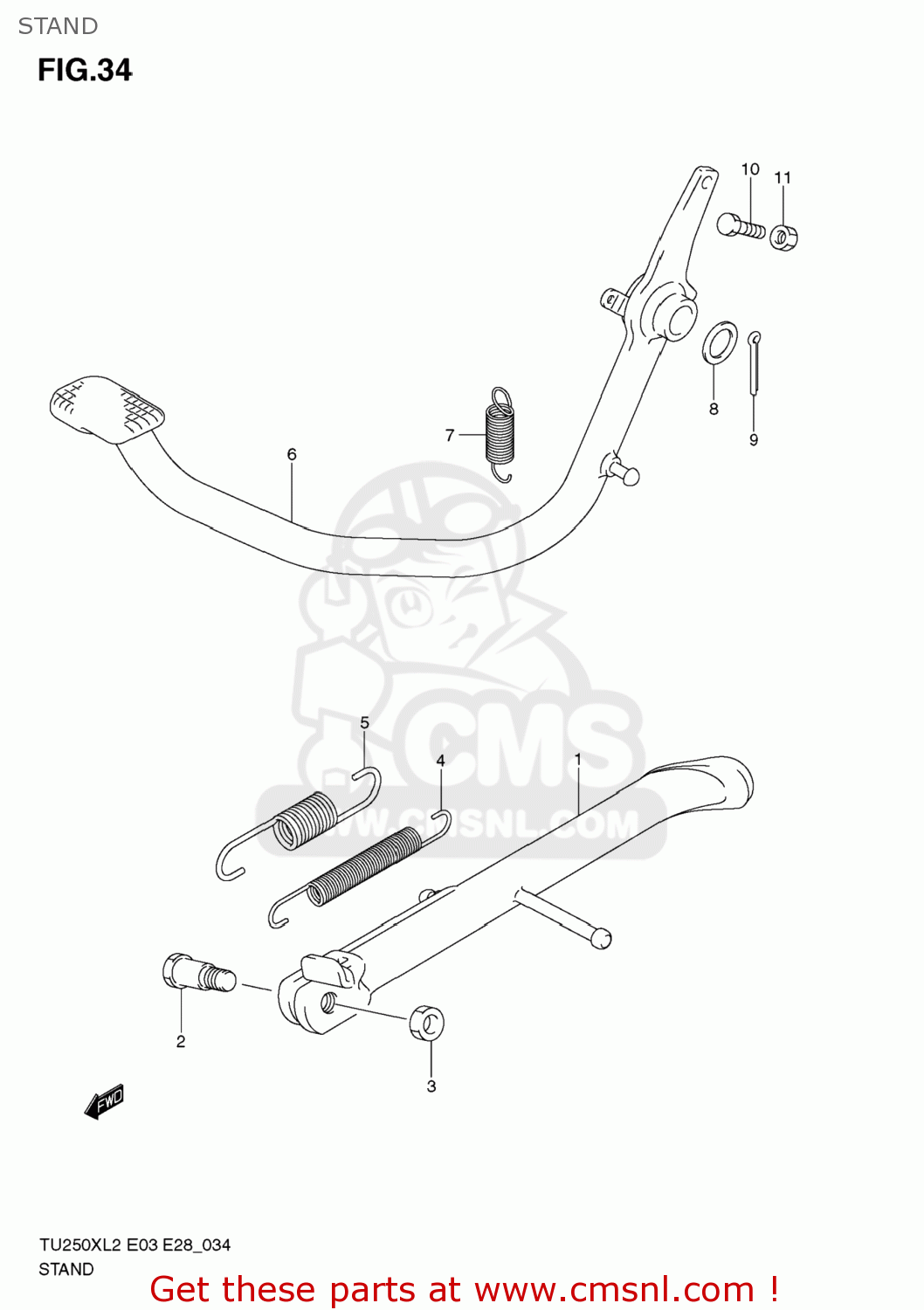

Stand diagram TU250X 2012 (L2) USA (E03)

STAND TU250X 2012 (L2) USA (E03)

STAND TU250X 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231026G10
ref: 1

STAND,PROP

€ 62.50

2

0911110036
ref: 2

BOLT(10X38)

€ 5.50

3

083193110B
ref: 3

NUT

€ 3.00

4

0944312036
ref: 4

SPRING

€ 7.50

5

0944319010
ref: 5

SPRING

€ 6.00

6

4311026G00
ref: 6

PEDAL,BRAKE

€ 48.50

7

0944314013
ref: 7

SPRING

€ 21.50

8

0916015002
ref: 8

WASHER(15.5X26X2.3)

€ 2.00

9

041113025A
ref: 9

PIN

€ 1.00

10

0910006009
ref: 10

BOLT(6X23)

€ 1.50

11

083100006B
ref: 11

NUT

€ 2.00
