STARTING MOTOR
TU250X 2012 (L2) USA (E03)

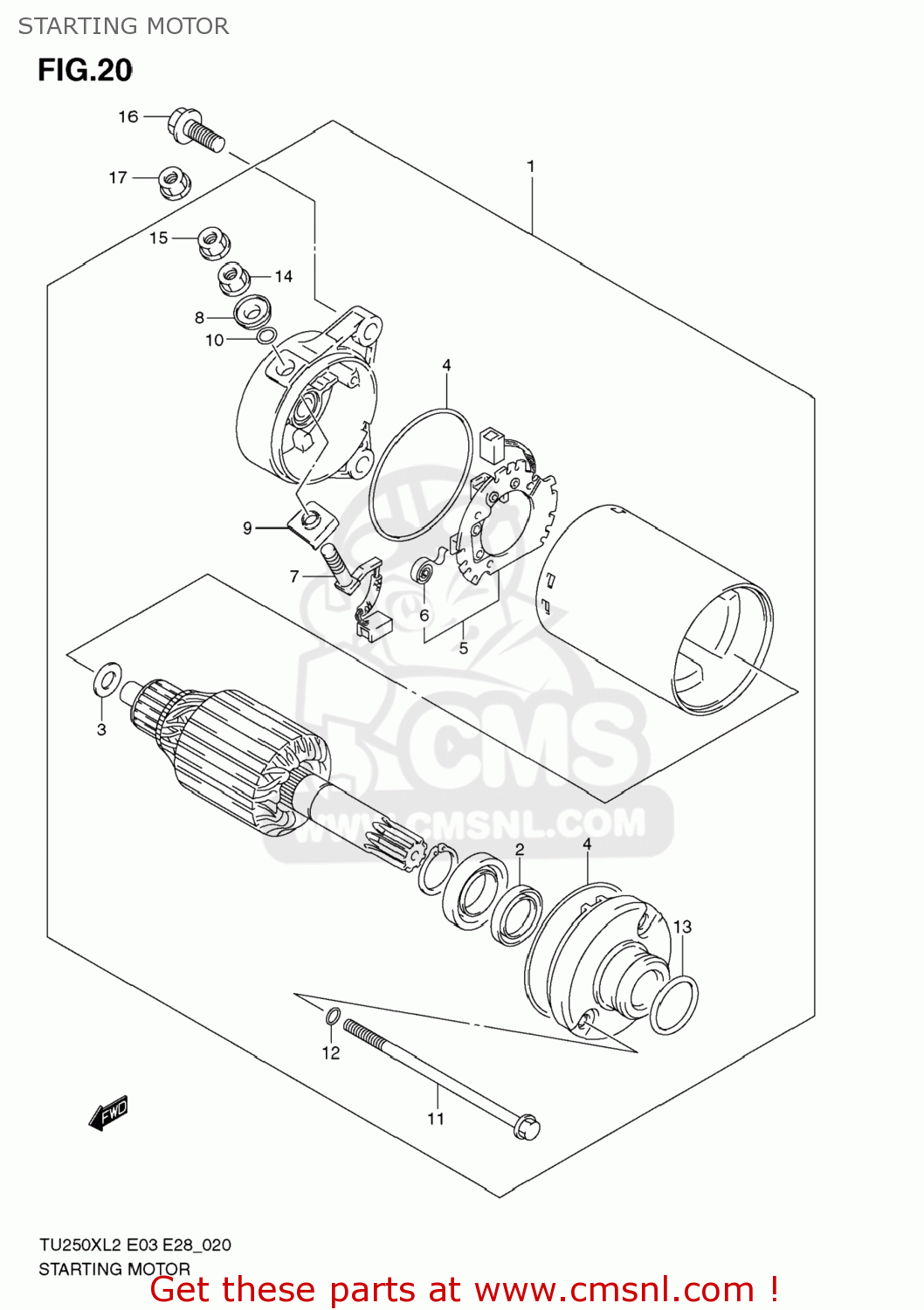

Starting motor diagram TU250X 2012 (L2) USA (E03)
STARTING MOTOR TU250X 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110038300H17
ref: 1
MOTOR ASSY,STARTING
€ 707.00
2
3115349210
ref: 2
SEAL,OIL
€ 15.00
3
3117043400
ref: 3
SHIM SET,STARTING MOTOR
€ 3.50
4
3126444110
ref: 4
O RING
€ 8.00
5
3113227A01
ref: 5
HOLDER,BRUSH
€ 47.00
6
3113565010
ref: 6
SPRING
€ 3.00
7
3113038300
ref: 7
BRUSH SUB ASSY,STARTING MOTOR
€ 12.50
8
3117238300
ref: 8
BUSHING
€ 4.00
9
3117138300
ref: 9
BUSH,B
€ 5.50
10
3114338300
ref: 10
O RING
€ 3.50
11
3128187402
ref: 11
BOLT
€ 11.50
12
3115638300
ref: 12
O RING
€ 3.00
13
0928024003
ref: 13
O RING(D:3,ID:24.5)
€ 2.00
14
0831000067
ref: 14
NUT
€ 2.50
15
083613506A
ref: 15
NUT
€ 2.00
16
0910306212
ref: 16
BOLT(6X25)
€ 2.50
17
083613506A
ref: 17
NUT
€ 2.00
