HEADLAMP

TU250X 2012 (L2) USA (E03)

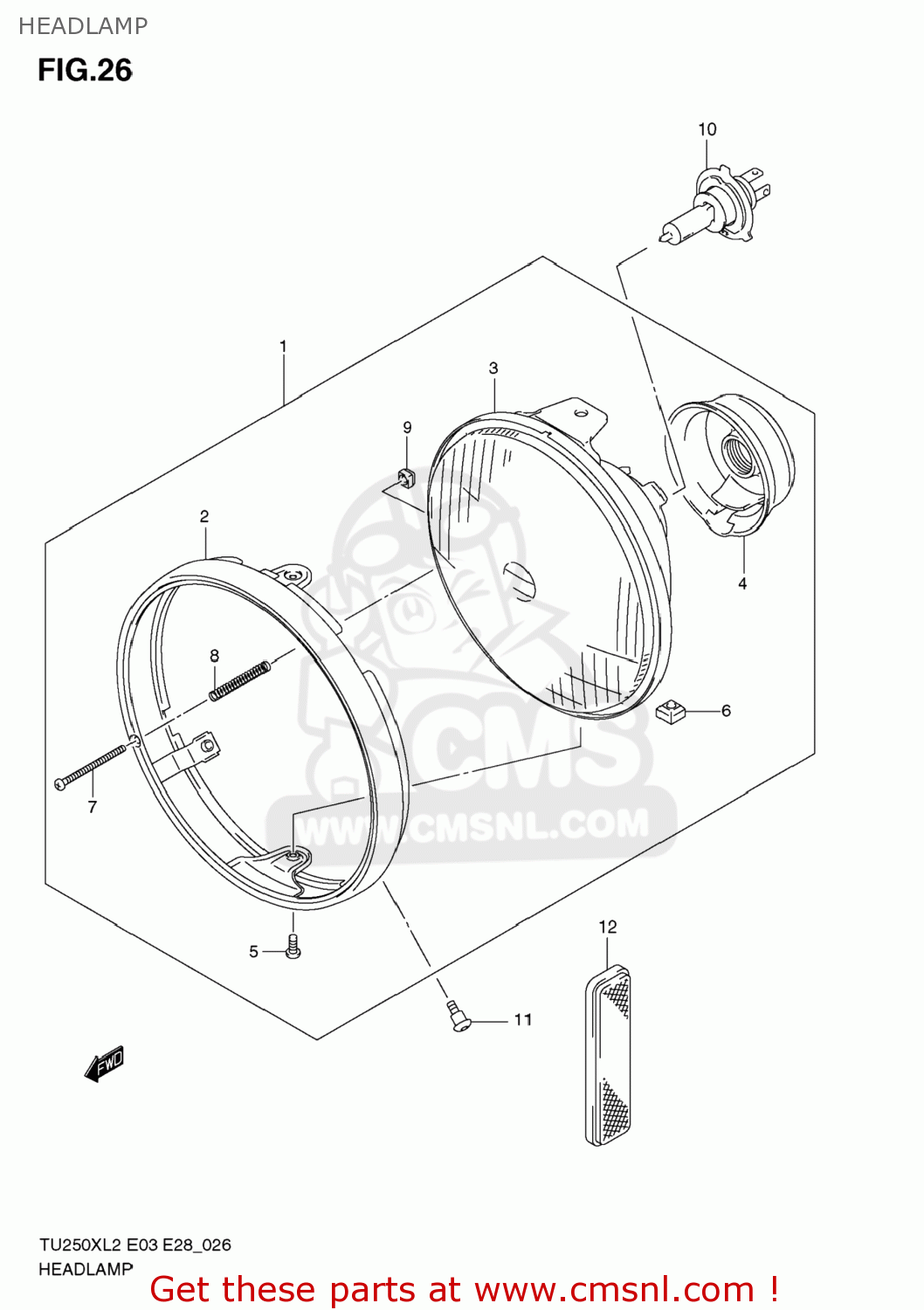

Headlamp diagram TU250X 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

HEADLAMP ASSY

€ 154.50

3511126G00
ref: 2

RIM

€ 43.50

3512126G00
ref: 3

UNIT,LAMP

€ 127.50

3517338A00
ref: 4

COVER,SOCKET

€ 12.50

021120510A
ref: 5

SCREW

€ 2.00

3513545900
ref: 6

NUT

€ 2.50

3515126G00
ref: 7

SCREW,ADJUSTING(4X45)

€ 4.00

3515435300
ref: 8

SPRING,HEAD LAMP ADJUSTER

€ 3.00

3515245600
ref: 9

NUT,HEADLAMP ADJUST

€ 3.00

0947112060
ref: 10

BULB(12V60/55W,H4)

€ 8.00

0913905081
ref: 11

SCREW(5X12)

€ 3.00

3595022H10
ref: 12

REFLEX REFLECTOR ASSY,FR SIDE

€ 17.50
