CRANK BALANCER

TU250X 2012 (L2) USA (E03)

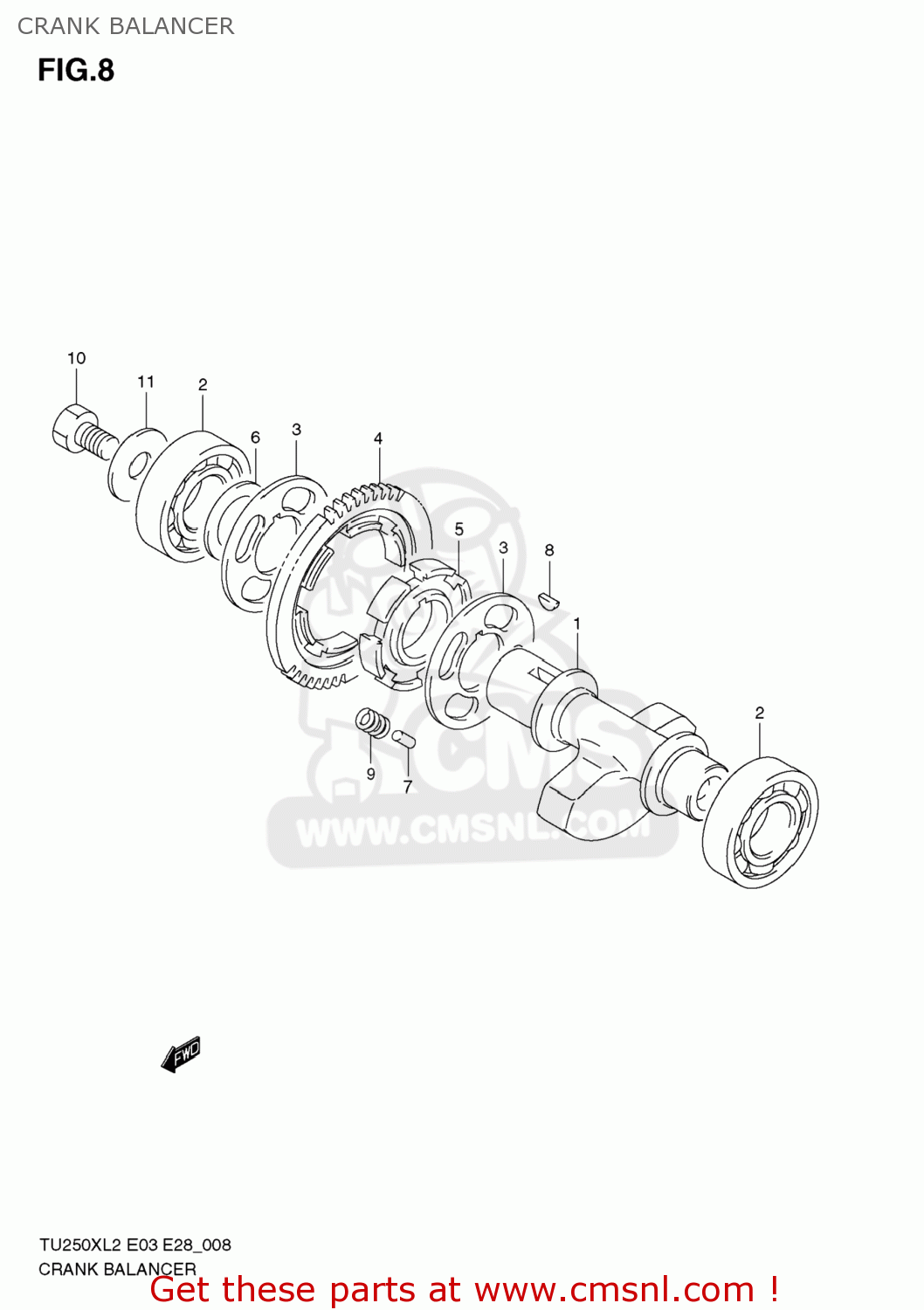

Crank balancer diagram TU250X 2012 (L2) USA (E03)

CRANK BALANCER TU250X 2012 (L2) USA (E03)

CRANK BALANCER TU250X 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1265138202
ref: 1

SHAFT,CRANK BALANCER

€ 101.50

2

0926225084
ref: 2

BEARING(25X62X17)

€ 29.00

3

1266338200
ref: 3

WASHER

€ 6.00

4

1266638200
ref: 4

GEAR,CRANK BAL DRIVEN(NT:46)

€ 128.00

5

1266938200
ref: 5

RACE,CRK BAL DRIVEN GR INNER

€ 37.00

6

0918125186
ref: 6

SHIM(25X36X0.5)

€ 4.50

7

0920204017
ref: 7

PIN(4.5X9.5)

€ 3.00

8

0942004008
ref: 8

KEY

€ 3.50

9

0944009015
ref: 9

SPRING

€ 25.50

10

015001216B
ref: 10

BOLT

€ 3.50

11

0916012076
ref: 11

WASHER(12X40X2.5)

€ 5.50
