HANDLE SWITCH

TU250X 2012 (L2) USA (E03)

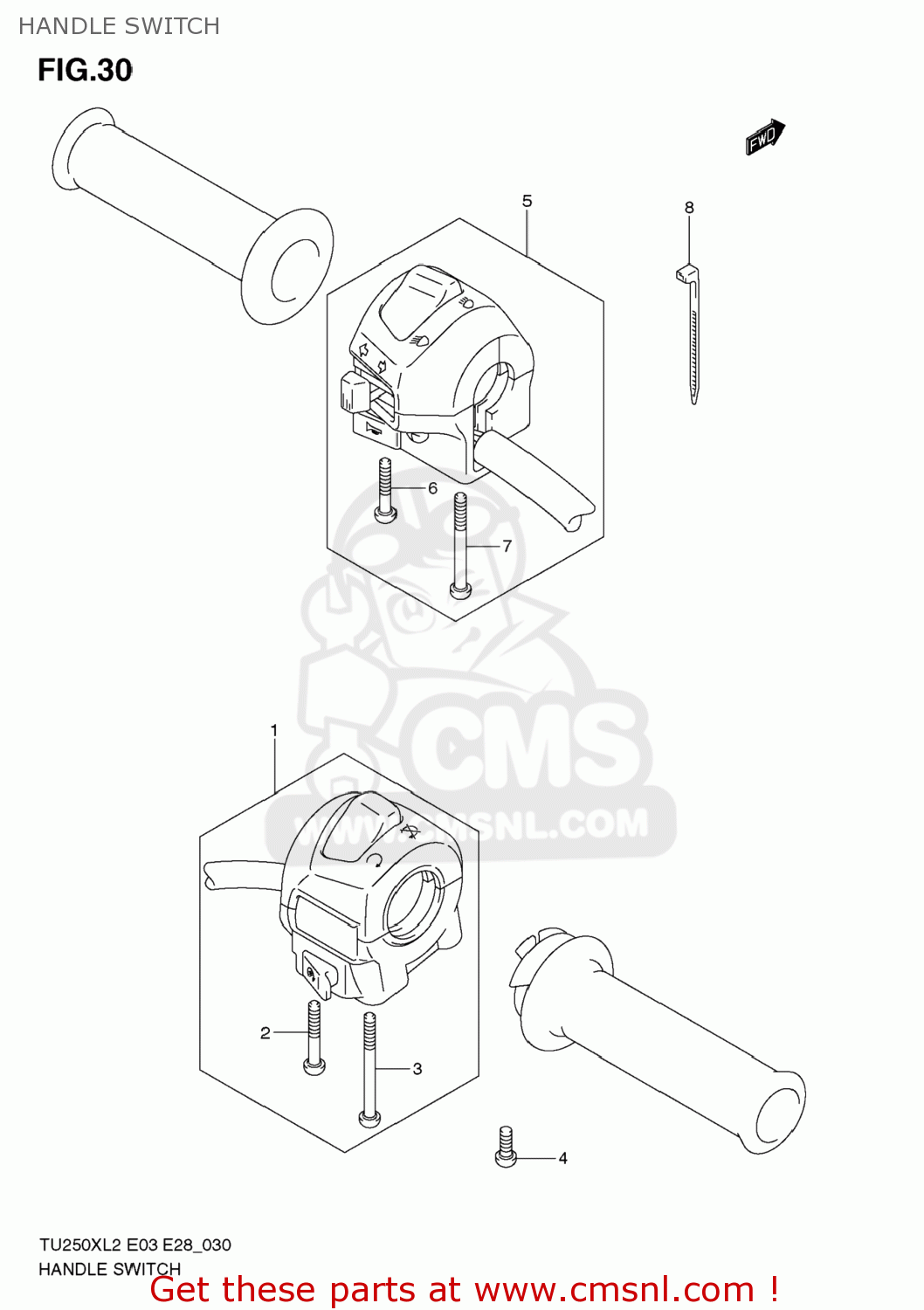

Handle switch diagram TU250X 2012 (L2) USA (E03)

HANDLE SWITCH TU250X 2012 (L2) USA (E03)

HANDLE SWITCH TU250X 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720025DA0
ref: 1

SWITCH ASSY,HA

€ 110.00

2

021120530B
ref: 2

SCREW

€ 1.50

3

021120550B
ref: 3

SCREW

€ 2.00

4

021120510A
ref: 4

SCREW

€ 2.00

5

3740025D50
ref: 5

SWITCH ASSY,HANDLE,L

€ 117.50

6

021120525B
ref: 6

SCREW

€ 1.50

7

021120545B
ref: 7

SCREW

€ 4.00

8

0940714407
ref: 8

CLAMP(L:145)

€ 4.00
