REAR FENDER

TU250X 2012 (L2) USA (E03)

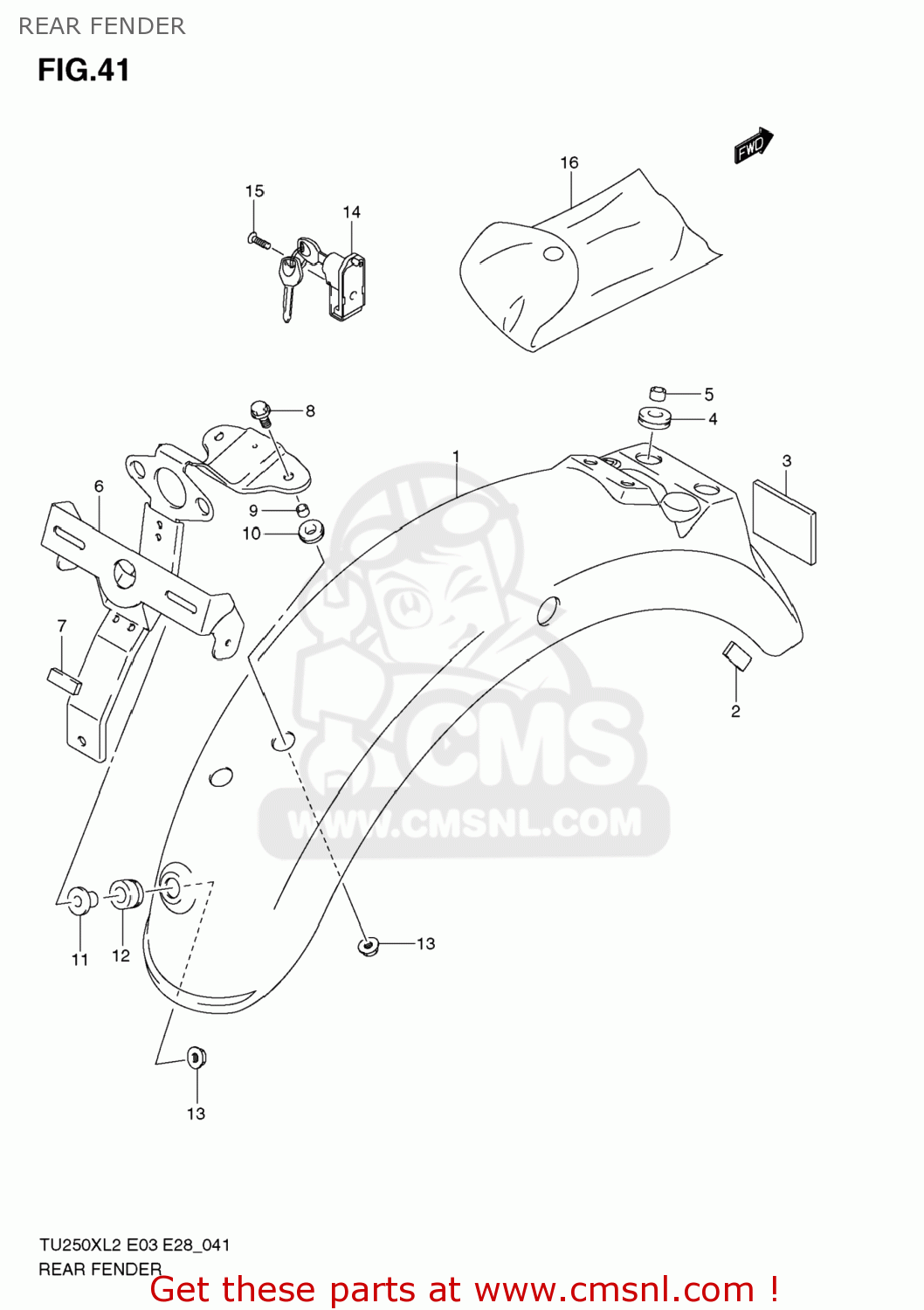

Rear fender diagram TU250X 2012 (L2) USA (E03)

REAR FENDER TU250X 2012 (L2) USA (E03)

REAR FENDER TU250X 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311126G30YAY
ref: 1

FENDER,RR

€ 191.00

2

6319126G00
ref: 2

CUSHION,RR FENDER

€ 3.00

3

6319226G00
ref: 3

CUSHION,RR FENDER

€ 5.50

4

0932013005
ref: 4

CUSHION

€ 4.50

5

0918008199
ref: 5

SPACER,8.5X14X9

€ 2.50

6

6321026G10291
ref: 6

BRACE,RR COMB & LIC

€ 70.00

7

6321126G00
ref: 7

CUSHION,LIC

€ 5.00

8

015500625B
ref: 8

BOLT

€ 2.50

9

0918006079
ref: 9

SPACER(6.5X10.5X15)

€ 2.50

10

0932010053
ref: 10

CUSHION

€ 2.50

11

0918006319
ref: 11

SPACER(6.5X10X11.6)

€ 3.50

12

0932010501
ref: 12

CUSHION

€ 5.50

13

083161006B
ref: 13

NUT

€ 2.50

14

9570042820
ref: 14

LOCK SET,HELMET

€ 64.00

15

021220620B
ref: 15

SCREW

€ 2.00

16

0980025850
ref: 16

TOOL SET

€ 14.50
