CRANKCASE
VL1500B INTRUDER 1998 (W) USA (E03)

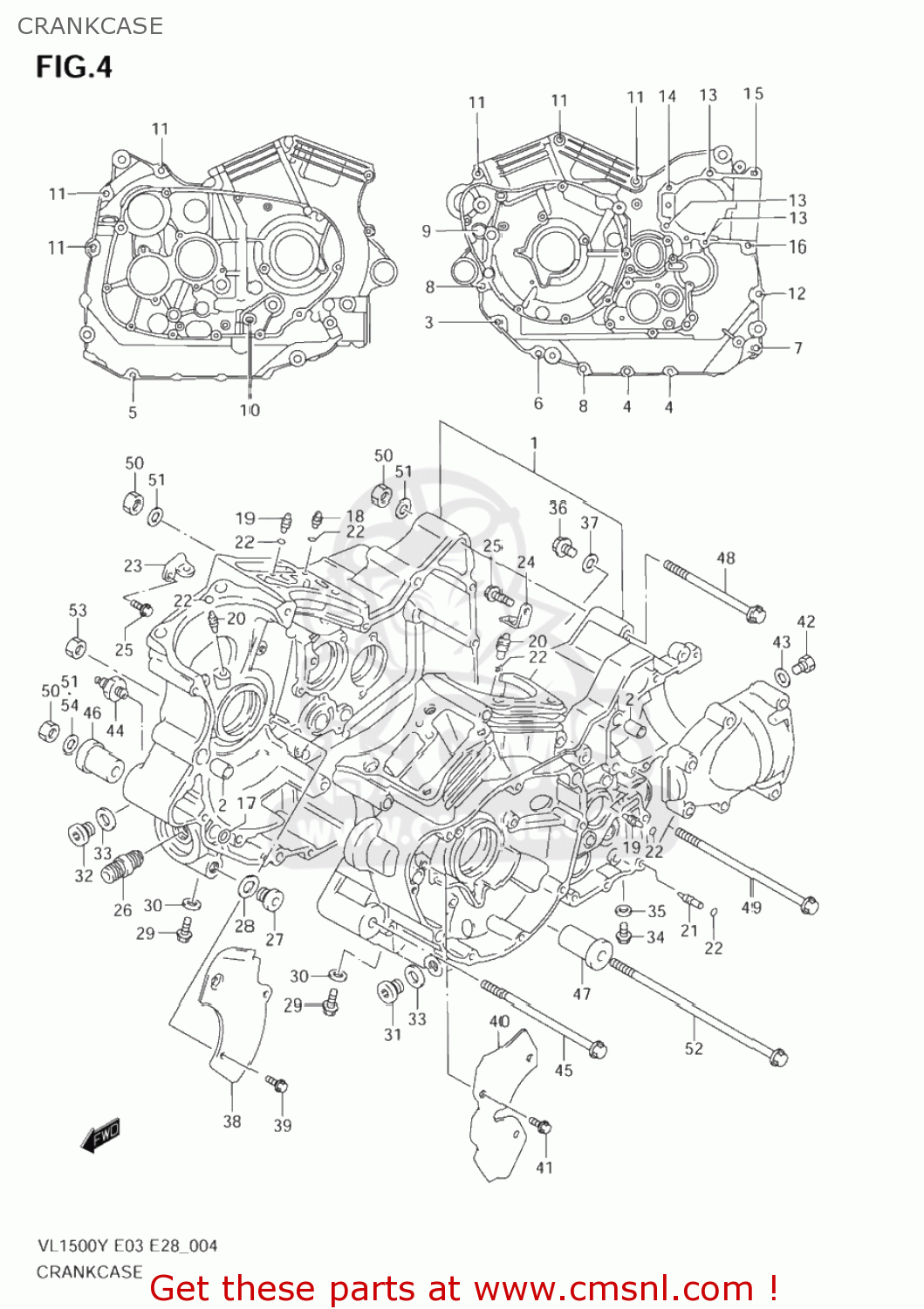

Crankcase diagram VL1500B INTRUDER 1998 (W) USA (E03)
CRANKCASE VL1500B INTRUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130010870
ref: 1
11300-10872
CRANKCASE SET
€ 2,774.50
2
0920611017
ref: 2
PIN(8.4X11X20)
€ 6.50
3
0155006553
ref: 3
01550-0655B
BOLT, HYDRAULIC UNIT NO.2
€ 2.00
4
0155006653
ref: 4
01550-0665A
BOLT
€ 2.50
5
0155006853
ref: 5
01550-0685B
BOLT
€ 2.50
6
0155008553
ref: 6
01550-0855A
BOLT
€ 3.00
7
0155008653
ref: 7
01550-0865A
BOLT
€ 3.00
8
0155008703
ref: 8
01550-0870B
BOLT (8X70)
€ 2.50
9
0155008903
ref: 9
01550-0890B
BOLT
€ 3.50
10
0910308098
ref: 10
BOLT(8X115)
€ 3.00
11
0910308164
ref: 11
BOLT(8X95)
€ 3.50
12
0155008803
ref: 12
01550-0880A
BOLT (8X80)
€ 4.00
13
0155008403
ref: 13
01550-0840A
BOLT
€ 3.50
14
0155008503
ref: 14
01550-0850B
BOLT
€ 2.50
15
0155008553
ref: 15
01550-0855A
BOLT
€ 3.00
16
0155008653
ref: 16
01550-0865A
BOLT
€ 3.00
17
0928012009
ref: 17
O RING(D:1.9,ID:12.6)
€ 2.50
18
0949344002
ref: 18
JET(2.2)
€ 12.00
19
0949328010
ref: 19
JET,AIR(14)
€ 10.50
20
0949380009
ref: 20
JET,PISTON COOLING(0.8)
€ 14.00
21
0949324011
ref: 21
JET,MISSION OIL(1.4)
€ 9.00
22
0928004004
ref: 22
O RING(D:1.2,ID:4)
€ 2.00
23
1643838B00
ref: 23
PLATE,PISTON JET FR
€ 1.50
24
1643938B00
ref: 24
PLATE,PISTON JET RR
€ 2.00
25
0155006123
ref: 25
01550-0612A
BOLT
€ 2.50
26
1659106B00
ref: 26
16591-06B01
UNION,OIL STAND
€ 6.00
27
0924816012
ref: 27
PLUG,16X8
€ 4.50
28
0916816002
ref: 28
GASKET(16X22X2) (NAS)
€ 2.00
29
0155008123
ref: 29
01550-0812A
BOLT
€ 3.50
30-1
0916808015
ref: 30-1
GASKET(8.2X14X1).6 (NAS)
€ 2.50
30-2
0916808029
ref: 30-2
GASKET(8.2X16X1) (NAS)
€ 2.50
31
0924814005
ref: 31
PLUG,14X12
€ 5.00
32
0924714027
ref: 32
09247-14044
PLUG(14X11.5)
€ 2.00
33
0916814002
ref: 33
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
34
0155006103
ref: 34
01550-0610A
BOLT
€ 2.50
35-1
0916806024
ref: 35-1
GASKET(5.8X11X1.2) (NAS)
€ 2.00
35-2
0916806023
ref: 35-2
GASKET(5.8X13X1.2) (NAS)
€ 2.00
36
0924712006
ref: 36
PLUG(12X10)
€ 2.50
37
0916812002
ref: 37
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
38
1152138B01
ref: 38
PLATE,OIL SEPARATOR
€ 4.00
39
0912506110
ref: 39
BOLT(6X12)
€ 2.50
40
1152210F00
ref: 40
PLATE,OIL SEPARATOR FR
€ 4.00
41
0154706123
ref: 41
01547-0612B
BOLT
€ 2.00
42
0924712106
ref: 42
PLUG,12X20
€ 2.50
43
0916812002
ref: 43
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
44
3782033D10
ref: 44
SWITCH ASSY,OIL PRESSURE
€ 29.00
45
0910310145
ref: 45
BOLT(10X205)
€ 13.00
46-1
1162110F00
ref: 46-1
SPACER,ENG MTG
€ 17.00
46-2
1162110F10
ref: 46-2
SPACER,ENG MTG
€ 16.50
47
1161020C00
ref: 47
SPACER,ENGINE MOUNT(L27)
€ 10.00
48
0910310119
ref: 48
BOLT(10X140)
€ 7.50
49
0910310278
ref: 49
BOLT(10X160)
€ 9.50
50
0831931103
ref: 50
08319-3110A
NUT
€ 3.00
51
0832201103
ref: 51
08322-0110A
WASHER
€ 2.50
52
0910310226
ref: 52
BOLT(10X265)
€ 12.00
53
0915910047
ref: 53
NUT
€ 7.50
54
0916010502
ref: 54
WASHER (10.5X20X3.2)
€ 2.50
54
0916010502
ref: 54
WASHER (10.5X20X3.2)
€ 2.50
