STAND
VL1500B INTRUDER 1998 (W) USA (E03)

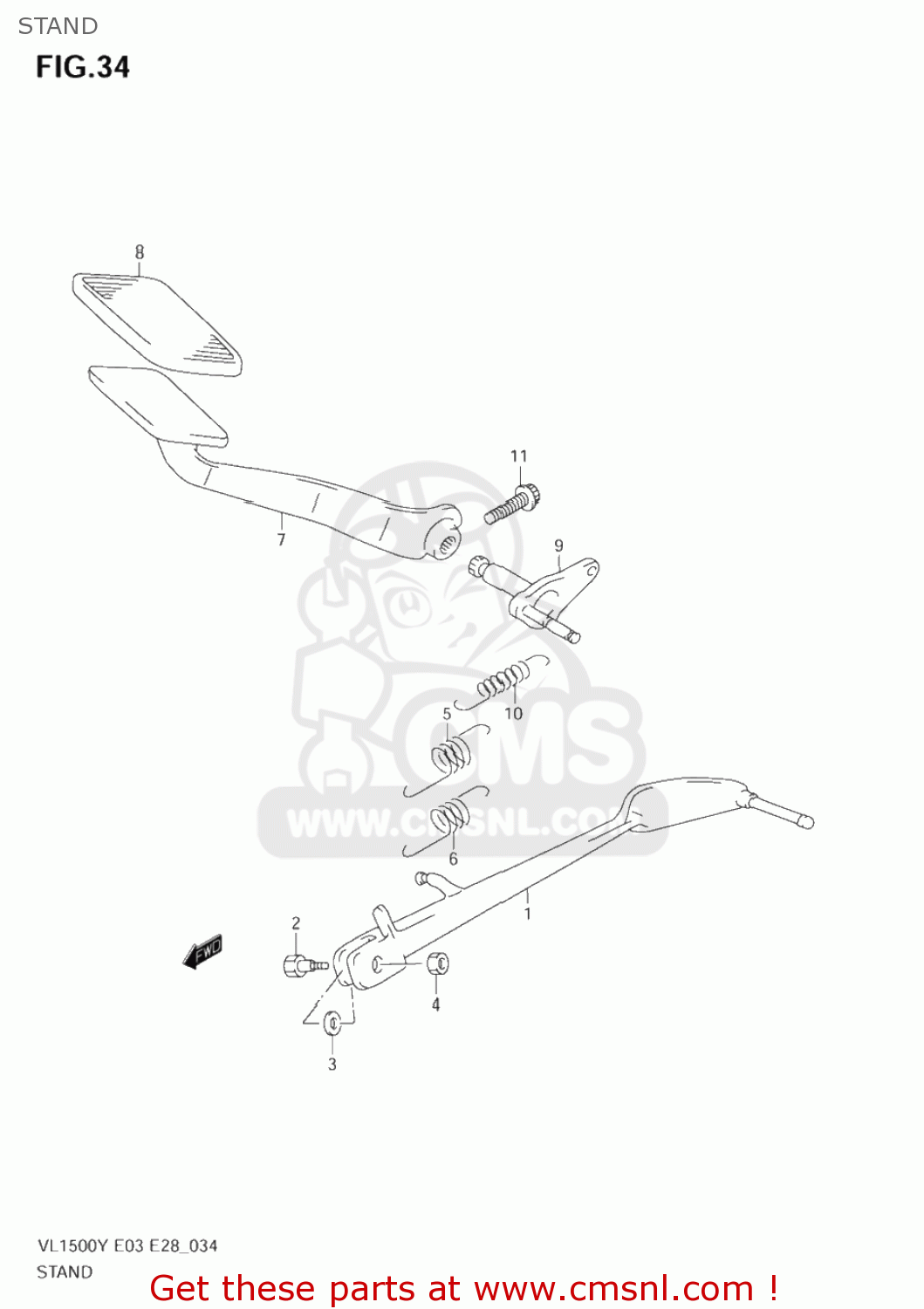

Stand diagram VL1500B INTRUDER 1998 (W) USA (E03)
STAND VL1500B INTRUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231010F01
ref: 1
42310-10F02
STAND,PROP
€ 222.00
2
0911110027
ref: 2
BOLT(10X34)
€ 3.50
3
0822112224
ref: 3
SHIM
€ 2.00
4
0831921103
ref: 4
08319-2110A
NUT
€ 2.00
5
0944314066
ref: 5
SPRING
€ 5.00
6
0944319012
ref: 6
SPRING
€ 5.50
7-1
4311010F00
ref: 7-1
43110-10F10
PEDAL,BRAKE
€ 111.00
7-2
4311010F10
ref: 7-2
PEDAL,BRAKE
€ 111.00
8
4315110F00
ref: 8
RUBBER,BRAKE PEDAL
€ 6.50
9
4312010F00
ref: 9
ARM,BRAKE ROD
€ 73.00
10
0944311030
ref: 10
SPRING
€ 4.00
11
0712006253
ref: 11
07120-0625A
BOLT,OIL PAN
€ 2.50
