GEAR SHIFTING
VL1500B INTRUDER 1998 (W) USA (E03)

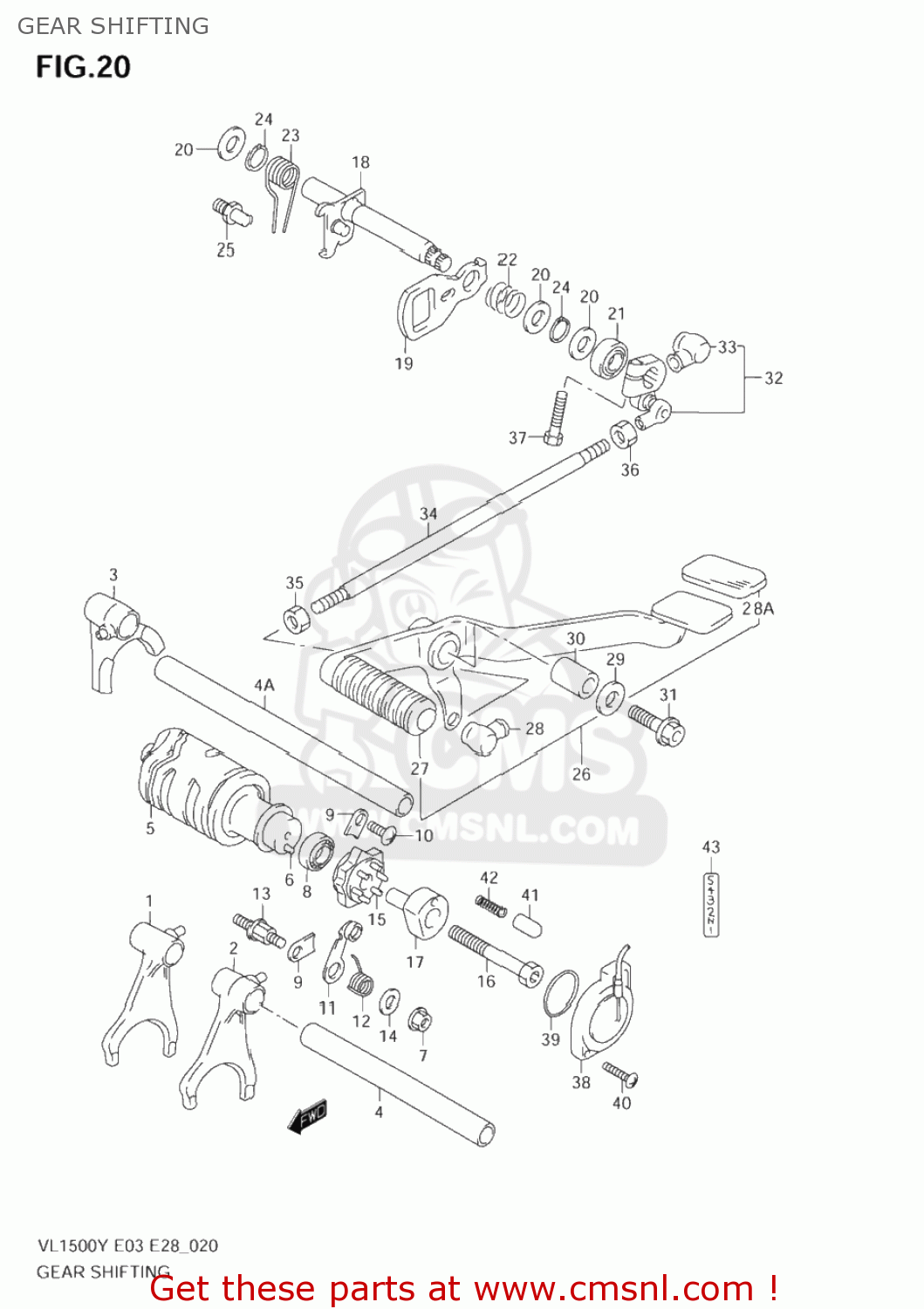

Gear shifting diagram VL1500B INTRUDER 1998 (W) USA (E03)
GEAR SHIFTING VL1500B INTRUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521138B11
ref: 1
FORK,GEAR SHIFT NO.1
€ 83.00
2
2522138B10
ref: 2
FORK,GEAR SHIFT NO.2
€ 83.00
3
2523110F00
ref: 3
25231-10F01
FORK,GEAR SHIFT NO.3
€ 83.50
4
2541110F10
ref: 4
SHAFT,GEAR SHIFT FORK NO.1
€ 28.00
4A
2541110F20
ref: 4A
SHAFT GEAR SHIFT FORK NO.2
€ 29.50
5-1
2531010F00
ref: 5-1
25310-10F01
CAM,GEAR SHIFT
€ 205.00
5-2
2531010F01
ref: 5-2
CAM,GEAR SHIFT
€ 205.00
6
0422104089
ref: 6
PIN
€ 1.50
7
0831610063
ref: 7
08316-1006B
NUT
€ 2.50
8
0926225006
ref: 8
BEARING(25X47X8)
€ 24.00
9
2474218A00
ref: 9
RETAINER,BEARING
€ 2.00
10
0211206123
ref: 10
02112-0612A
SCREW
€ 1.50
11
2535024B00
ref: 11
STOPPER,GEAR SHIFT CAM
€ 8.00
12
2535513E10
ref: 12
SPRING,SHIFT CAM STOPPER
€ 4.00
13
2535612C00
ref: 13
SUPPORT,CAM STOPPER ARM
€ 9.50
14
0821106181
ref: 14
WASHER
€ 2.00
15
2538010F00
ref: 15
25381-10F10
PLATE,GEAR SHIFT CAM
€ 67.50
16
0910606083
ref: 16
BOLT(6X50)
€ 5.00
17
2531238B01
ref: 17
HOLDER,NEUTRAL SWITCH
€ 21.00
18-1
2551010F00
ref: 18-1
25510-10F01
SHAFT,GEAR SHIFT
€ 85.00
18-2
2551010F01
ref: 18-2
SHAFT,GEAR SHIFT
€ 85.00
19
2551213E11
ref: 19
PLATE,GEAR SHIFT CAM DRIVE
€ 18.00
20
0918114167
ref: 20
SHIM(14X22X1)
€ 3.50
21
0928314006
ref: 21
SEAL,OIL(14X22X6)
€ 6.50
22
0944017009
ref: 22
SPRING
€ 1.50
23
0944420001
ref: 23
SPRING
€ 5.00
24
0833131146
ref: 24
08331-3114A
CIRCLIP
€ 2.00
25-1
2567101000
ref: 25-1
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
25-2
2567101011
ref: 25-2
STOPPER,GEAR SHIFT ARM
€ 3.00
26-1
2560010F01
ref: 26-1
25600-10F02
LEVER ASSEMBLY,GEAR SHIFTING
€ 99.00
26-2
2560010F02
ref: 26-2
LEVER ASSY,GEAR SHIFT
€ 99.00
27
2565210F00
ref: 27
RUBBER
€ 8.00
28
2552647000
ref: 28
COVER,DUST
€ 3.50
28A
4315101400
ref: 28A
RUBBER,BRAKE PEDAL
€ 4.00
29
0916010127
ref: 29
09160-10093
WASHER (10.5X24X2.3)
€ 2.00
30
2561710F00
ref: 30
SPSCER,GEAR SHIFT LEVER
€ 14.50
31
0910310300
ref: 31
BOLT(10X40)
€ 5.50
32-1
2552019C02
ref: 32-1
ARM,GEAR SHIFT LINK
€ 53.50
32-2
2552047000
ref: 32-2
ARM,GEAR SHIFT LINK
€ 53.50
33
2552647000
ref: 33
COVER,DUST
€ 3.50
34
2552517E11
ref: 34
ROD,GEAR SHIFT LINK
€ 19.00
35-1
0914006011
ref: 35-1
NUT
€ 1.50
35-2
0914006025
ref: 35-2
NUT
€ 2.00
36
0831000063
ref: 36
08310-0006A
NUT 6MM
€ 2.00
37
0150006203
ref: 37
01500-0620A
BOLT
€ 2.00
38
3772010F00
ref: 38
BASE ASSY,NEUTRAL SW TERMINAL
€ 0.00
39
0928035006
ref: 39
O RING(D:2.4,ID:35.5)
€ 4.00
40
0211275163
ref: 40
02112-7516A
SCREW
€ 2.50
41
0920904021
ref: 41
PIN
€ 9.00
42
0944002003
ref: 42
SPRING
€ 12.00
43
6839238B00
ref: 43
LABEL,GEAR SHIFT
€ 2.50
