STARTER CLUTCH
VL1500B INTRUDER 1998 (W) USA (E03)

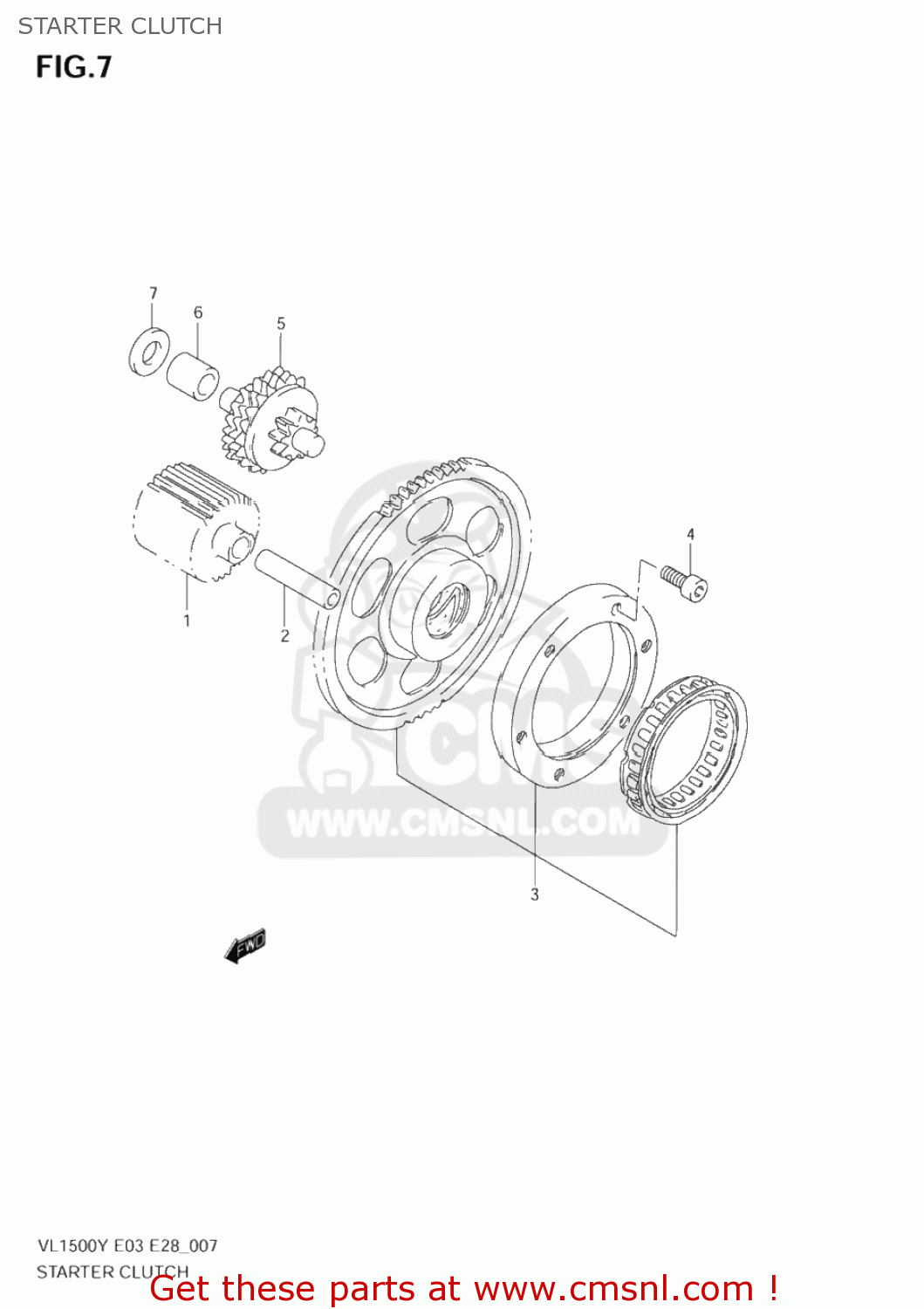

Starter clutch diagram VL1500B INTRUDER 1998 (W) USA (E03)
STARTER CLUTCH VL1500B INTRUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1261110F00
ref: 1
GEAR,STARTER IDLE NO.1
€ 56.00
2
0920611015
ref: 2
PIN(7X11X55)
€ 9.00
3
1260010860
ref: 3
CLUTCH SET,STARTER
€ 374.00
4
0713008163
ref: 4
07130-0816A
BOLT
€ 3.00
5
1260024B00
ref: 5
12600-24B01
LIMITER ASSEMBLY,STARTER IDLER GEAR
€ 223.00
5
1260024B00
ref: 5
12600-24B01
LIMITER ASSEMBLY,STARTER IDLER GEAR
€ 223.00
6
1261831D01
ref: 6
BUSH,LIMITER GEAR SHAFT
€ 17.50
7
0918110195
ref: 7
SHIM(10X20X1)
€ 2.00
