STEERING STEM (MODEL Y)

VL1500B INTRUDER 1998 (W) USA (E03)

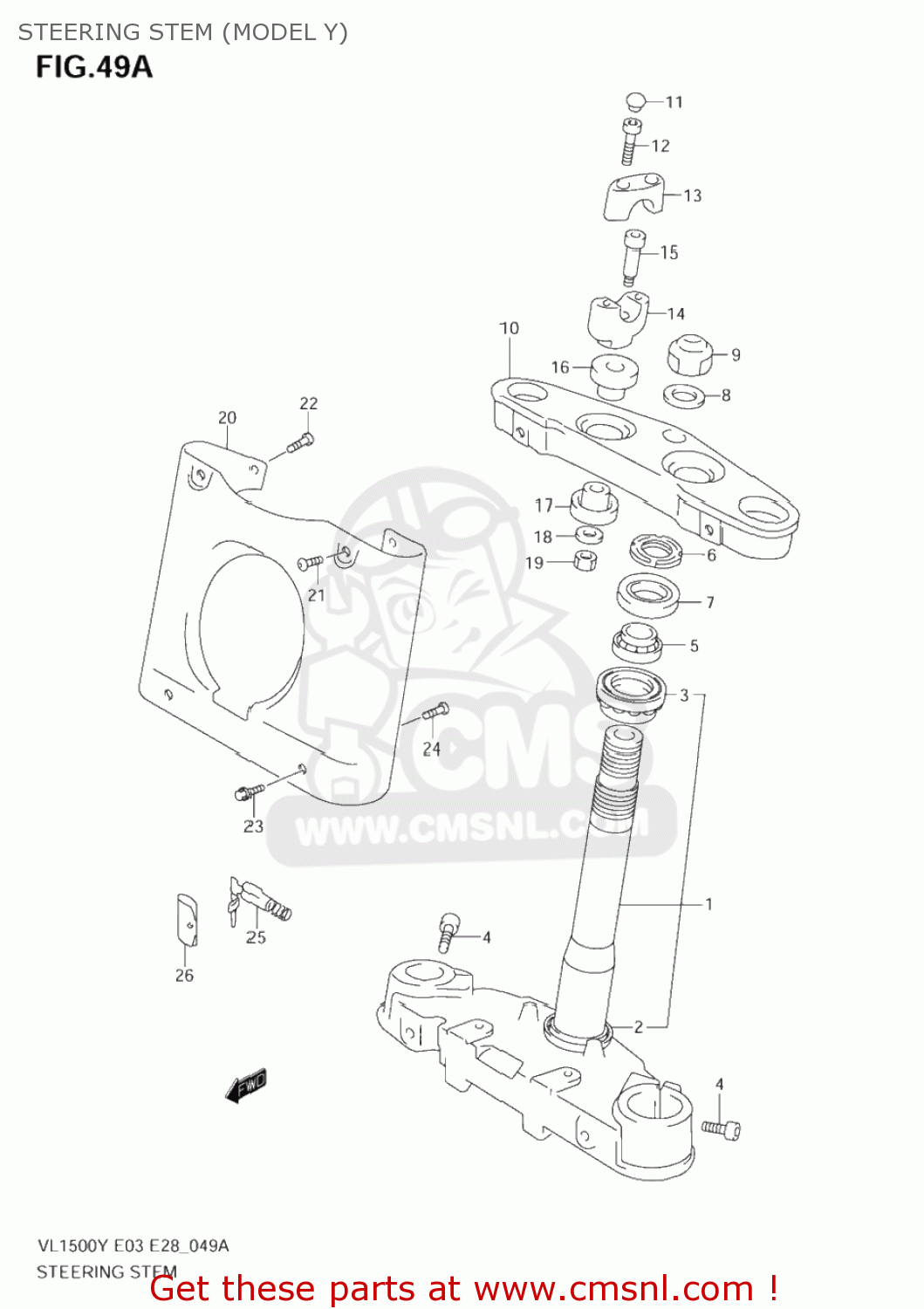

Steering stem (model y) diagram VL1500B INTRUDER 1998 (W) USA (E03)

STEERING STEM (MODEL Y) VL1500B INTRUDER 1998 (W) USA (E03)

STEERING STEM (MODEL Y) VL1500B INTRUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5141010F20
ref: 1

BRACKET,FR FORK UNDER

€ 682.00

2

5164412C00
ref: 2

SEAL,STEERING LWR

€ 5.50

3

0926730010
ref: 3

BEARING(30X55X17)

€ 46.50

4

5114710F00
ref: 4

BOLT,STEM

€ 4.50

5

0926725009
ref: 5

BEARING(25X47X15)

€ 40.00

6

5163128000
ref: 6

NUT,STEERING STEM(25X44X10)

€ 12.50

7

5164340502
ref: 7

DUST SEAL,STEERING UPR

€ 8.00

8

5135624B01
ref: 8

WASHER(22.5X32X1.6)

€ 3.00

9

5135324B00
ref: 9

NUT,CAP

€ 21.50

10

5131110F00
ref: 10

HEAD,STEERING STEM

€ 372.50

11

0925006009
ref: 11

CAP(OD:14.5)

€ 3.50

12

0713008307
ref: 12

BOLT

€ 4.50

13

5621138A01
ref: 13

HOLDER,HANDLE UPR

€ 45.00

14

5622110F00
ref: 14

HOLDER,HANDLE UNDER

€ 57.00

15

5122610F00
ref: 15

BOLT

€ 40.50

16

5624038A42
ref: 16

DAMPER,RUBBER

€ 31.50

17

5624239A12
ref: 17

CUSHION,RUBBER UNDER

€ 42.50

18

5135438A40
ref: 18

WASHER

€ 9.00

19

0915910027
ref: 19

NUT

€ 3.00

20

5151510F00
ref: 20

COVER,FR FORK UPR

€ 422.00

21

0913908007
ref: 21

SCREW(8X16)

€ 4.50

22

0913906027
ref: 22

SCREW(6X12)

€ 3.00

23

0155008163
ref: 23
01550-0816A

BOLT

€ 3.00

24

0913906027
ref: 24

SCREW(6X12)

€ 3.00

25

5190038810
ref: 25

LOCK SET,STEERING

€ 168.50

26

5192048E00
ref: 26

CASE,STEERING KEY

€ 13.00
