CYLINDER HEAD (REAR)
VL1500B INTRUDER 1998 (W) USA (E03)

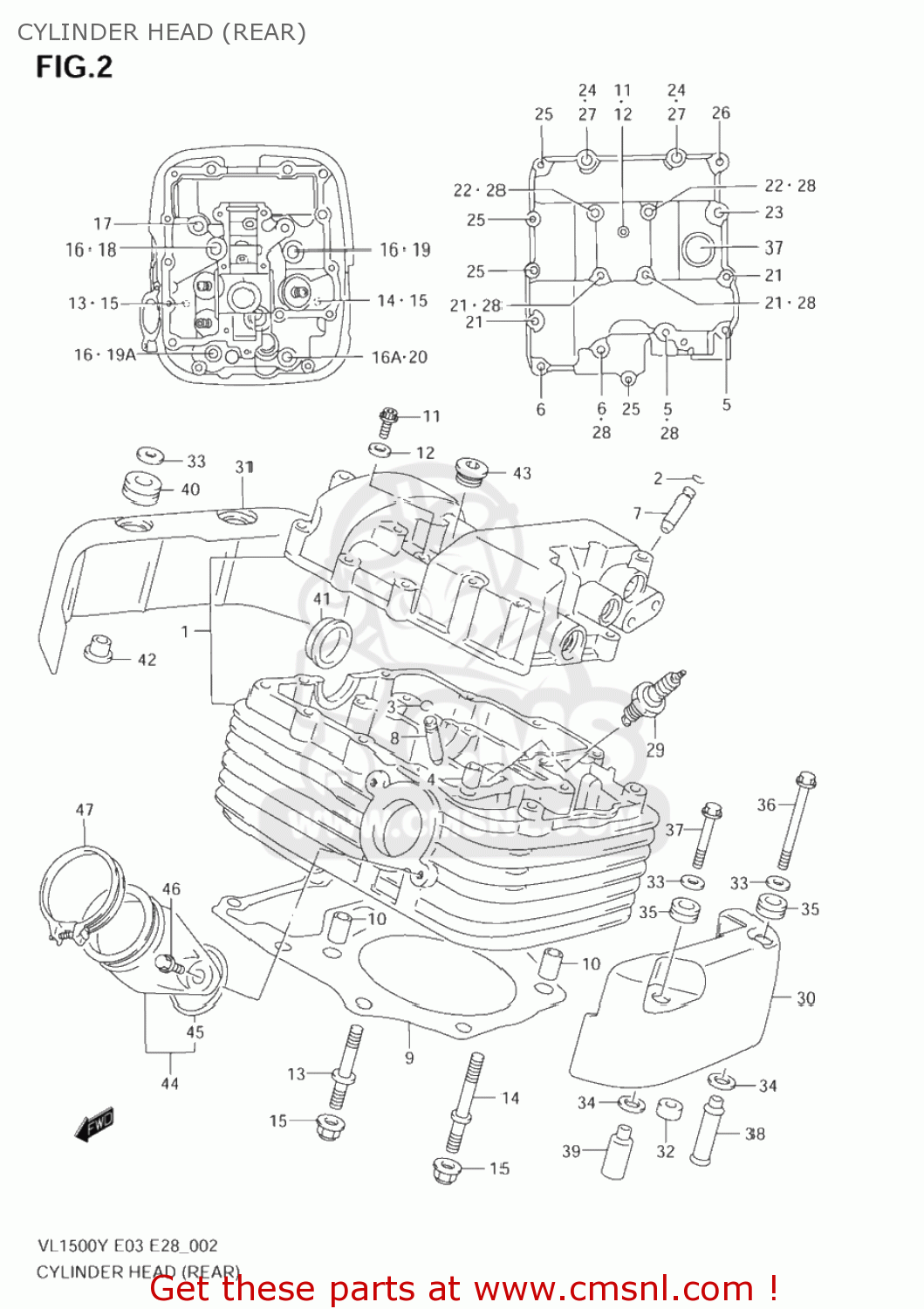

Cylinder head (rear) diagram VL1500B INTRUDER 1998 (W) USA (E03)
CYLINDER HEAD (REAR) VL1500B INTRUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110310F10
ref: 1
HEAD ASSY,CYLINDER RR
€ 1,311.50
2
0938110004
ref: 2
RING,SNAP
€ 1.50
3
0938110003
ref: 3
RING,SNAP
€ 2.50
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
0910306064
ref: 5
BOLT(6X60)
€ 2.50
6
0910306102
ref: 6
BOLT(6X55)
€ 2.50
7
1111538B70
ref: 7
GUIDE,INTAKE VALVE
€ 18.50
8
1111545740
ref: 8
GUIDE,INTAKE VALVE
€ 25.50
9
1114210F00
ref: 9
GASKET,CYLINDER HEAD RR (NAS)
€ 48.50
10
0421113189
ref: 10
PIN
€ 2.50
11
0712006123
ref: 11
07120-0612B
BOLT
€ 3.50
12
0916806018
ref: 12
GASKET(6.2X13X1.2) (NAS)
€ 2.00
13
0910808142
ref: 13
BOLT,STUD
€ 3.00
14
0910808205
ref: 14
BOLT,STUD
€ 10.50
15-1
0831610087
ref: 15-1
NUT
€ 2.50
15-2
0831610083
ref: 15-2
08316-1008B
NUT
€ 3.00
16
0916010039
ref: 16
WASHER(10.5X22X2.3)
€ 2.50
16A
0916810017
ref: 16A
GASKET(10.5X22X2) (NAS)
€ 3.50
17
0910308181
ref: 17
BOLT(8X57)
€ 5.00
18
0910310178
ref: 18
BOLT(10X180)
€ 12.50
19
0910310179
ref: 19
BOLT(10X190)
€ 12.50
19A
0910310180
ref: 19A
BOLT(10X200)
€ 10.50
20
0910310181
ref: 20
BOLT(10X215)
€ 17.50
21
0910306101
ref: 21
BOLT(6X50)
€ 2.00
22
0910306112
ref: 22
BOLT(6X45)
€ 2.00
23
0910308086
ref: 23
BOLT(8X130)
€ 4.50
24
0910308213
ref: 24
BOLT(8X268)
€ 22.50
25
0155006303
ref: 25
01550-0630A
BOLT
€ 2.50
26
0155006353
ref: 26
01550-0635A
BOLT
€ 2.50
27
0916008130
ref: 27
WASHER(8.5X24X1.6)
€ 2.00
28
0916806023
ref: 28
GASKET(5.8X13X1.2) (NAS)
€ 2.00
29-1
0948200354
ref: 29-1
PLUG,SPARK(DPR7EA-9)
€ 4.00
29-2
0948200355
ref: 29-2
09482-00354
SPARK PLUG X22E
€ 4.00
29-3
0948200334
ref: 29-3
PLUG,SPARK(DPR8EA-9)
€ 4.00
29-4
0948200335
ref: 29-4
PLUG,SPARK(X24EPR-U9)
€ 4.00
29-5
0948200330
ref: 29-5
PLUG,SPARK(DPR9EA-9)
€ 4.00
29-6
0948200331
ref: 29-6
PLUG,SPARK(X27EPR-U9)
€ 4.00
30
1117310F00
ref: 30
CAP,CYLINDER HEAD COVER RR,L
€ 119.00
31
1117410F00
ref: 31
CAP,CYLINDER HEAD COVER RR,R
€ 115.50
32
1127324B00
ref: 32
CUSHION,R CAP
€ 4.00
33
0916006084
ref: 33
WASHER(6.5X18X1.6)
€ 2.00
34
0916009016
ref: 34
WASHER(9.5X20X1)
€ 2.00
35
0932009016
ref: 35
CUSHION
€ 2.50
36
0154706707
ref: 36
BOLT
€ 2.50
37
0154706507
ref: 37
BOLT
€ 2.50
38
1117910F00
ref: 38
SPACER,CYL HEAD COVER CAP NO.1
€ 14.50
39
1117910F10
ref: 39
SPACER,CYL HEAD COVER CAP NO.2
€ 8.00
40
0932013015
ref: 40
CUSHION
€ 3.00
41
0924130008
ref: 41
PLUG(OD:30)
€ 7.00
42
0930108007
ref: 42
BUSH
€ 4.00
43
0924822004
ref: 43
PLUG,22X11
€ 9.50
44
1310210F00
ref: 44
PIPE ASSY,INTAKE RR
€ 96.00
45
0928041007
ref: 45
O RING(D:1.9,ID:40.7)
€ 10.50
46
0911906092
ref: 46
BOLT(6X16)
€ 2.00
47
0940252208
ref: 47
CLAMP
€ 5.50
