FRONT WHEEL (MODEL K2/K3/K4)

VL1500B INTRUDER 1998 (W) USA (E03)

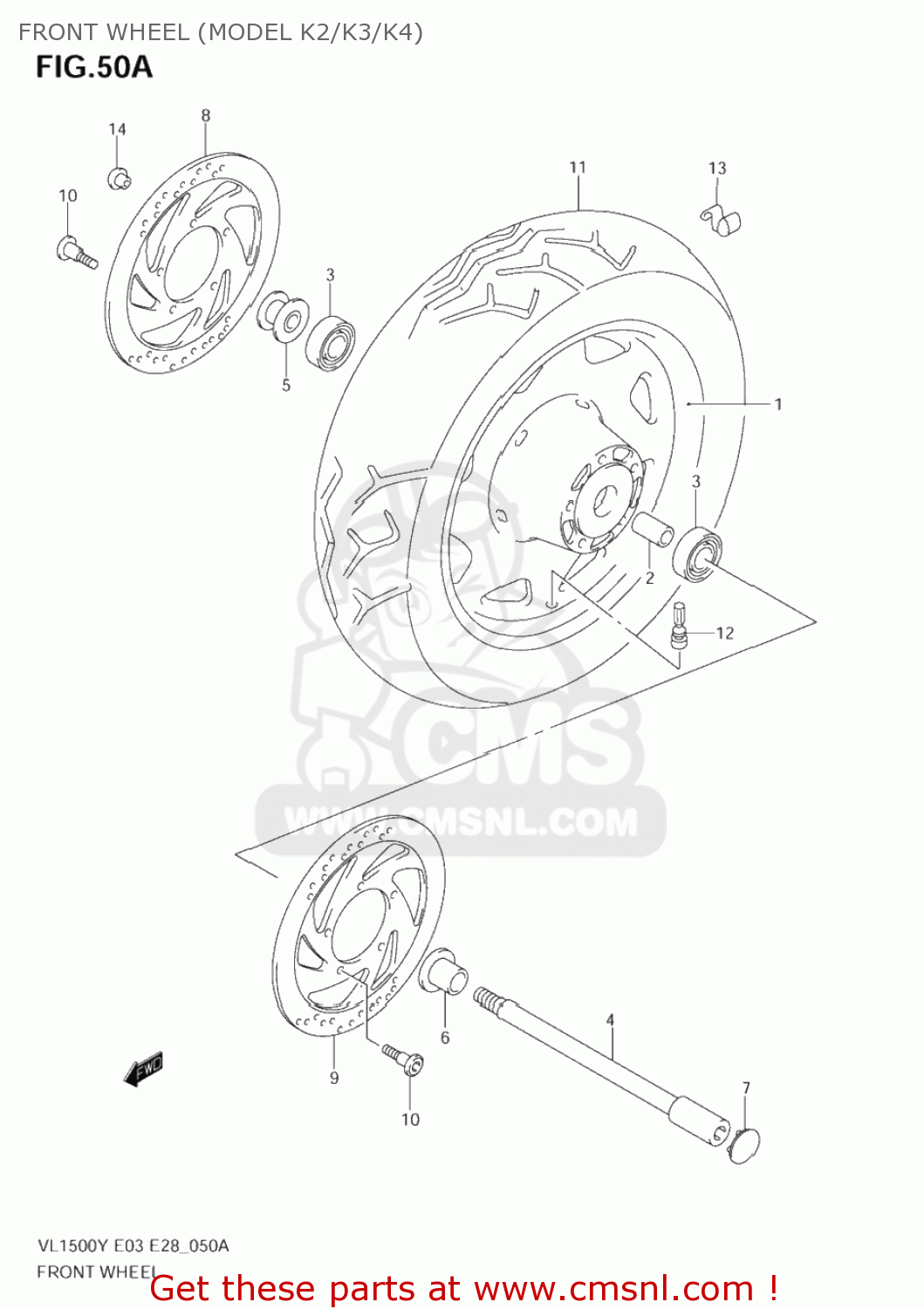

Front wheel (model k2/k3/k4) diagram VL1500B INTRUDER 1998 (W) USA (E03)

FRONT WHEEL (MODEL K2/K3/K4) VL1500B INTRUDER 1998 (W) USA (E03)

FRONT WHEEL (MODEL K2/K3/K4) VL1500B INTRUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5411110F20YAA
ref: 1

WHEEL,FR(16XMT3.50)

€ 945.00

1

5411110F20YAA
ref: 1

WHEEL,FR(16XMT3.50)

€ 945.00

2

5473110F00
ref: 2

SPACER,FR HUB BEARING

€ 12.00

3

0813362037
ref: 3

BEARING

€ 24.50

4

5471110F01
ref: 4

AXLE,FR

€ 94.00

5

5474010F00
ref: 5

SPACER,FR AXLE,R

€ 24.50

6

5474032C00
ref: 6

SPACER,FR AXLE,R

€ 12.00

7

5479238B00
ref: 7

CAP,FR AXLE

€ 97.00

8

5921110F10
ref: 8

DISC,FR BRAKE,R

€ 213.50

9

5922110F10
ref: 9

DISC,FR BRAKE,L

€ 213.50

10

0910608148
ref: 10

BOLT(8X33)

€ 6.00

11

5511010F00
ref: 11
55110-10F01

TIRE,FRONT 150/80-16.7

€ 619.50

11

5511010F00
ref: 11
55110-10F01

TIRE,FRONT 150/80-16.7

€ 619.50

12

4313024A00
ref: 12

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

13-1

4323282000
ref: 13-1
43222-73H10

WEIGHT,WHEEL BALANCE 10G

€ 4.00

13-2

4323482000
ref: 13-2
43224-73H10

WEIGHT,WHEEL BALANCE 20G

€ 5.00

13-3

4323682000
ref: 13-3
43226-73H10

WEIGHT,BAL. 30

€ 6.00

14

5479138B01
ref: 14

CAP,FR AXLE

€ 4.50
