FRONT MASTER CYLINDER (MODEL W/X/Y/K1)

VL1500B INTRUDER 1998 (W) USA (E03)

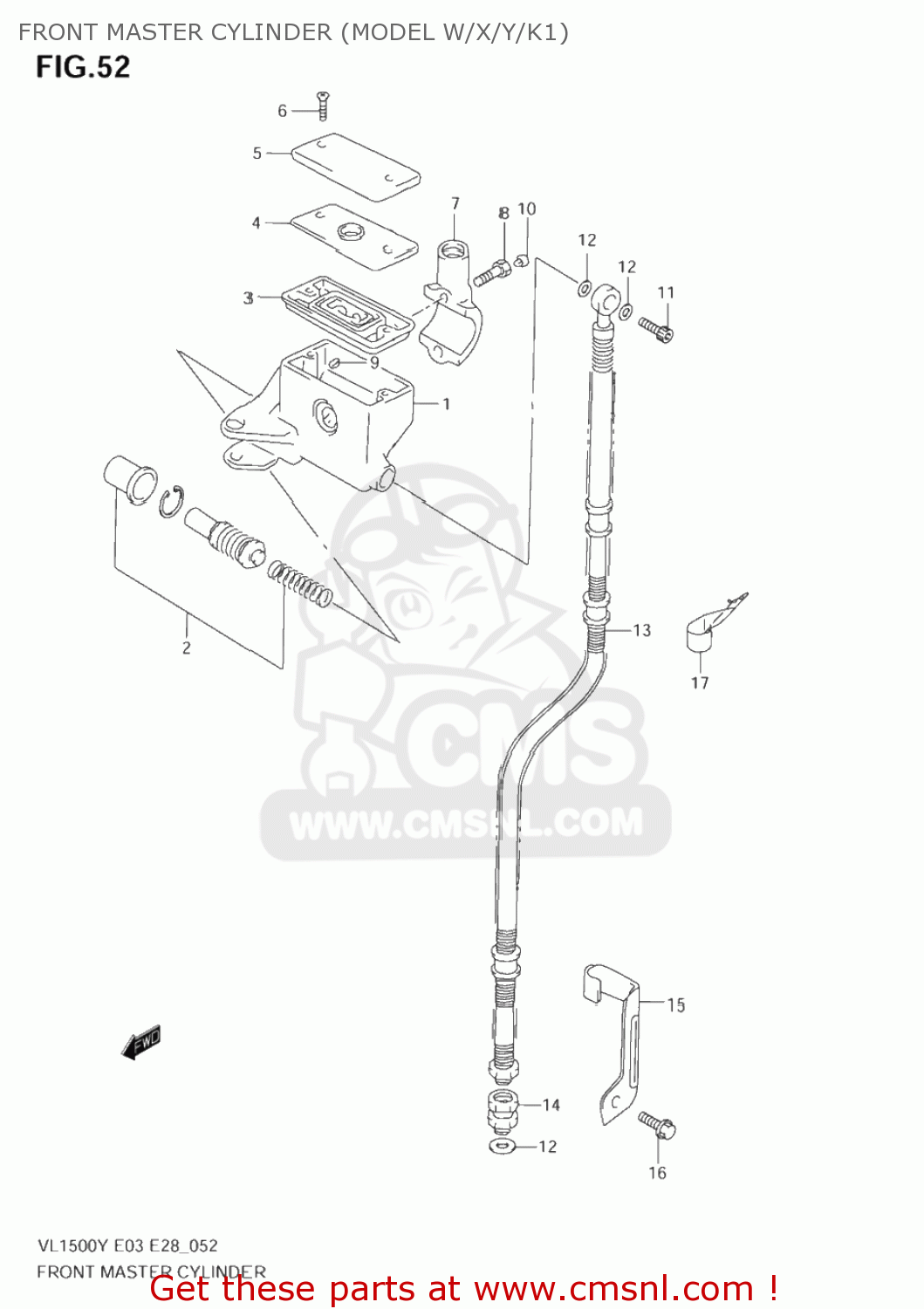

Front master cylinder (model w/x/y/k1) diagram VL1500B INTRUDER 1998 (W) USA (E03)

FRONT MASTER CYLINDER (MODEL W/X/Y/K1) VL1500B INTRUDER 1998 (W) USA (E03)

FRONT MASTER CYLINDER (MODEL W/X/Y/K1) VL1500B INTRUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5960010F00
ref: 1

CYLINDER ASSY,FR MASTER

€ 259.50

2

5960004810
ref: 2

PISTON/CUP SET

€ 37.50

3

5966749460
ref: 3

5966749460

4

5966841C00
ref: 4

PLATE,DIAPHRAGM

€ 8.00

5

5966910F00
ref: 5

CAP

€ 59.50

6

0212204127
ref: 6

SCREW

€ 2.00

7

5967138A00
ref: 7

HOLDER

€ 37.50

8

0713006207
ref: 8

BOLT

€ 3.50

9

5966448B00
ref: 9

PROTECTOR

€ 8.00

10

0925005008
ref: 10

CAP(OD:10)

€ 5.00

11

0936010042
ref: 11
09360-10062

BOLT UNION

€ 5.00

12

0916110009
ref: 12

WASHER(10X15X1.5)

€ 2.00

13-1

5948010F00
ref: 13-1

HOSE,FR BRAKE

€ 144.50

13-2

5948010F10
ref: 13-2

HOSE,FR BRAKE

€ 136.50

14-1

5929043500
ref: 14-1

ADAPTER,BRAKE HOSE

€ 34.50

14-2

5929014501
ref: 14-2

ADAPTOR,BRAKE HOSE

€ 18.50

15

5926810F00
ref: 15

CLAMP,FR BRAKE HOSE

€ 10.00

16

0155006127
ref: 16

BOLT

€ 2.50

17

5926610F00
ref: 17

CLAMP,FR BRAKE HOSE UPR

€ 6.00
