MAGNETO
VL1500B INTRUDER 1998 (W) USA (E03)

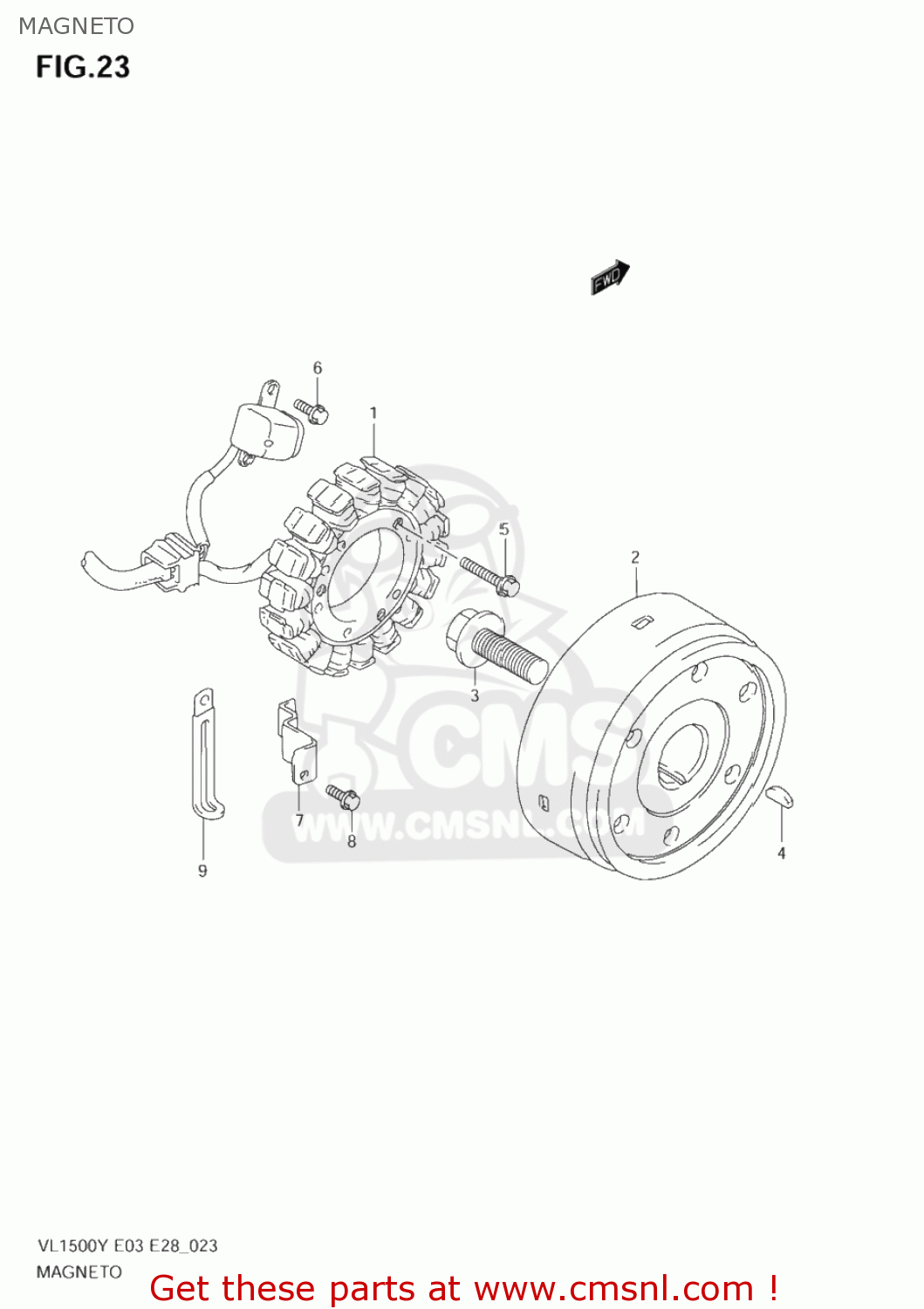

Magneto diagram VL1500B INTRUDER 1998 (W) USA (E03)
MAGNETO VL1500B INTRUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3210110F00
ref: 1-1
32101-10F01
STATOR ASSEMBLY,MAGNETO
€ 666.00
1-2
3210110F01
ref: 1-2
STARTER ASSY
€ 666.00
2
3210210F00
ref: 2
ROTOR ASSY
€ 556.00
3
0910314001
ref: 3
BOLT(14X43)
€ 7.00
4
0942005007
ref: 4
KEY
€ 3.00
5
0154706303
ref: 5
01547-0630B
BOLT,G/S SWITC
€ 3.00
6
0154705103
ref: 6
01547-0510B
BOLT
€ 2.50
7
3237145C00
ref: 7
CLAMP,MAGNETO LEAD WIRE
€ 3.00
8
0154705103
ref: 8
01547-0510B
BOLT
€ 2.50
9-1
0940406429
ref: 9-1
CLAMP(L:45)
€ 2.50
9-2
0940408206
ref: 9-2
CLAMP(L:65 T:0.8)
€ 3.50
