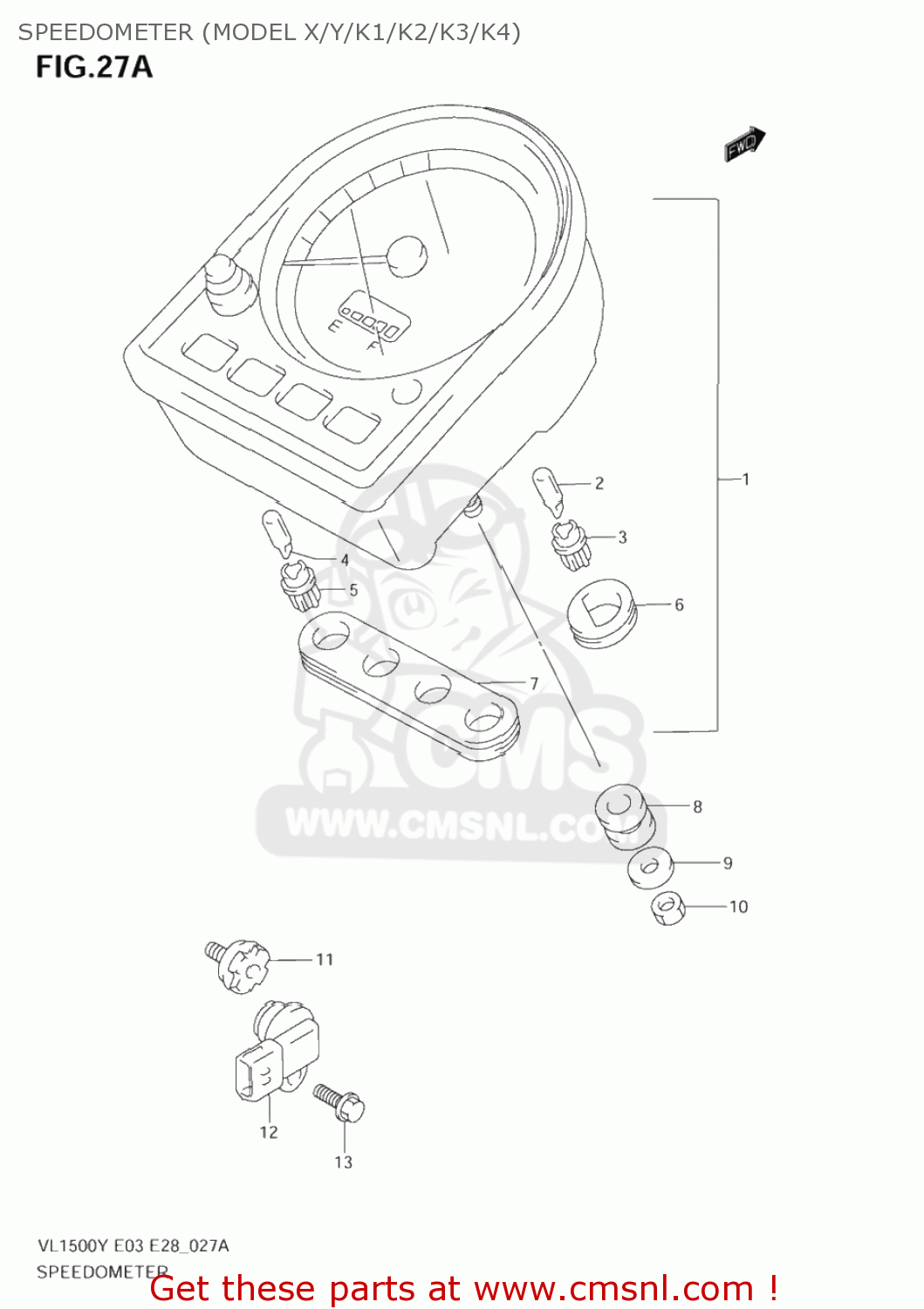

SPEEDOMETER (MODEL X/Y/K1/K2/K3/K4)

VL1500B INTRUDER 1998 (W) USA (E03)

Speedometer (model x/y/k1/k2/k3/k4) diagram VL1500B INTRUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3410010F80
ref: 1-1

SPEEDOMETER ASSY

€ 1,020.50

1-2

3410010F70
ref: 1-2

SPEEDOMETER ASSY

€ 1,183.00

0947112189
ref: 2

BULB(14V,0.84W)

€ 4.50

3417271E70
ref: 3

SOCKET,BULB

€ 7.50

0947112100
ref: 4

BULB(12V1.7W,WB372,T7)

€ 2.00

3417319D00
ref: 5

SOCKET

€ 17.00

3419802F00
ref: 6

BLIND,CAP

€ 12.00

3419810F00
ref: 7

BLIND,CAP

€ 10.00

3499645720
ref: 8
34189-32B00

CUSHION,METER

€ 5.00

0916005037
ref: 9

WASHER(5.5X16X1.2)

€ 1.50

0831000053
ref: 10
08310-0005A

NUT

€ 2.50

3498110F00
ref: 11

ROTOR,SPEED

€ 22.50

3499010F00
ref: 12

SENSOR,SPEED

€ 158.00

0910606073
ref: 13

BOLT(6X16)

€ 2.50
