VL1500B INTRUDER 1998 (W) USA (E03)

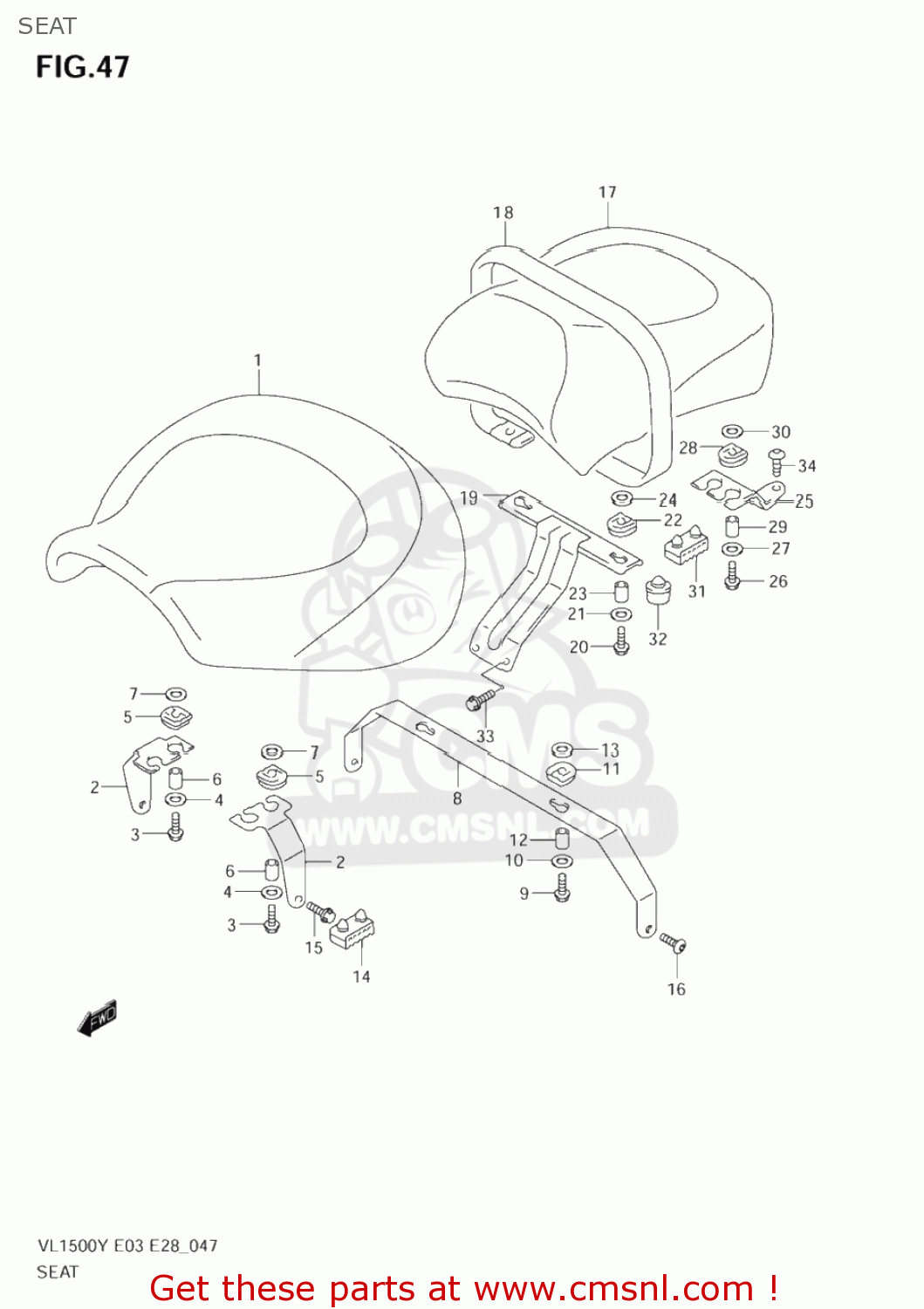

Seat diagram VL1500B INTRUDER 1998 (W) USA (E03)
SEAT VL1500B INTRUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510010F00R22
ref: 1-1
SEAT ASSY(BLACK)
€ 403.00
1-2
4510010F10P8Z
ref: 1-2
SEAT ASSY
€ 417.50
2
4511510F00
ref: 2
BRACKET,SEAT FR
€ 10.50
3
0155006253
ref: 3
01550-0625A
BOLT
€ 2.50
4
0916006066
ref: 4
WASHER(6.5X20X1.6)
€ 2.00
5
4521506B00
ref: 5
CUSHION
€ 4.50
6
4521606B00
ref: 6
SPACER
€ 2.50
7
0916006066
ref: 7
WASHER(6.5X20X1.6)
€ 2.00
8
4511610F00
ref: 8
BRACKET,SEAT RR
€ 16.00
9
0155006253
ref: 9
01550-0625A
BOLT
€ 2.50
10
0916006066
ref: 10
WASHER(6.5X20X1.6)
€ 2.00
11
4521506B00
ref: 11
CUSHION
€ 4.50
12
4521606B00
ref: 12
SPACER
€ 2.50
13
0916006066
ref: 13
WASHER(6.5X20X1.6)
€ 2.00
14
4514931300
ref: 14
CUSHION,SEAT(40X20X15)
€ 2.00
15
0155006163
ref: 15
01550-0616A
BOLT
€ 2.50
16
0910608140
ref: 16
BOLT(8X16)
€ 6.00
17-1
4530010F00R22
ref: 17-1
SEAT ASSEMBLY,PILLION (BLACK)
€ 467.00
17-2
4530010F10FW5
ref: 17-2
SEAT ASSY,PILLION
€ 397.50
18
4518010F00R22
ref: 18
BAND ASSY,PILLION SEAT(BLACK)
€ 29.50
19
4531510F00
ref: 19
BRACKET,SEAT FR
€ 26.00
20
0155006303
ref: 20
01550-0630A
BOLT
€ 2.50
21
0916006066
ref: 21
WASHER(6.5X20X1.6)
€ 2.00
22
4521506B00
ref: 22
CUSHION
€ 4.50
23
4521606B00
ref: 23
SPACER
€ 2.50
24
0916006066
ref: 24
WASHER(6.5X20X1.6)
€ 2.00
25
4531610F00
ref: 25
BRACKET,SEAT RR
€ 13.00
26
0155006253
ref: 26
01550-0625A
BOLT
€ 2.50
27
0916006066
ref: 27
WASHER(6.5X20X1.6)
€ 2.00
28
4521506B00
ref: 28
CUSHION
€ 4.50
29
4521606B00
ref: 29
SPACER
€ 2.50
30
0916006066
ref: 30
WASHER(6.5X20X1.6)
€ 2.00
31
4514931300
ref: 31
CUSHION,SEAT(40X20X15)
€ 2.00
32
0932110011
ref: 32
CUSHION
€ 3.00
33
0155006123
ref: 33
01550-0612A
BOLT
€ 2.50
34
0910608140
ref: 34
BOLT(8X16)
€ 6.00
