FOOTREST
VL1500B INTRUDER 1998 (W) USA (E03)

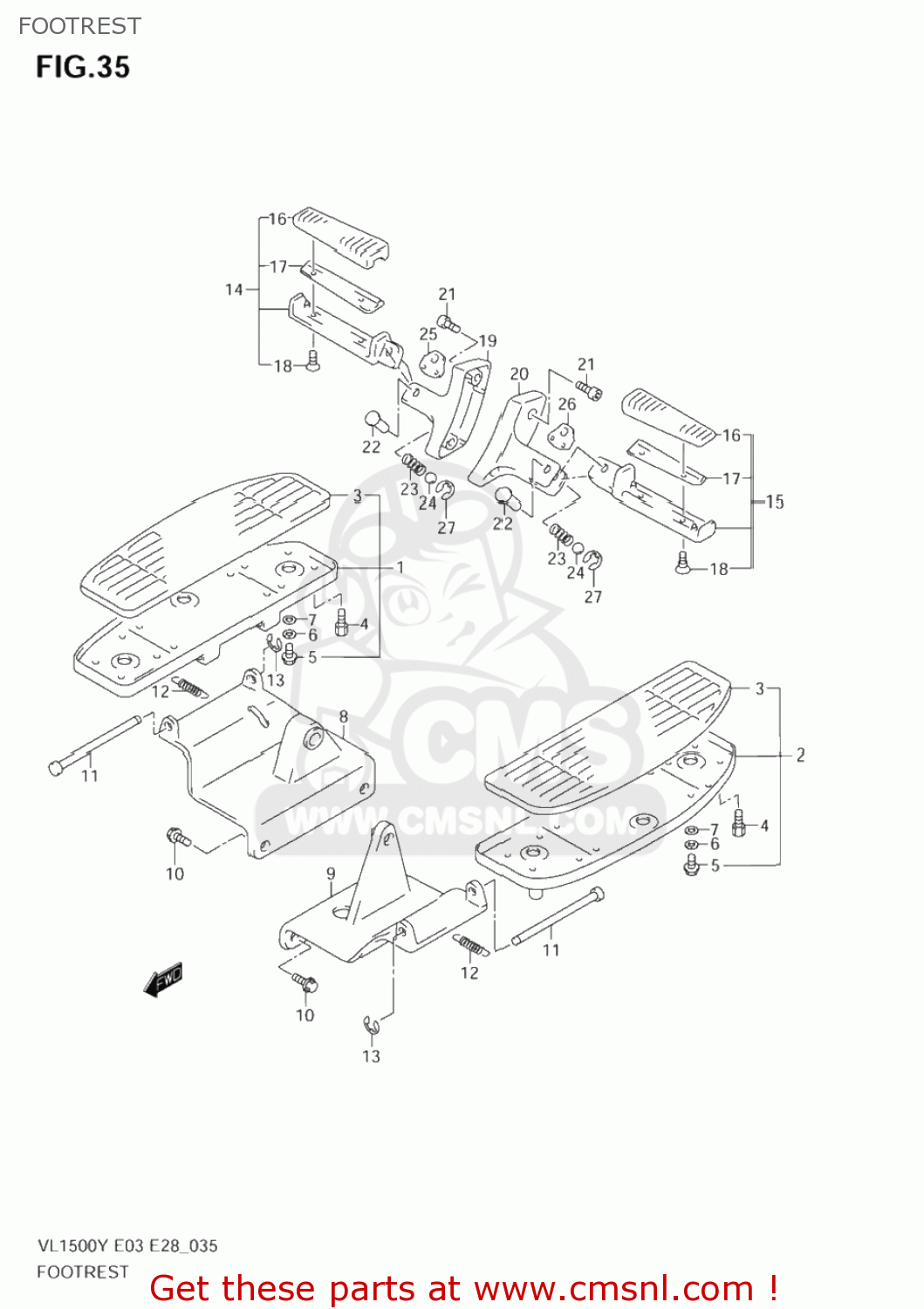

Footrest diagram VL1500B INTRUDER 1998 (W) USA (E03)
FOOTREST VL1500B INTRUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4350110F00
ref: 1
FOOTREST ASSY,FR,R
€ 241.50
2
4350210F00
ref: 2
FOOTREST ASSY,FR,L
€ 243.50
3
4355010F00
ref: 3
RUBBER,FR FOOTREST
€ 49.00
4
4357607D01
ref: 4
BOLT,BANK SENSOR
€ 8.00
5
0155006103
ref: 5
01550-0610A
BOLT
€ 2.50
6
0916006503
ref: 6
09160-06054
WASHER (6.5X22X1.6)
€ 2.00
7
0932010016
ref: 7
CUSHION
€ 3.50
8
4351010F00
ref: 8
BRACKET,FR FOOTREST,R
€ 137.50
9
4352010F00
ref: 9
BRACKET,FR FOOTREST,L
€ 137.50
10
0158010353
ref: 10
01580-1035A
BOLT
€ 4.00
11
4353910F00
ref: 11
PIN,FR FOOTREST
€ 6.50
12
0944311033
ref: 12
SPRING
€ 4.50
13
0833211063
ref: 13
08332-1106A
E.RING
€ 2.00
14-1
4360048E10
ref: 14-1
FOOTREST ASSY,PILLION,R
€ 65.50
14-2
4360038E00
ref: 14-2
FOOTREST ASSY,PILLION,R
€ 55.00
15-1
4370048E10
ref: 15-1
FOOTREST ASSY,PILLION,L
€ 72.50
15-2
4370038E00
ref: 15-2
FOOTREST ASSY,PILLION,L
€ 55.00
16
4361238A00
ref: 16
RUBBER,PILLION FOOTREST
€ 12.00
17
4363238A00
ref: 17
PLATE,RUBBER STOPPER
€ 4.00
18
0912705017
ref: 18
SCREW(5X16)
€ 2.00
19-1
4381110F00
ref: 19-1
43811-10F10
BRACKET,PILLION FOOTREST
€ 108.50
19-2
4381110F10
ref: 19-2
BRACKET,PILLION FOOTREST,R
€ 108.50
20-1
4382110F00
ref: 20-1
43821-10F10
BRACKET,PILLION FOOTREST
€ 89.50
20-2
4382110F10
ref: 20-2
BRACKET,PILLION FOOTREST,L
€ 89.50
21
0910608104
ref: 21
09106-08165
BOLT
€ 5.00
22-1
0920808014
ref: 22-1
PIN
€ 4.00
22-2
0920808010
ref: 22-2
PIN(8X33.2)
€ 3.00
23
0944005005
ref: 23
SPRING
€ 1.50
24
0611107004
ref: 24
BALL
€ 1.50
25
4381610F00
ref: 25
PLATE,PILLION FOOTREST,R
€ 4.00
26
4382610F00
ref: 26
PLATE,PILLION FOOTREST,L
€ 4.00
27
0833211063
ref: 27
08332-1106A
E.RING
€ 2.00
