BATTERY

VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

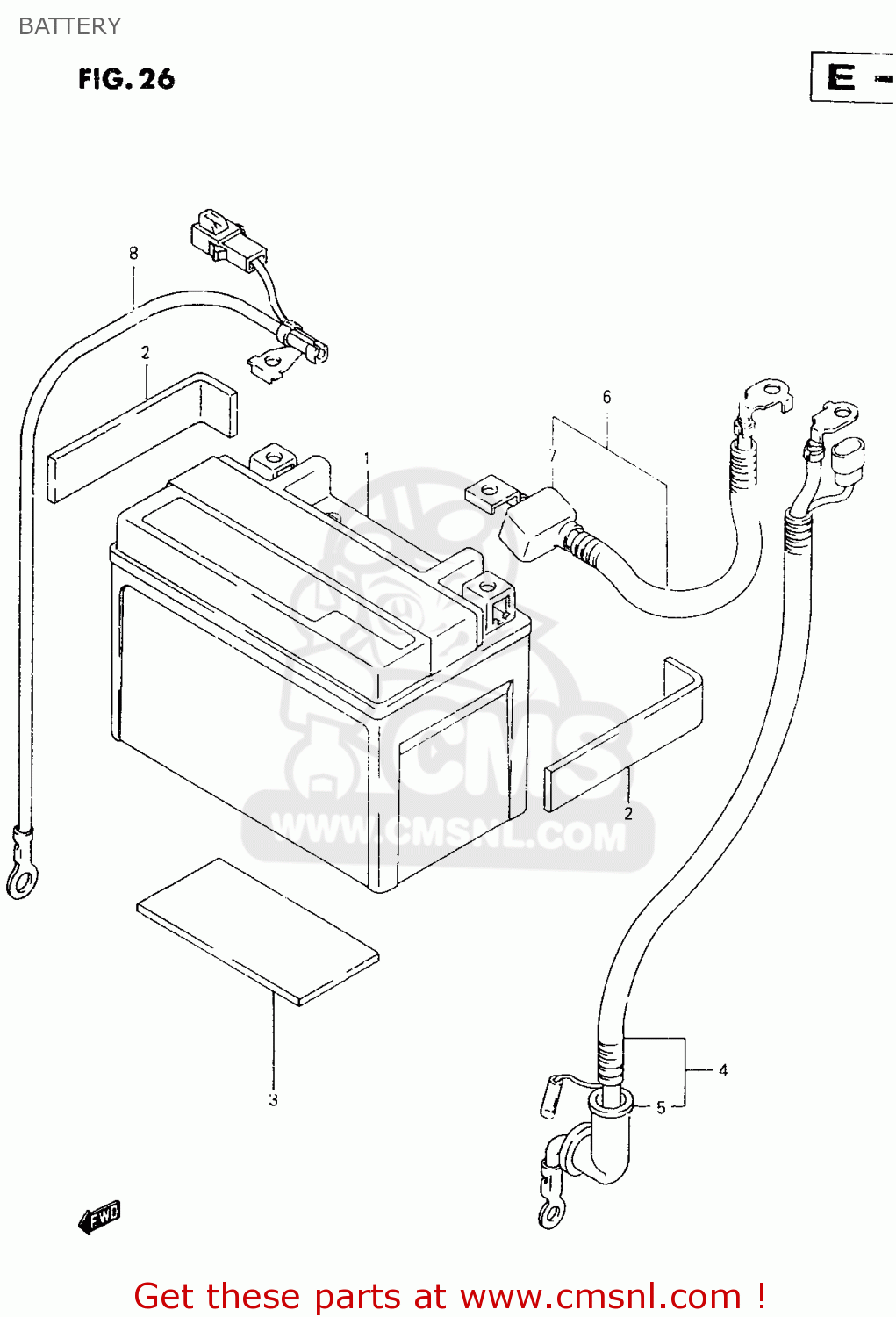

Battery diagram VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

3361048E20
ref: 1
FTX12-BS

BATTERY ASSEMBLY (12V) FTX

€ 97.50

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 3

PROTECTOR(170X95X3.0)

€ 5.00

3381048E00
ref: 4

WIRE,STARTER MOTOR LEAD

€ 40.50

3186148B10
ref: 5

CAP,STARTER MOTOR LEAD

€ 4.50

3382048E00
ref: 6

WIRE,BATTERY PLUS LEAD

€ 13.00

3362416E00
ref: 7

CAP,BATTERY PLUS

€ 4.00

3386048E00
ref: 8

WIRE,BATTERY MINUS

€ 19.00
