STAND

VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

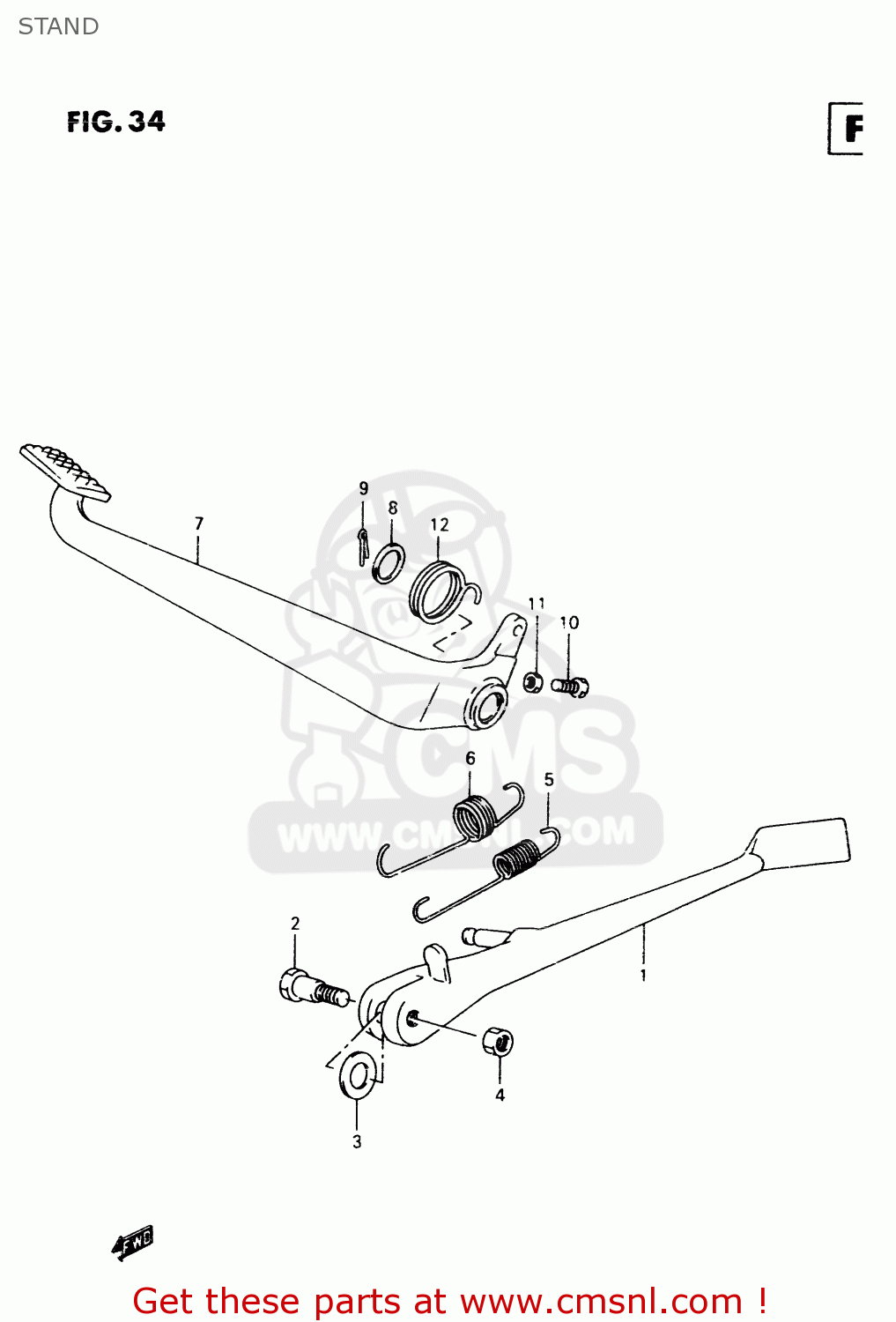

Stand diagram VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1-1

4231048E00
ref: 1-1
MODEL V

STAND COMP,PRO

€ 142.50

1-2

4231048E01
ref: 1-2
MODEL W

STAND, PROP

€ 142.50

0911110027
ref: 2

BOLT(10X34)

€ 3.50

0822112224
ref: 3

SHIM

€ 2.00

4-1

0915910027
ref: 4-1
MODEL V

NUT

€ 3.00

4-2

0831921103
ref: 4-2
MODEL W

NUT

€ 2.00

0944314066
ref: 5

SPRING

€ 5.00

0944319012
ref: 6

SPRING

€ 5.50

4311048E00
ref: 7

PEDAL COMP,BRAKE

€ 98.50

8-1

0916016028
ref: 8-1
MODEL V

WASHER (16.2X22X1)

€ 2.00

8-2

0916016043
ref: 8-2
MODEL W

WASHER(16.5X22X1)

€ 2.00

0411130308
ref: 9

COTTER PIN

€ 1.50

0150006207
ref: 10

BOLT

€ 2.00

0831000067
ref: 11

NUT

€ 2.50

0944831034
ref: 12

SPRING

€ 5.50
