Buy Suzuki VZ Parts Online


REAR BOX

VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

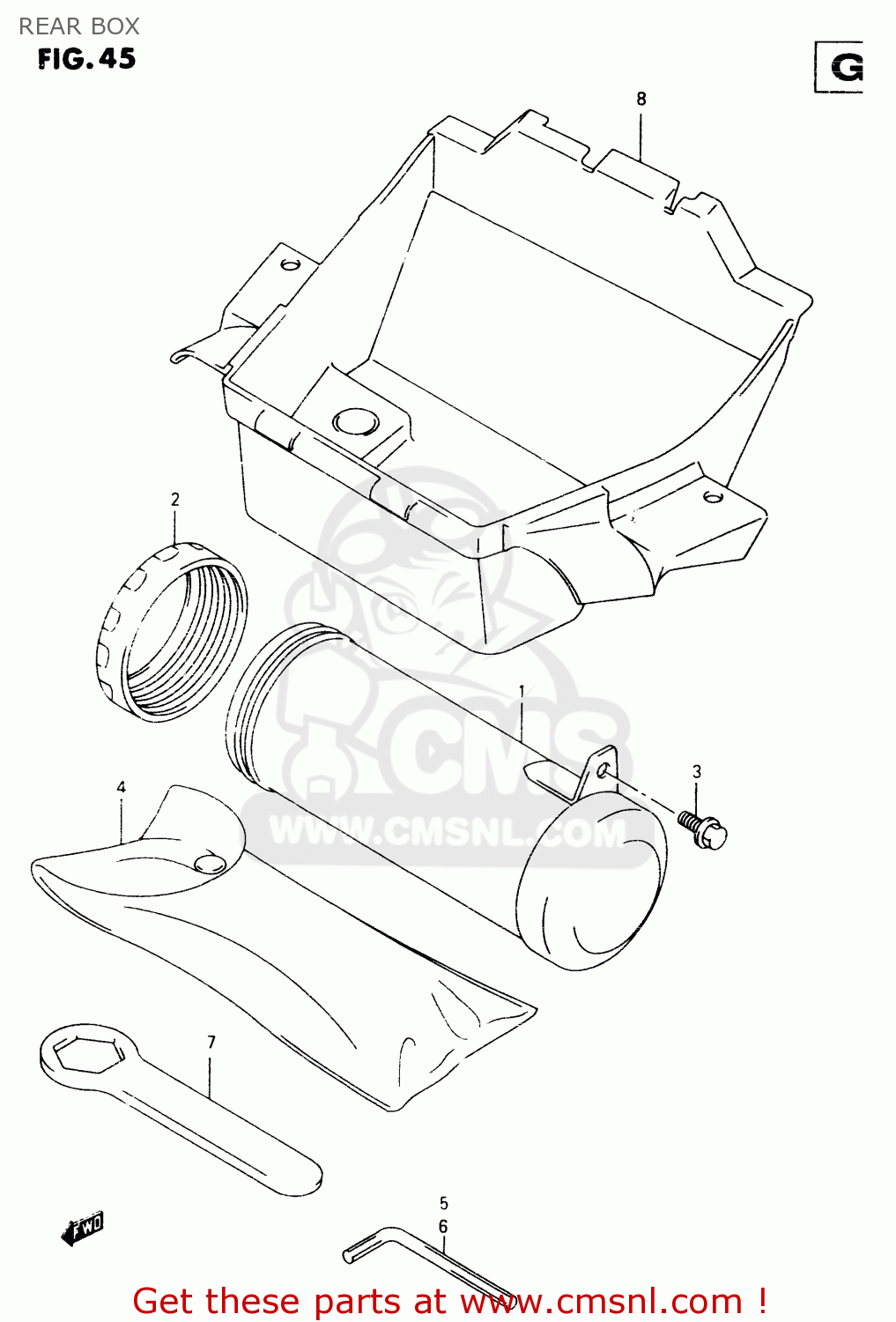

Rear box diagram VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

REAR BOX VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
REAR BOX VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
REAR BOX VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
4155048E00
ref: 1
HOLDER,TOOL
€ 328.00
2
4155548E00
ref: 2
CAP,TOOL HOLDER
€ 40.00
3
0155006123
ref: 3
BOLT
0155006123
€ 2.50
4
0980021012
ref: 4
TOOL ASSY
0980021012
€ 40.00
5
0981600103
ref: 5
SPANNER,HEXAGON(4)
0981600103
€ 3.00
6
0981600050
ref: 6
SPANNER,HEXAGON(6)
0981600050
€ 5.50
7
0981700035
ref: 7
RING SPANNER(22)
€ 6.50
8-1
9221148E00
ref: 8-1
MODEL V
BODY,LUGGAGE BOX
€ 28.00
8-2
9221148E01
ref: 8-2
MODEL W
BODY,LUGGAGE BOX
9221148E01
€ 28.00
