FRONT DAMPER

VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

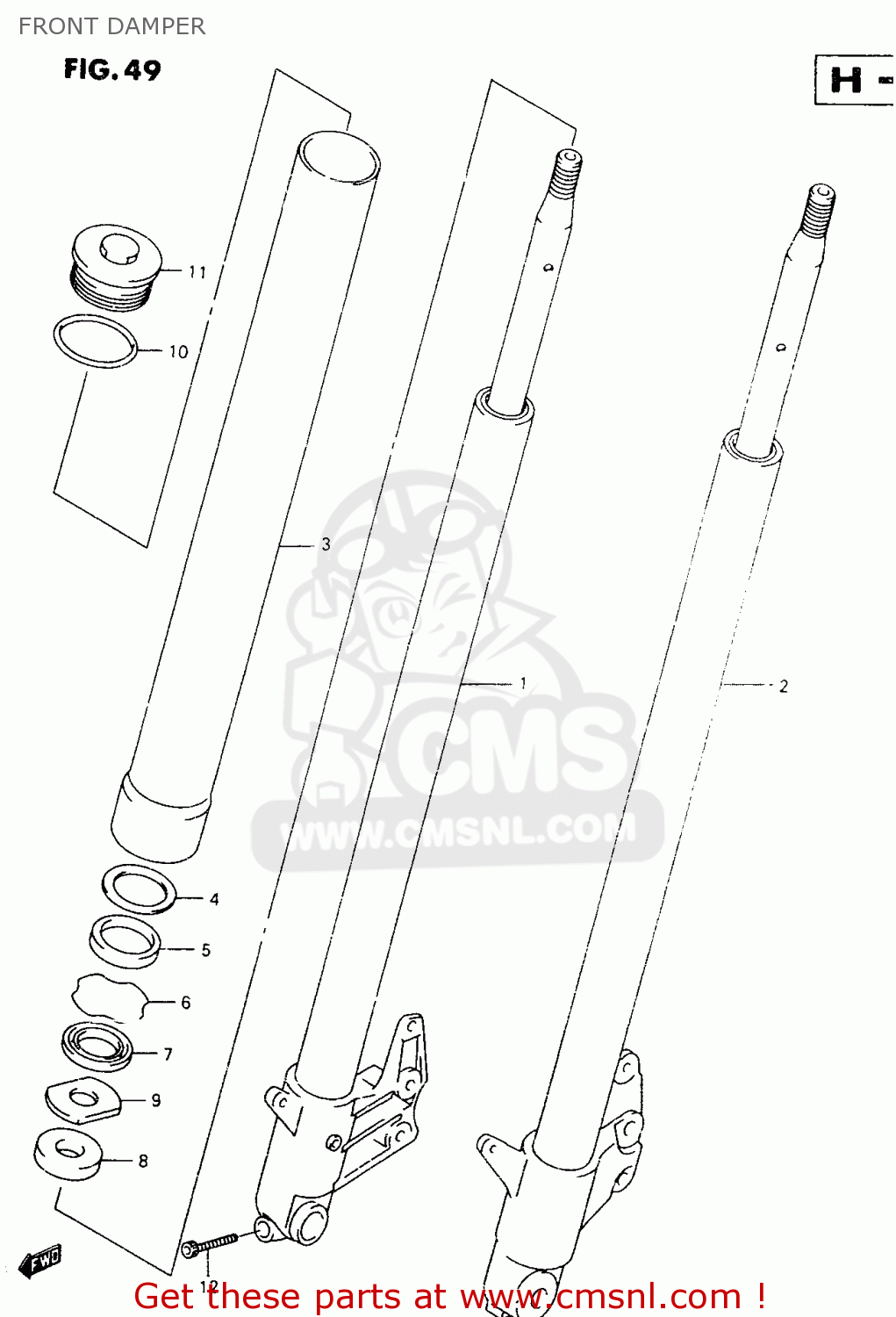

Front damper diagram VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

5110348E10
ref: 0

DAMPER ASSY,FR FORK,R

€ 660.50

5110448E10
ref: 0

DAMPER ASSY,FR FORK,L

€ 654.50

5111048E10
ref: 1

DAMPER,FR FORK,R

€ 496.00

5112048E10
ref: 2

DAMPER,FR FORK,L

€ 678.00

5113048E00
ref: 3

TUBE,OUTER

€ 487.00

5115805A00
ref: 4

WASHER,FORK OIL SEAL

€ 5.00

5115327C20
ref: 5

SEAL,OIL

€ 22.00

5115649440
ref: 6

RING,OIL SEAL STOPPER

€ 5.50

5117346E00
ref: 7

SEAL,DUST

€ 20.00

5119348E00
ref: 8

RUBBER,CUSHION

€ 7.50

5135348E00
ref: 9

NUT

€ 31.00

5111748E00
ref: 10

O RING

€ 4.50

5135148E00
ref: 11

CAP

€ 85.50

5138148E10
ref: 12

BOLT,LWR

€ 6.00
