RADIATOR

VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

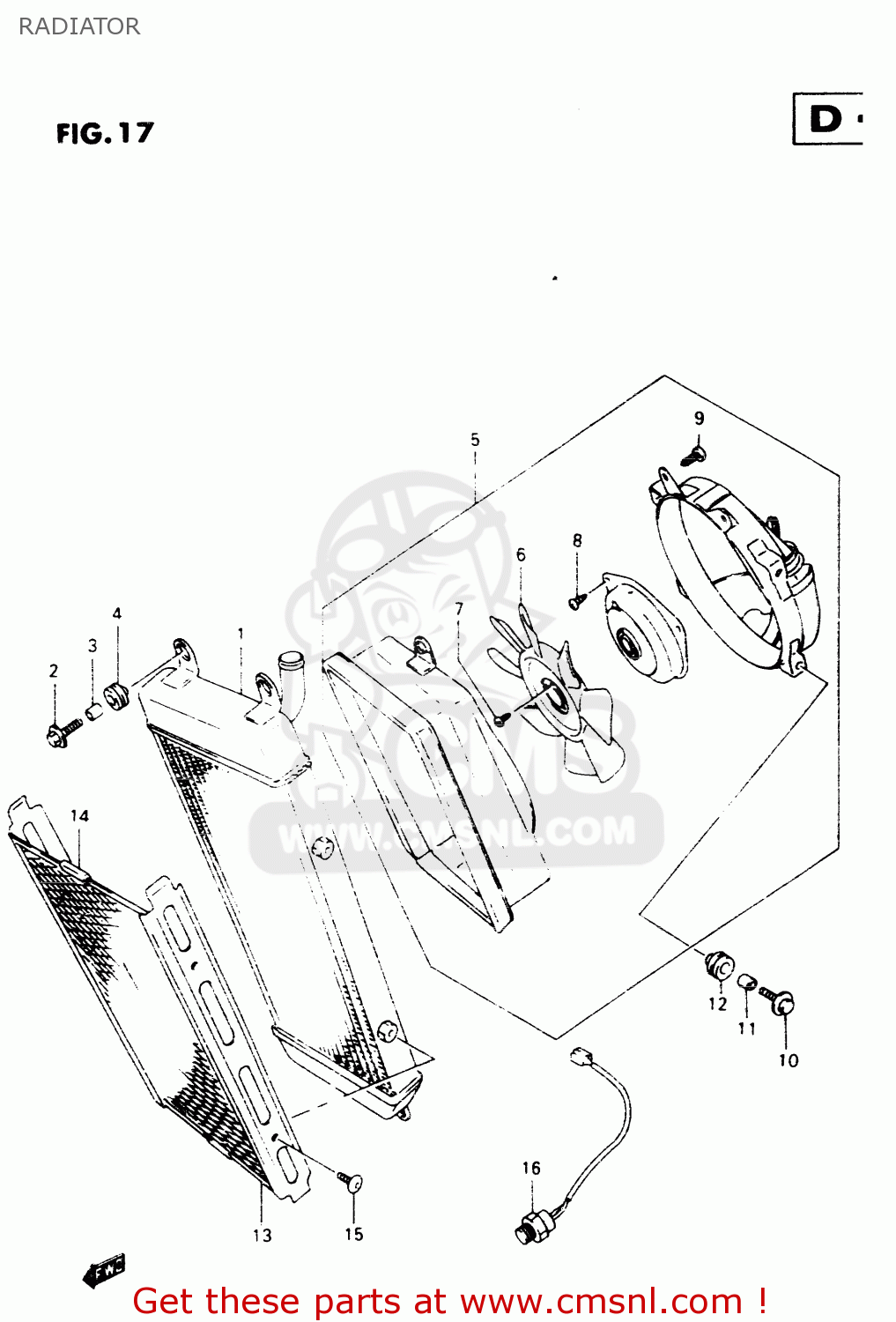

Radiator diagram VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1771048E00
ref: 1

RADIATOR ASSY,WATER

€ 947.50

0911606143
ref: 2

BOLT 6X20

€ 2.00

0918006310
ref: 3

SPACER(6.5X10X10)

€ 2.00

0932010501
ref: 4

CUSHION

€ 5.50

1780048E10
ref: 5

FAN ASSY,RADIATOR

€ 505.00

1782045C00
ref: 6

FAN

€ 51.50

0211204063
ref: 7

SCREW 4X6

€ 2.00

0211215083
ref: 8

SCREW

€ 2.00

0211215123
ref: 9

SCREW 5X12

€ 1.50

0911606143
ref: 10

BOLT 6X20

€ 2.00

0918006310
ref: 11

SPACER(6.5X10X10)

€ 2.00

0932010015
ref: 12

CUSHION

€ 2.50

1776048E10
ref: 13

COVER,RADIATOR

€ 63.50

1665427E00
ref: 14

PROTECTOR,CTR

€ 3.00

0913906051
ref: 15

SCREW(6X10)

€ 2.50

3485010D00
ref: 16

SWITCH ASSY,WATER TEMP

€ 103.00
