OIL PUMP / FUEL PUMP

VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

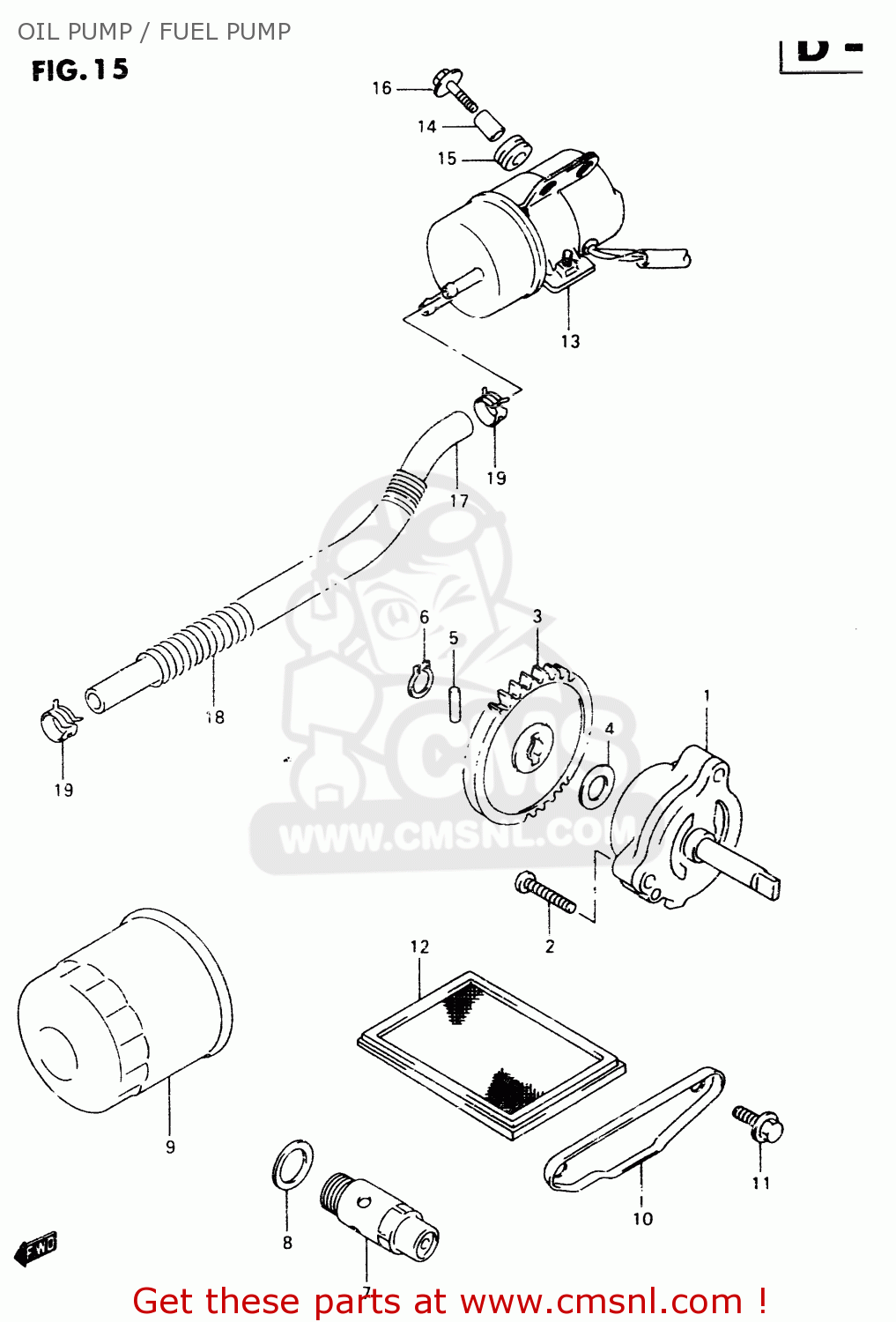

Oil pump / fuel pump diagram VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1640048E00
ref: 1

PUMP ASSY,ENGINE OIL

€ 197.50

0211206253
ref: 2

SCREW

€ 1.50

1633148E00
ref: 3

GEAR,OIL PUMP DRIVEN(NT:34)

€ 45.00

0918110158
ref: 4

SHIM(10X18X0.5)

€ 2.50

0926104009
ref: 5

PIN(4X15.8)

€ 1.50

0833131106
ref: 6

CIRCLIP,10MM

€ 2.00

1644033E00
ref: 7

VALVE ASSY,OIL RELIEF

€ 51.50

0916816002
ref: 8

GASKET(16X22X2) (NAS)

€ 2.00

9-1

1651006B01
ref: 9-1
MODEL V

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

9-2

1651034E00
ref: 9-2
MODEL W

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

1652348E00
ref: 10

CAP,OIL STRAINER

€ 9.00

0910306083
ref: 11

BOLT 6X12

€ 2.50

1652032E00
ref: 12

STRAINER,ENGINE OIL

€ 11.50

1510021E01
ref: 13

PUMP ASSY,FUEL

€ 391.50

0918006263
ref: 14

SPACER(6.5X9X9)

€ 2.00

0932009009
ref: 15

CUSHION

€ 5.00

0911606011
ref: 16

BOLT 6X20

€ 2.00

0935570125600
ref: 17

HOSE(7X12X600)

€ 26.00

0944014047
ref: 18

SPRING

€ 13.50

0910111407
ref: 19

CLIP

€ 0.00
