STARTING MOTOR

VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

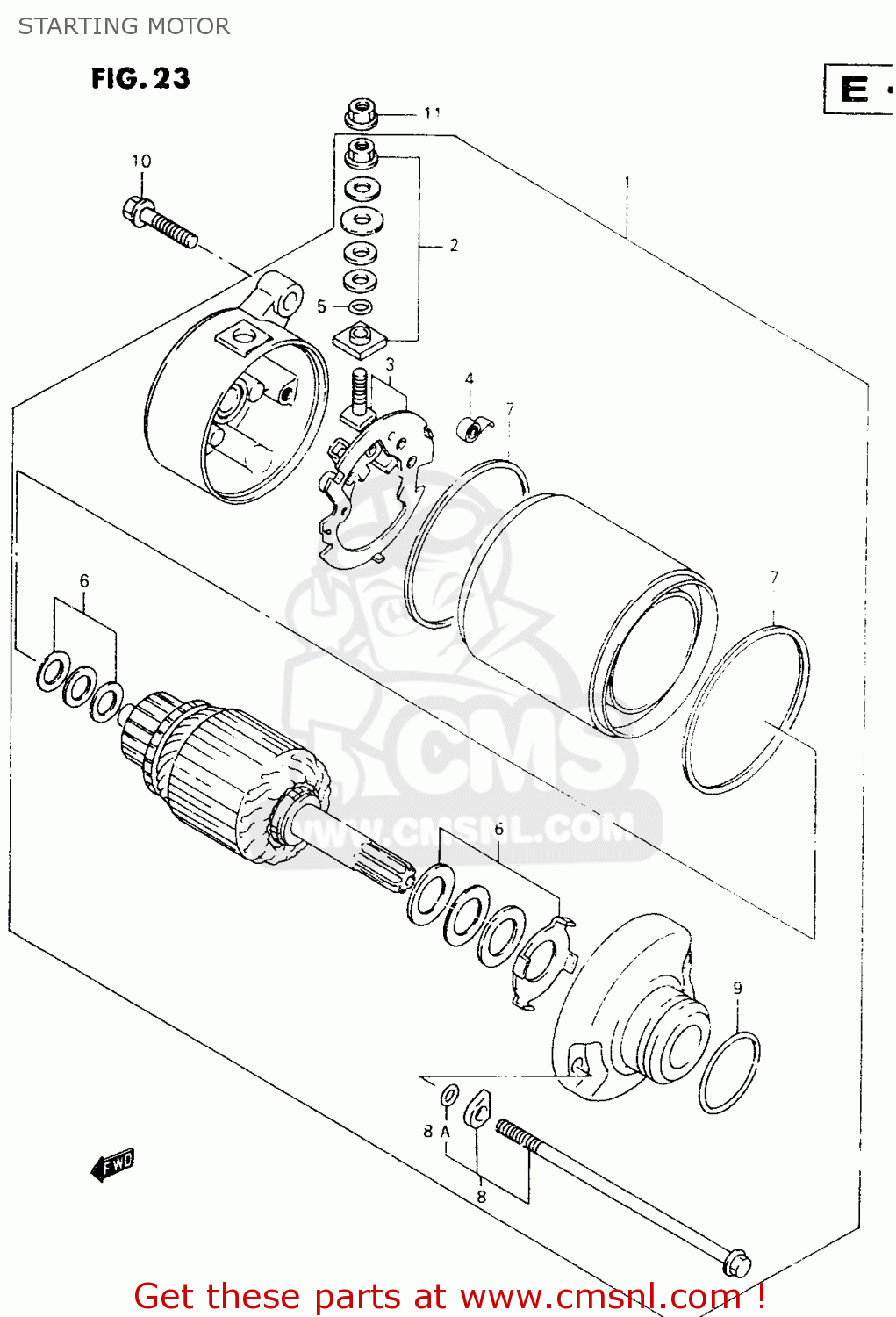

Starting motor diagram VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

3110048E00
ref: 1

MOTOR ASSY,STARTING

€ 1,020.00

3113019B10
ref: 2

TERMINAL SET,BRUSH,PLUS

€ 30.00

3113219B10
ref: 3

HOLDER SET,BRUSH

€ 31.50

3113531300
ref: 4

SPRING,BRUSH

€ 4.50

3114349040
ref: 5

O RING

€ 3.50

3117019B10
ref: 6

SHIM SET,STARTING MOTOR

€ 9.00

7-1

3126431300
ref: 7-1
MODEL V

O RING

€ 8.50

7-2

3126432E00
ref: 7-2
MODEL W

SQUARE RING

€ 8.50

3128019B10
ref: 8

BOLT SET,STARTING MOTOR

€ 7.00

3114349040
ref: 8A

O RING

€ 3.50

0928024003
ref: 9

O RING(D:3,ID:24.5)

€ 2.00

0154706257
ref: 10

BOLT

€ 2.50

0836135068
ref: 11

NUT

€ 2.00
