GEAR SHIFTING

VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

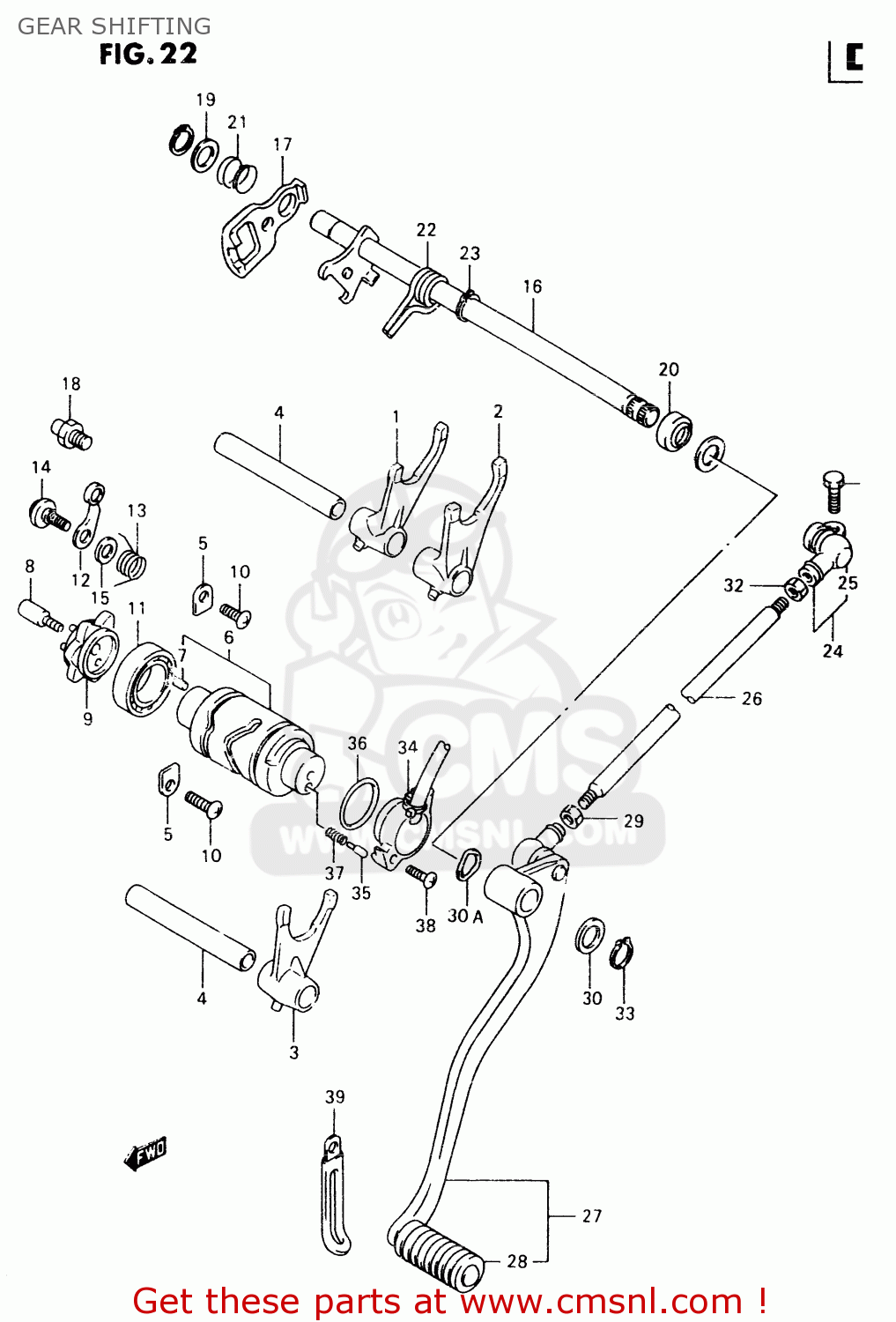

Gear shifting diagram VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

GEAR SHIFTING VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
GEAR SHIFTING VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
GEAR SHIFTING VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
2521144B00
ref: 1
FORK,GEAR SHIFT NO.1
2521144B00
€ 94.00
2
2522144B00
ref: 2
FORK,GEAR SHIFT NO.2
2522144B00
€ 86.00
3
2523148E00
ref: 3
FORK,GEAR SHIFT NO.3
€ 61.00
4
2541144B00
ref: 4
SHAFT,GEAR SHIFT FORK NO.1
2541144B00
€ 19.50
5
2474121A00
ref: 5
RETAINER
2474121A00
€ 2.00
6
2531048E00
ref: 6
CAM,GEAR SHIFT
€ 153.50
7
0422104089
ref: 7
PIN
0422104089
€ 1.50
8
2531212C00
ref: 8
PIN,SHIFT CAM DRIVEN GEAR
2531212C00
€ 6.00
9
2538113E10
ref: 9
PLATE,GEAR SHIFT CAM
2538113E10
€ 40.00
10
0211206123
ref: 10
SCREW
0211206123
€ 1.50
11
0811369050
ref: 11
BEARING
0811369050
€ 36.00
12
2535026D01
ref: 12
STOPPER,GEAR SHIFT CAM
2535026D01
€ 8.50
13
2535513E10
ref: 13
SPRING,SHIFT CAM STOPPER
2535513E10
€ 4.00
14
0911106041
ref: 14
BOLT(6X14.3)
0911106041
€ 3.00
15
0821106141
ref: 15
WASHER
0821106141
€ 2.50
16
2551048E00
ref: 16
SHAFT,GEAR SHIFT
€ 90.50
17-1
2551213E10
ref: 17-1
MODEL V
PLATE,GEAR SHIFT CAM D
€ 18.00
17-2
2551213E11
ref: 17-2
MODEL W
PLATE,GEAR SHIFT CAM DRIVE
2551213E11
€ 18.00
18
2567101000
ref: 18
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
19
0918114167
ref: 19
SHIM(14X22X1)
0918114167
€ 3.50
20
0928314006
ref: 20
SEAL,OIL(14X22X6)
0928314006
€ 6.50
21
0944017009
ref: 21
SPRING
0944017009
€ 1.50
22
0944420001
ref: 22
SPRING
0944420001
€ 5.00
23
0833131146
ref: 23
CIRCLIP
0833131146
€ 2.00
24
2552009301
ref: 24
ARM,GEAR SHIFT SHAFT
2552009301
€ 53.50
25
2552647000
ref: 25
COVER,DUST
2552647000
€ 3.50
26
2552548E00
ref: 26
ROD,GEAR SHIFT LINK
2552548E00
€ 16.50
27
2560048E00
ref: 27
LEVER ASSY,GEAR SHIFT
2560048E00
€ 74.50
28
2565220C00
ref: 28
RUBBER,GEAR SHIFT PEDAL
2565220C00
€ 8.00
29
0914006011
ref: 29
NUT
0914006011
€ 1.50
30
0916012011
ref: 30
WASHER(12.5X20X1)
0916012011
€ 1.50
30A
0916412019
ref: 30A
WASHER
0916412019
€ 2.00
31
0154706207
ref: 31
BOLT
0154706207
€ 2.50
32
0831000067
ref: 32
NUT
0831000067
€ 2.50
33
0833131126
ref: 33
CIRCLIP,12 MM
0833131126
€ 2.00
34-1
3772048E10
ref: 34-1
BASE ASSY,GEAR SHIFT TERMINAL
€ 102.00
34-2
3772048E20
ref: 34-2
E24
BASE ASSY,NEUTRAL SW TERMINAL
€ 78.00
35
0920905011
ref: 35
PIN(5X15.5)
0920905011
€ 2.00
36
0928026007
ref: 36
O RING(D:2.4,ID:25.7)
0928026007
€ 6.50
37
0944004010
ref: 37
SPRING
0944004010
€ 1.50
38
0211205163
ref: 38
SCREW
0211205163
€ 2.00
39
0940408417
ref: 39
CLAMP L:62
€ 3.00
