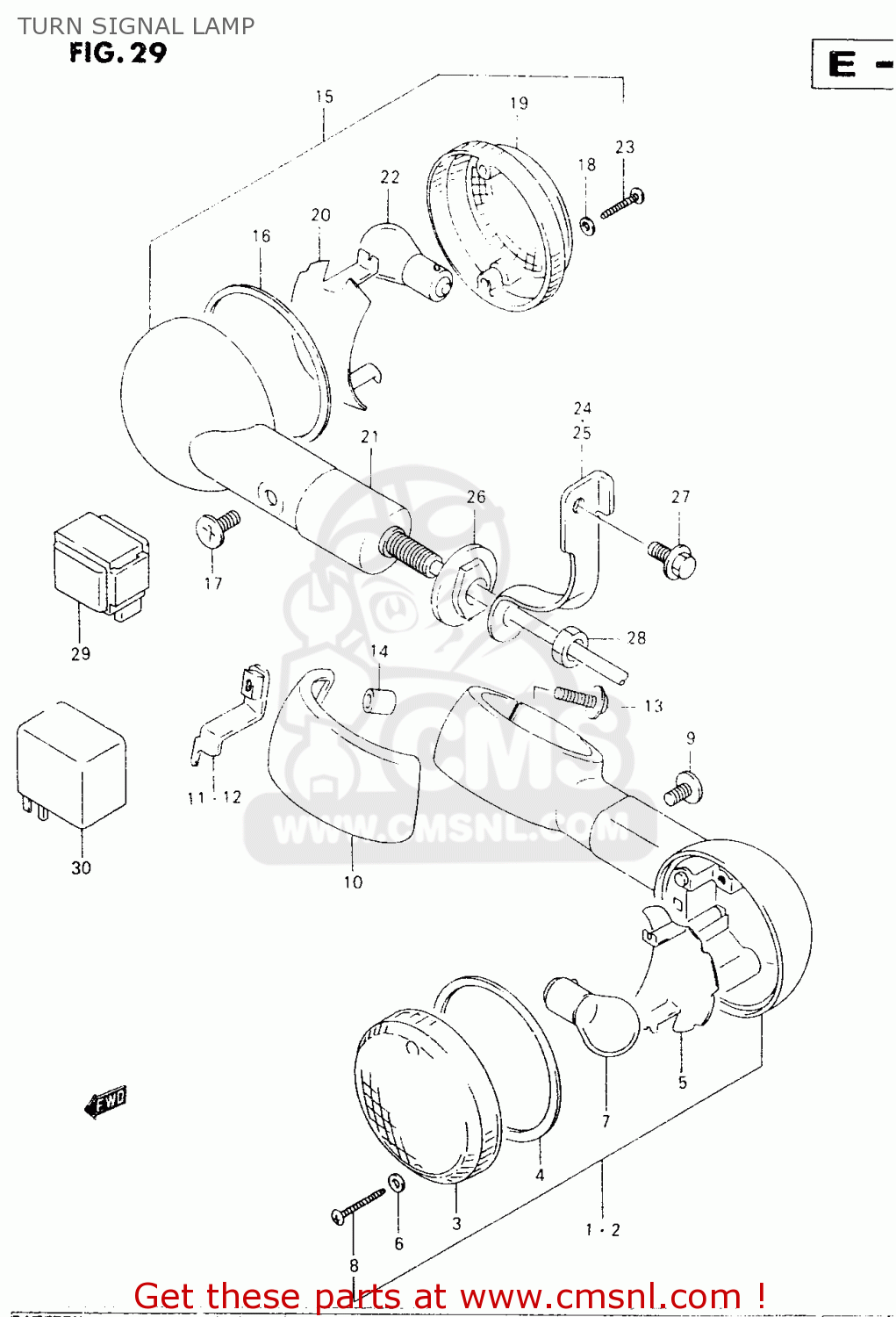

TURN SIGNAL LAMP

ref

part #

description

quantity

1

3560148E30
ref: 1

LAMP ASSY,FR TURN SIGNAL,R

€ 105.00

2

3560248E30
ref: 2

LAMP ASSY,FR TURN SIGNAL,L

€ 171.50

3

3561238A01
ref: 3

LENS

€ 10.50

4

3561338A00
ref: 4

GASKET (NAS)

€ 11.50

5

3562438A20
ref: 5

REFLECTOR

€ 71.00

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0947112045
ref: 7

BULB(12V21W)

€ 5.00

8

0321104253
ref: 8

SCREW

€ 2.00

9

3562338A01
ref: 9

SCREW

€ 5.50

10

3564548E00
ref: 10

COVER,FR TURNSIGNAL STAY

€ 19.50

11

3567148E10
ref: 11

BRACKET,FR TURNSIGNAL,R

€ 5.00

12

3568148E10
ref: 12

BRACKET,FR TURNSIGNAL,L

€ 5.00

13

0913606126
ref: 13

SCREW(6X25)

€ 2.50

14

0918006121
ref: 14

SPACER(6.4X9.2X12)

€ 2.50

15

3560333D30
ref: 15

LAMP ASSY,RR TURNSIGNAL,R

€ 102.00

16

3561338A00
ref: 16

GASKET (NAS)

€ 11.50

17

3562338A01
ref: 17

SCREW

€ 5.50

18

3562743010
ref: 18

GASKET (NAS)

€ 2.00

19

3565238A21
ref: 19

LENS

€ 16.50

20

3565438A20
ref: 20

REFLECTOR

€ 83.50

21

3565945C10
ref: 21

STAY,TURNSIGNAL RR

€ 36.00

22

0947112045
ref: 22

BULB(12V21W)

€ 5.00

23

0321104253
ref: 23

SCREW

€ 2.00

24

3560848E01
ref: 24

REINF,RR TURNSIGNAL,R

€ 6.50

25

3560948E01
ref: 25

REINF,RR TURNSIGNAL,L

€ 6.50

26

3569517C00
ref: 26

SPACER,RR TURNSIGNAL

€ 3.00

27

0155006123
ref: 27

BOLT

€ 2.50

28

0831000103
ref: 28

NUT

€ 2.00

29

3861026E00
ref: 29
MODEL V

RELAY ASSY

€ 47.00

30

3861003F00
ref: 30
MODEL W

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50

all assemblies
