REAR SHOCK ABSORBER

VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

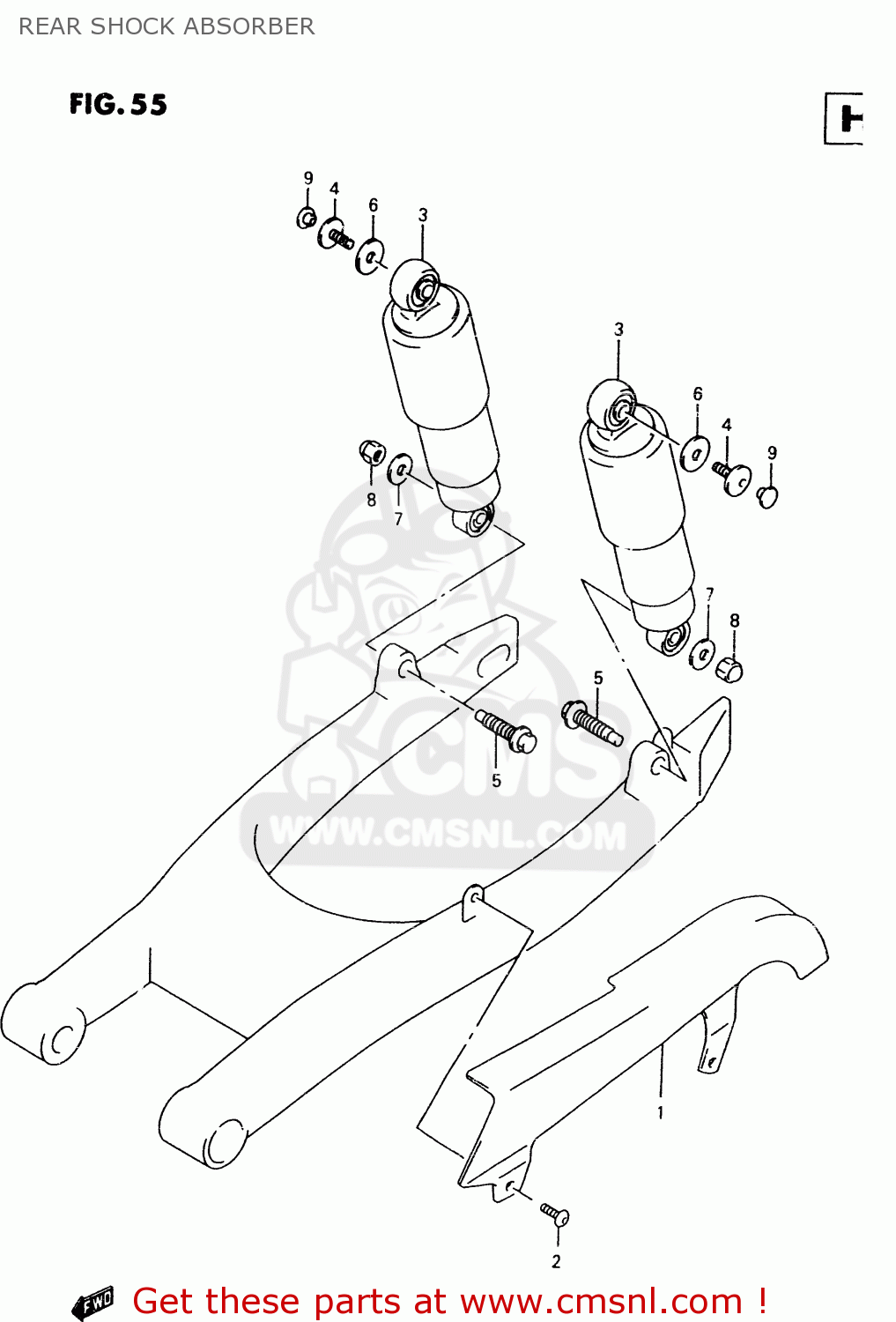

Rear shock absorber diagram VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

REAR SHOCK ABSORBER VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

REAR SHOCK ABSORBER VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

6131048E10
ref: 1

CASE,CHAIN

€ 207.50

2

0214206107
ref: 2

SCREW

€ 2.00

3

6210048E10
ref: 3

ABSORBER ASSY,RR SHOCK

€ 384.00

4

0910608094
ref: 4

BOLT(8X20)

€ 8.00

5

6231348E00
ref: 5

BOLT,RR SHOCK ABSORBER

€ 13.50

6

0916008138
ref: 6

WASHER (8.5X30X2.3)

€ 2.00

7

0916010035
ref: 7

WASHER(10.5X28X2.3)

€ 2.00

8

0831310107
ref: 8

NUT

€ 2.50

9

0925006009
ref: 9

CAP(OD:14.5)

€ 3.50
