FRONT FENDER (MODEL W)

VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

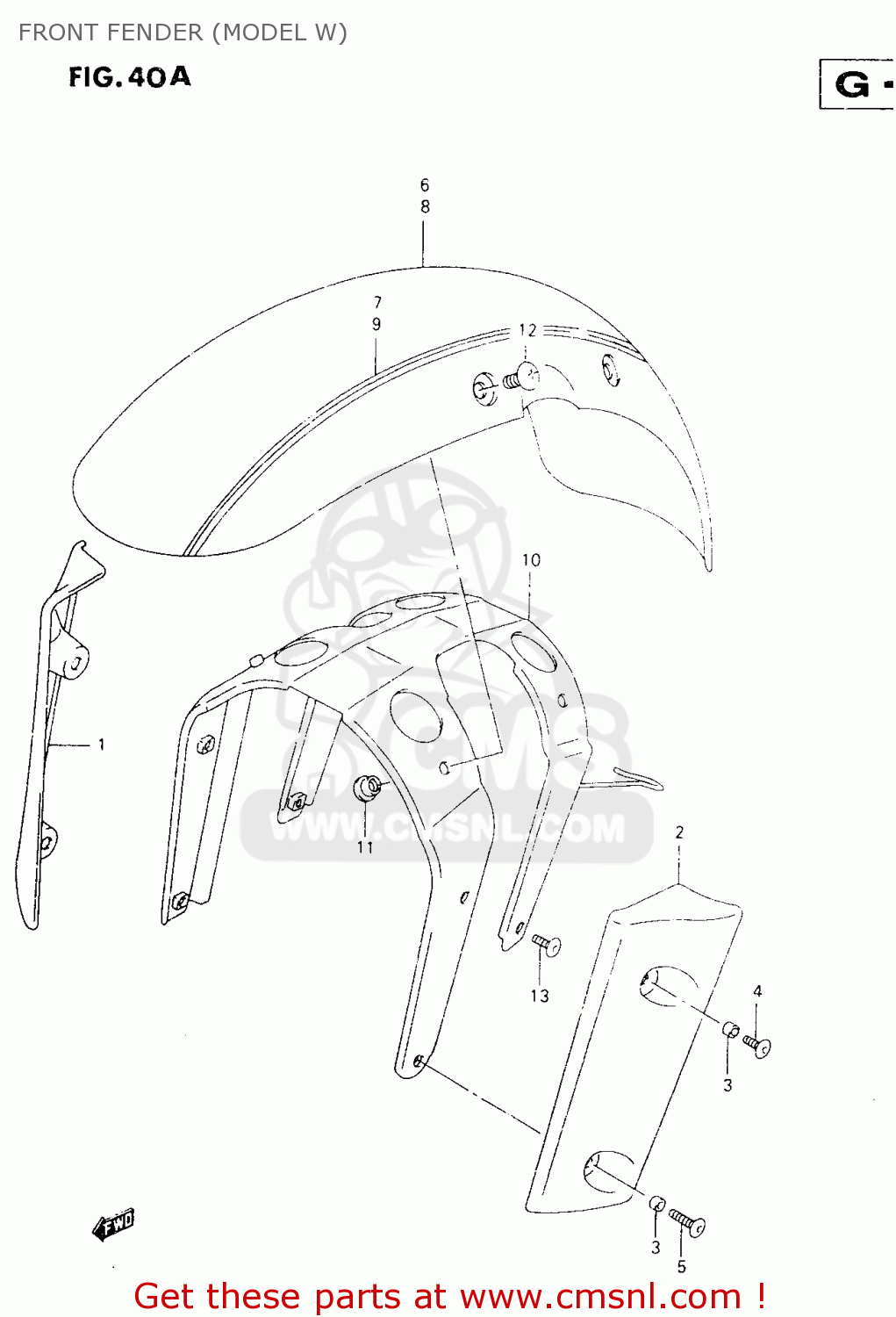

Front fender (model w) diagram VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

FRONT FENDER (MODEL W) VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
FRONT FENDER (MODEL W) VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
FRONT FENDER (MODEL W) VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
5188148E00
ref: 1
COVER,FR FORK SIDE,R
5188148E00
€ 65.50
2
5188248E00
ref: 2
COVER,FR FORK SIDE,L
5188248E00
€ 61.00
3
0918006245
ref: 3
SPACER(6.1X8X3.5)
0918006245
€ 3.00
4
0913906027
ref: 4
SCREW(6X12)
0913906027
€ 3.00
5
0913906028
ref: 5
SCREW(6X20)
0913906028
€ 3.50
6-1
5311048E30E88
ref: 6-1
FENDER,FRONT
€ 212.00
6-2
5311048E30J8K
ref: 6-2
FENDER COMP,FRONT
5311048E30J8K
€ 168.00
6-3
5311048E30E9N
ref: 6-3
FENDER,FRONT
€ 192.50
6-4
5311048E50E88
ref: 6-4
E22
FENDER,FR
€ 212.00
6-5
5311048E50J8K
ref: 6-5
E22
FENDER,FR
€ 168.00
6-6
5311048E50E9N
ref: 6-6
E22
FENDER,FR
€ 192.50
7-1
6815048E10J6D
ref: 7-1
FOR E88
TAPE SET,FR FENDER
6815048E10J6D
€ 50.50
7-2
6815048E10J9G
ref: 7-2
FOR J8K
TAPE SET,FRONT FENDER
6815048E10J9G
€ 66.00
7-3
6815048E10J9K
ref: 7-3
FOR E9N
TAPE SET,FR FENDER
€ 50.50
8-1
5311048E40J4M
ref: 8-1
FENDER,FRONT
5311048E40J4M
€ 212.00
8-2
5311048E60J4M
ref: 8-2
E22
FENDER,FR
€ 212.00
9
6815048E20J6F
ref: 9
FOR J4M
TAPE SET,FR FENDER
€ 50.50
10
5312048E00
ref: 10
BRACE,FR FENDER
5312048E00
€ 65.50
11
5312233D00
ref: 11
NUT
€ 6.50
12
0913906027
ref: 12
SCREW(6X12)
0913906027
€ 3.00
13
0913906030
ref: 13
SCREW(6X16)
0913906030
€ 3.50
