HEADLAMP HOUSING

VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

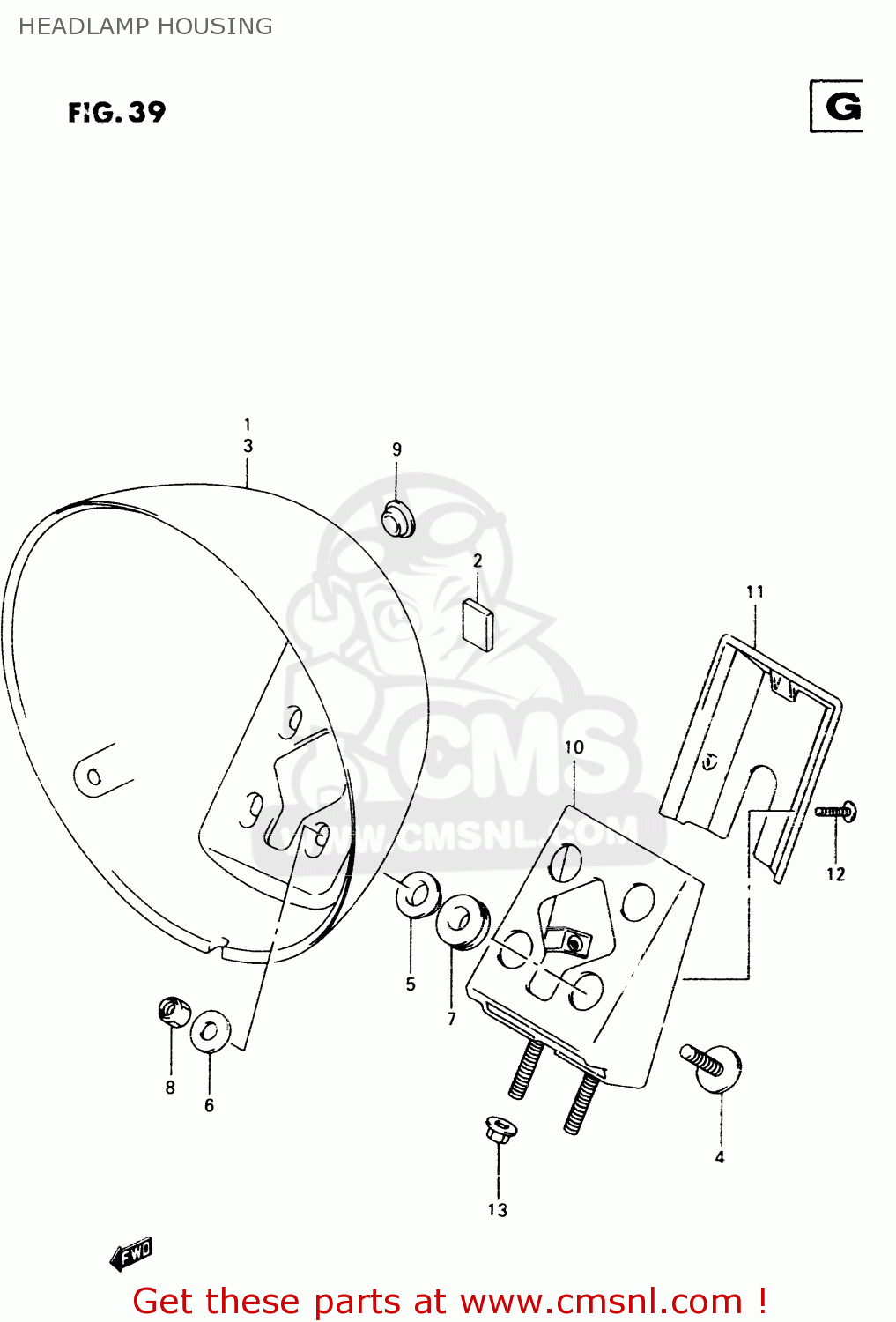

Headlamp housing diagram VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

5181048E10
ref: 1
MODEL V

HOUSING,HEADLAMP

€ 99.50

5181248E00
ref: 2
MODEL V

CUSHION,HEADLAMP HOUSING

€ 4.00

5181148E02
ref: 3
MODEL W

HOUSING,HEADLAMP

€ 99.50

0911606025
ref: 4

BOLT(6X25)

€ 2.50

0916906063
ref: 5

WASHER

€ 3.50

6-1

0916006027
ref: 6-1
MODEL V

WASHER (6.5X20X1.2)

€ 2.00

6-2

0916006138
ref: 6-2
MODEL W

WASHER(6.5X22X2.3)

€ 2.50

0932008051
ref: 7

CUSHION

€ 7.50

0831921063
ref: 8

NUT

€ 2.50

9-1

5181648E00
ref: 9-1
MODEL V

CAP,HEADLAMP HOUSING

€ 2.00

9-2

5181648E01
ref: 9-2
MODEL W

CAP,HEADLAMP HOUSING

€ 20.50

10-1

5185048E00
ref: 10-1
MODEL V

BRACKET,HEADLAMP HOUSING

€ 51.50

10-2

5185048E01
ref: 10-2
MODEL W

BRACKET,HEADLAMP HOUSING

€ 51.50

5181548E00
ref: 11

COVER,HEADLAMP HSG BRACKET

€ 20.00

0214204107
ref: 12

SCREW

€ 1.50

0831931063
ref: 13

NUT

€ 2.50
