STARTER CLUTCH

VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

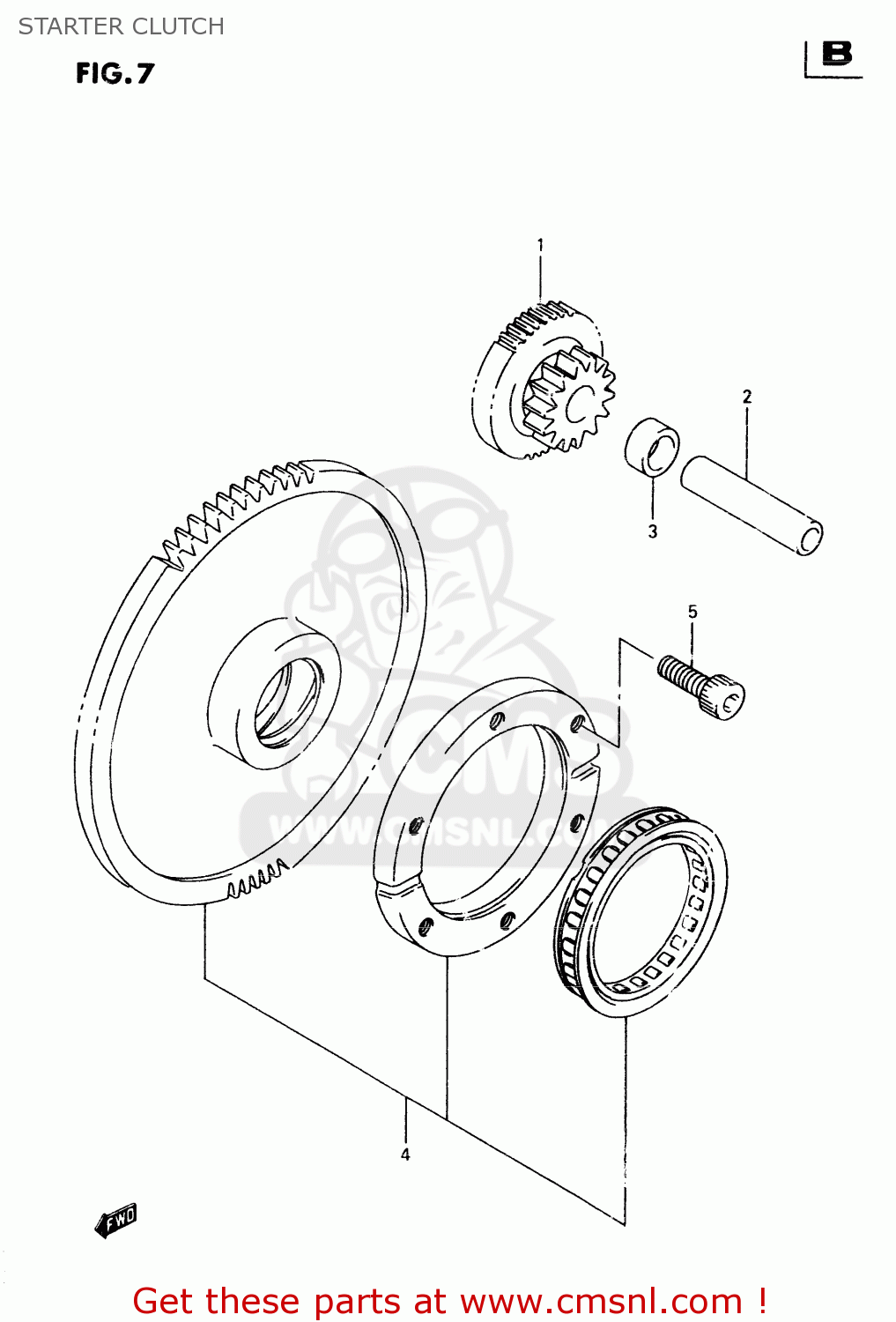

Starter clutch diagram VZ800 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1-1

1261148E00
ref: 1-1
MODEL V

GEAR,STARTER IDLE (NT

€ 59.50

1-2

1261148E01
ref: 1-2
MODEL W

GEAR,STARTER IDLE(NT:14/49)

€ 59.50

0920612003
ref: 2

PIN(12X55.5)

€ 14.00

0918012137
ref: 3

SPACER(12.5X19X9.5)

€ 4.00

1260038831
ref: 4

CLUTCH SET,STARTER

€ 307.00

0713008163
ref: 5

BOLT

€ 3.00
