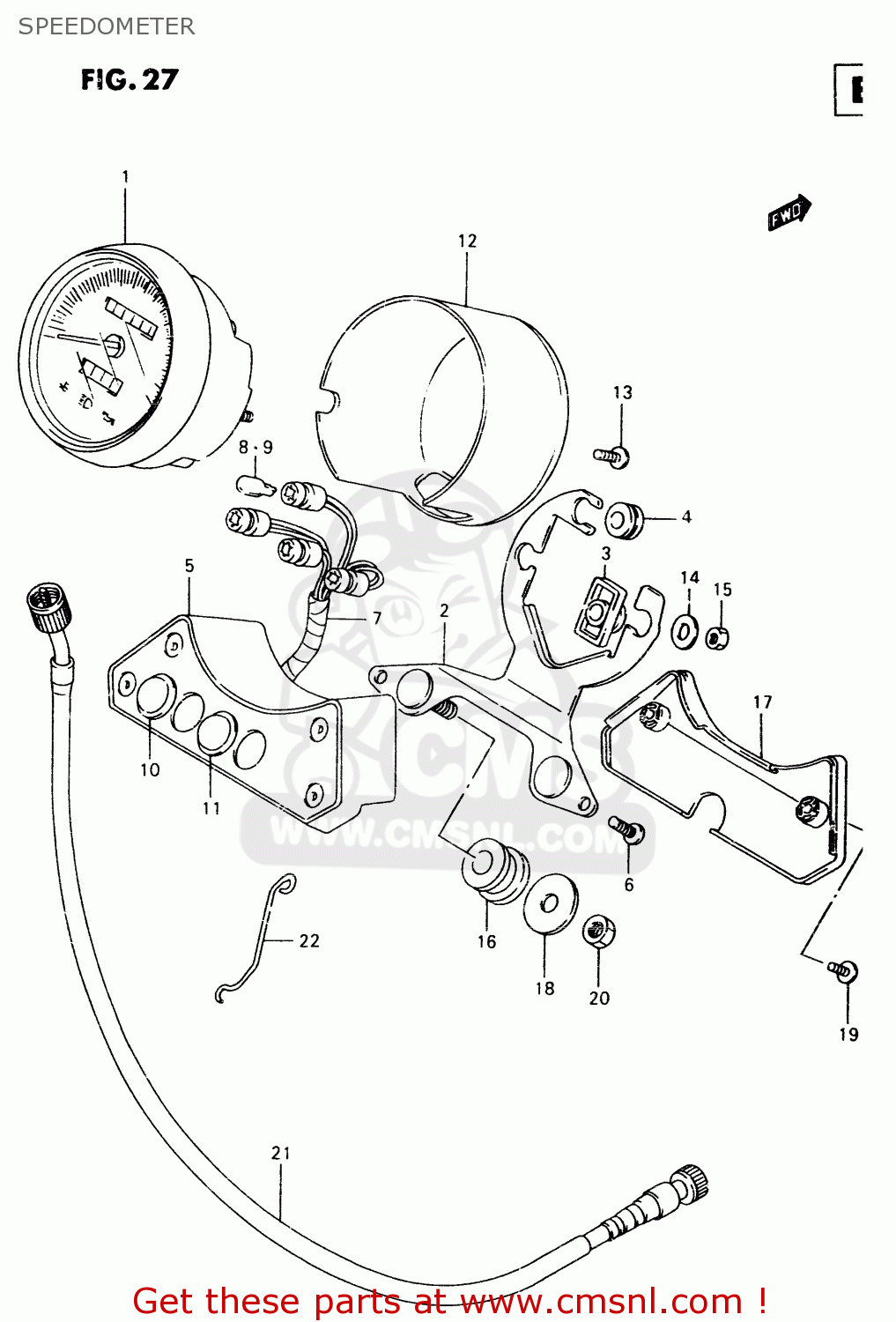

SPEEDOMETER

ref

part #

description

quantity

1-1

3411048E20
ref: 1-1

SPEEDOMETER

€ 442.50

1-2

3411048E10
ref: 1-2
E4,E17,E18,E22,E24,E

SPEEDOMETER

€ 442.50

2

3495048E00
ref: 2

BRACKET

€ 35.00

3

3419125D00
ref: 3

CUSHION,DAMPER

€ 9.50

4

3419126D10
ref: 4

DAMPER

€ 11.50

5

3496048E00
ref: 5

CASE ASSY,PILOT

€ 50.50

6

3418412B00
ref: 6

SCREW

€ 1.50

7

3417048E00
ref: 7

CORD ASSY

€ 55.50

8

0947112108
ref: 8

BULB(12V1.7W,T6.5)

€ 2.00

9

0947112028
ref: 9

BULB(12V3.4W,T10)

€ 3.50

10

3632125D00
ref: 10

LENS(GREEN)

€ 6.50

11-1

3634125D00
ref: 11-1

LENS,TURNSIGNAL(ORANGE)

€ 6.00

11-2

3632125D00
ref: 11-2
E4,E17,E18,E22,E24,E

LENS(GREEN)

€ 6.50

12

3411125D00
ref: 12

COVER,UNDER(CHROMUN)

€ 60.00

13

0354114123
ref: 13

SCREW

€ 2.00

14

0916005013
ref: 14

WASHER(5.2X16X1)

€ 1.50

15

0831000057
ref: 15

NUT

€ 2.50

16

3495631001
ref: 16

CUSHION,METER BRACKET

€ 4.50

17

3638348E00
ref: 17

COVER,P-BOX

€ 10.00

18-1

0916008002
ref: 18-1
MODEL V

WASHER (8.5X29X1.6)

€ 2.00

18-2

0916008136
ref: 18-2
MODEL W

WASHER(8.5X28X1.6)

€ 3.50

19

0211274103
ref: 19

SCREW

€ 2.00

20

0831000083
ref: 20

NUT

€ 1.50

21

3491048E01
ref: 21

CABLE ASSY,SPEEDOMETER

€ 94.50

22

3493848E10
ref: 22

GUIDE,SPEEDOMETER CABLE

€ 8.50

all assemblies
