AIR CLEANER

ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

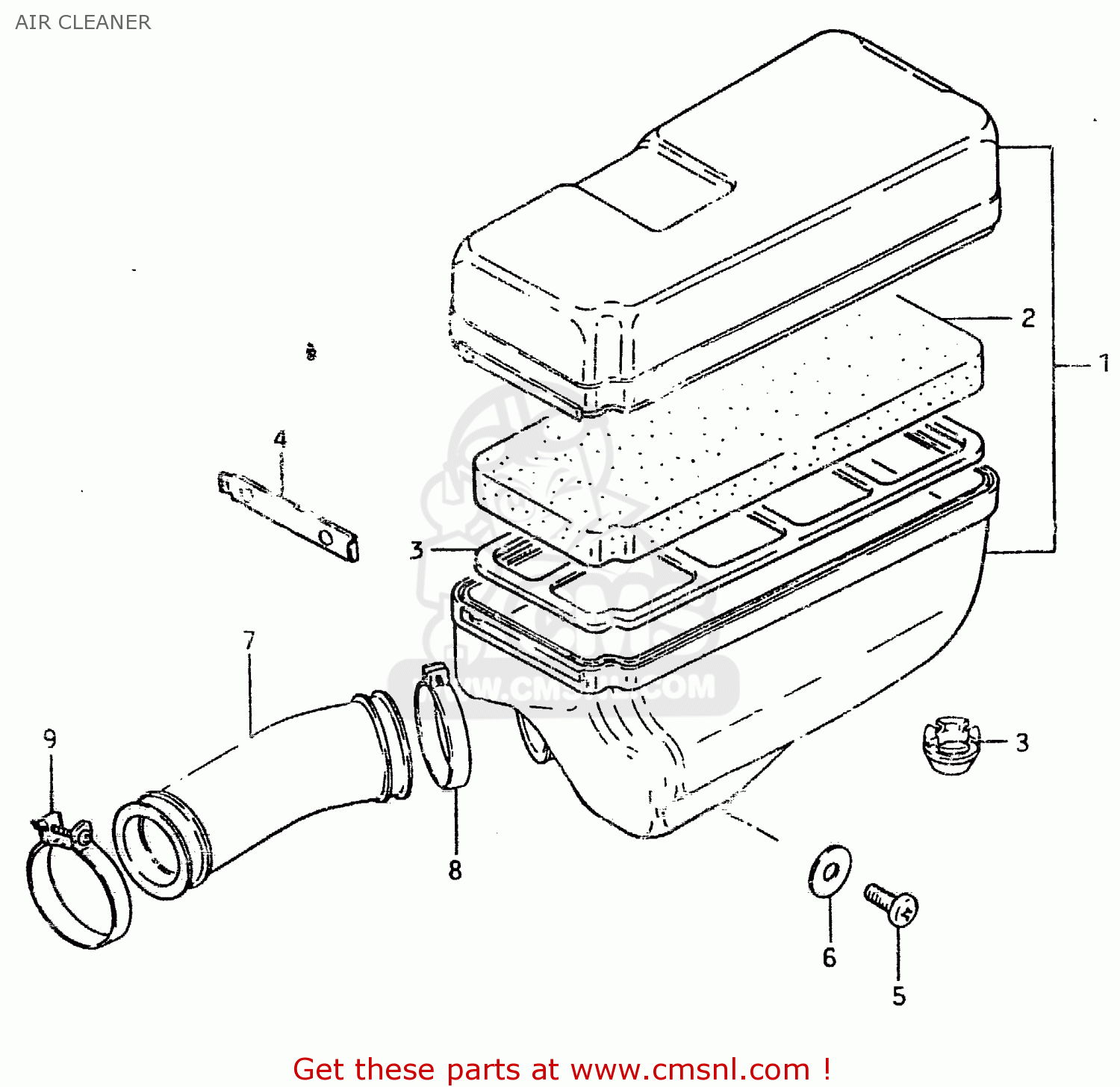

Air cleaner diagram ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

AIR CLEANER ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

AIR CLEANER ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

prices are in EUR

ref

part #

description

quantity

1

1370046100
ref: 1

CLEANER ASSY,A

€ 42.00

1

1370026400
ref: 1
E21,E41

CLEANER ASSY, AIR

€ 62.50

2

1378126400
ref: 2

FILTER

€ 8.00

3

1386000010
ref: 3

CAP,DRAIN

€ 6.50

4

1382100011
ref: 4

SLIDER

€ 3.50

5

0214206167
ref: 5

SCREW

€ 2.00

6

0916006007
ref: 6
E21,E41

WASHER

€ 2.00

7

1388246100
ref: 7

TUBE,AIR CLEANER OUTLET

€ 14.50

8

0940240305
ref: 8

CLAMP

€ 4.00

9

0940234306
ref: 9

CLAMP

€ 9.00
