FRAME COVER
ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

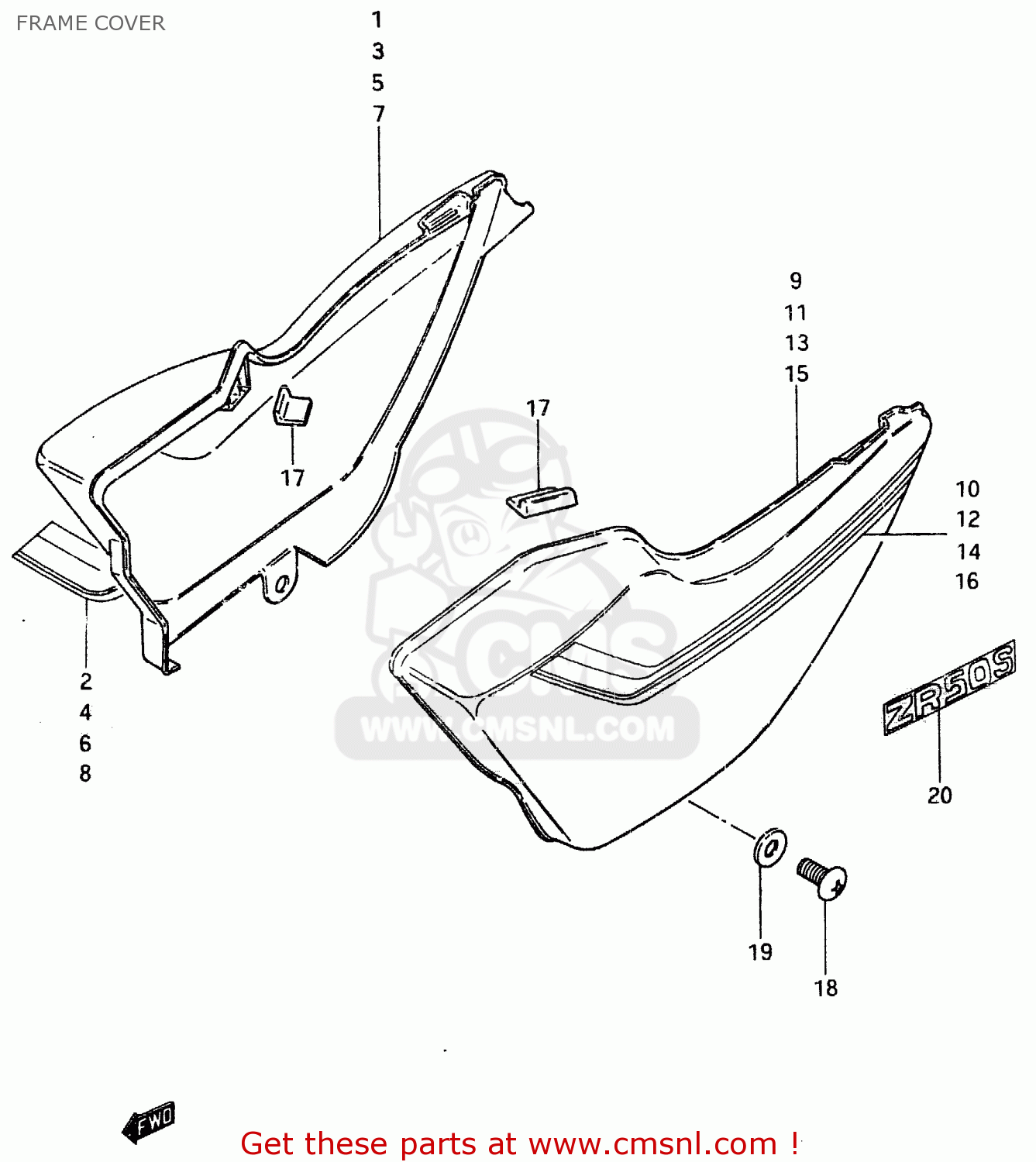

Frame cover diagram ZR50SK 1982 (X) (E02 E16 E17 E21 E41)
FRAME COVER ZR50SK 1982 (X) (E02 E16 E17 E21 E41)
×
prices are in EUR
ref
part #
description
quantity
1
471112645184N
ref: 1
COVER, FRAME RH
€ 45.00
2
681362646077H
ref: 2
TAPE, RH
€ 11.00
3
471112645184P
ref: 3
COVER, FRAME RH
€ 45.00
4
681362646078H
ref: 4
TAPE, RH
€ 11.00
5
471112645184R
ref: 5
COVER, FRAME RH
€ 45.00
6
681362646078J
ref: 6
TAPE, RH
€ 9.50
7
471112645184S
ref: 7
COVER, FRAME RH
€ 45.00
8
681362646078K
ref: 8
TAPE, RH
€ 0.00
9
472112645084N
ref: 9
COVER, FRAME LH
€ 37.50
10
681462646077H
ref: 10
TAPE, LH
€ 9.00
11
472112645084P
ref: 11
COVER, FRAME LH
€ 37.50
12
681462646078H
ref: 12
TAPE, LH
€ 10.00
13
472112645084R
ref: 13
COVER, FRAME LH
€ 37.50
14
681462646078J
ref: 14
TAPE, LH
€ 9.50
15
472112645084S
ref: 15
COVER, FRAME LH
€ 37.50
16
681462646078K
ref: 16
TAPE, LH
€ 0.00
17
4711745000
ref: 17
CUSHION,FRAME COVER
€ 1.50
18
0214206168
ref: 18
SCREW
€ 2.00
19
0916006007
ref: 19
WASHER
€ 2.00
20
681312691062F
ref: 20
EMBLEM
€ 3.50
