SEAT
ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

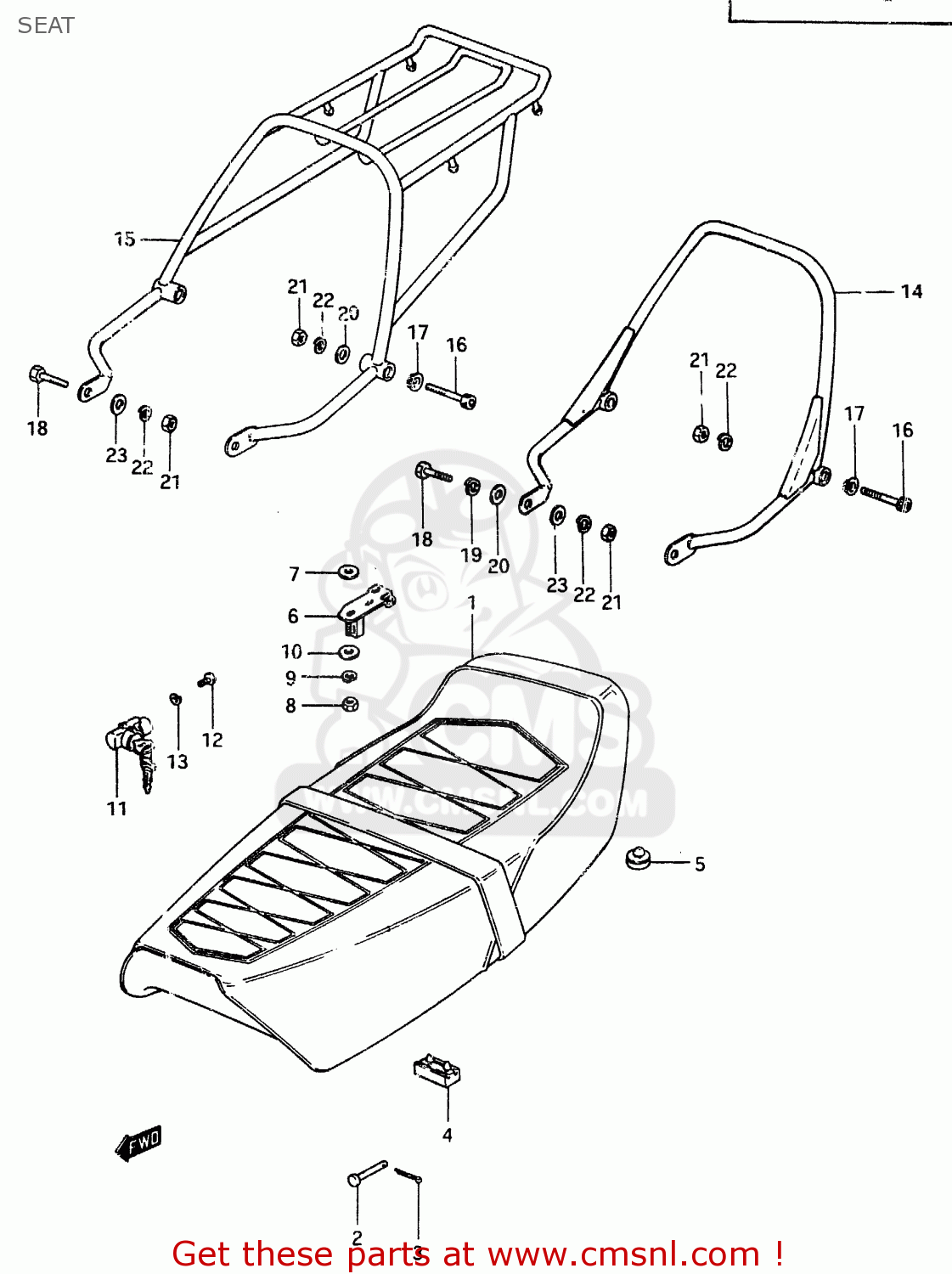

Seat diagram ZR50SK 1982 (X) (E02 E16 E17 E21 E41)
SEAT ZR50SK 1982 (X) (E02 E16 E17 E21 E41)
×
prices are in EUR
ref
part #
description
quantity
1
4510026471866
ref: 1
SEAT ASSY (BLACK)
€ 214.50
1
4510026490866
ref: 1
E16,E17
SEAT ASSY (BLACK)
€ 0.00
2
0920006018
ref: 2
PIN
€ 2.00
3
0411120158
ref: 3
PIN
€ 1.50
4
0932108011
ref: 4
CUSHION
€ 3.50
5
0932110011
ref: 5
CUSHION
€ 3.00
6
4522026470
ref: 6
PLATE, SEAT LOCK
€ 0.00
7
0916008043
ref: 7
WASHER(8.5X18X1)
€ 1.50
8
0831011068
ref: 8
NUT
€ 2.50
9
0832131068
ref: 9
LOCK WASHER
€ 2.50
10
0832221068
ref: 10
WASHER
€ 2.00
11
9570030832
ref: 11
LOCK ASSY,SEAT
€ 54.00
12
0211205128
ref: 12
SCREW
€ 2.50
13
0832121058
ref: 13
LOCK WASHER
€ 2.00
14
4621026421
ref: 14
HANDLE, PILLION RIDER
€ 46.00
15
4631026441
ref: 15
OPT
CARRIER, SPORTS
€ 69.00
16
0910608016
ref: 16
BOLT, REAR
€ 0.00
17
0916908026
ref: 17
WASHER
€ 2.00
18
0110708508
ref: 18
BOLT 8X50
€ 3.00
19
0832121088
ref: 19
LOCK WASHER
€ 2.00
20
0832221088
ref: 20
WASHER
€ 2.00
21
0831022088
ref: 21
NUT 8MM
€ 2.00
22
0832121088
ref: 22
LOCK WASHER
€ 2.00
23
0832211088
ref: 23
WASHER
€ 2.00
