MUFFLER

ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

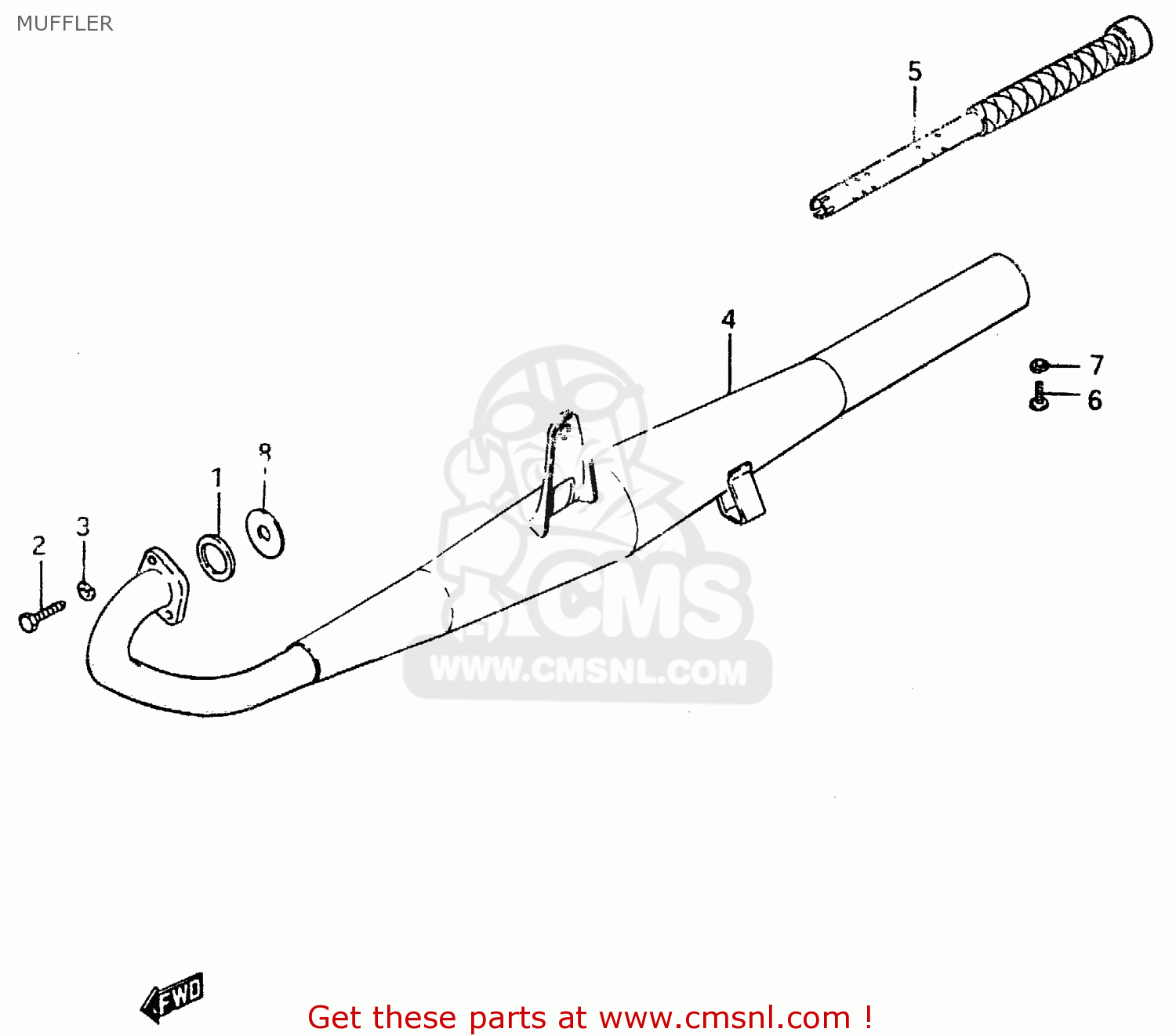

Muffler diagram ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

MUFFLER ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

MUFFLER ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

prices are in EUR

ref

part #

description

quantity

1

1418105020
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 6.50

2

0110706208
ref: 2

BOLT

€ 2.00

3

0832121068
ref: 3

LOCK WASHER

€ 2.50

4

1430126930
ref: 4

MUFFLER ASSY

€ 218.00

4

1430126750
ref: 4
E16

MUFFLER ASSY

€ 0.00

4

1430126920
ref: 4
E21

MUFFLER ASSY

€ 201.50

5

1451046100
ref: 5

PIPE, BAFFLE

€ 14.00

6

0912805004
ref: 6

BOLT(5X8)

€ 2.00

7

0832121058
ref: 7

LOCK WASHER

€ 2.00

8

1415926510
ref: 8
E41

PLATE, EXHAUST PIPE

€ 0.00
