MAGNETO
ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

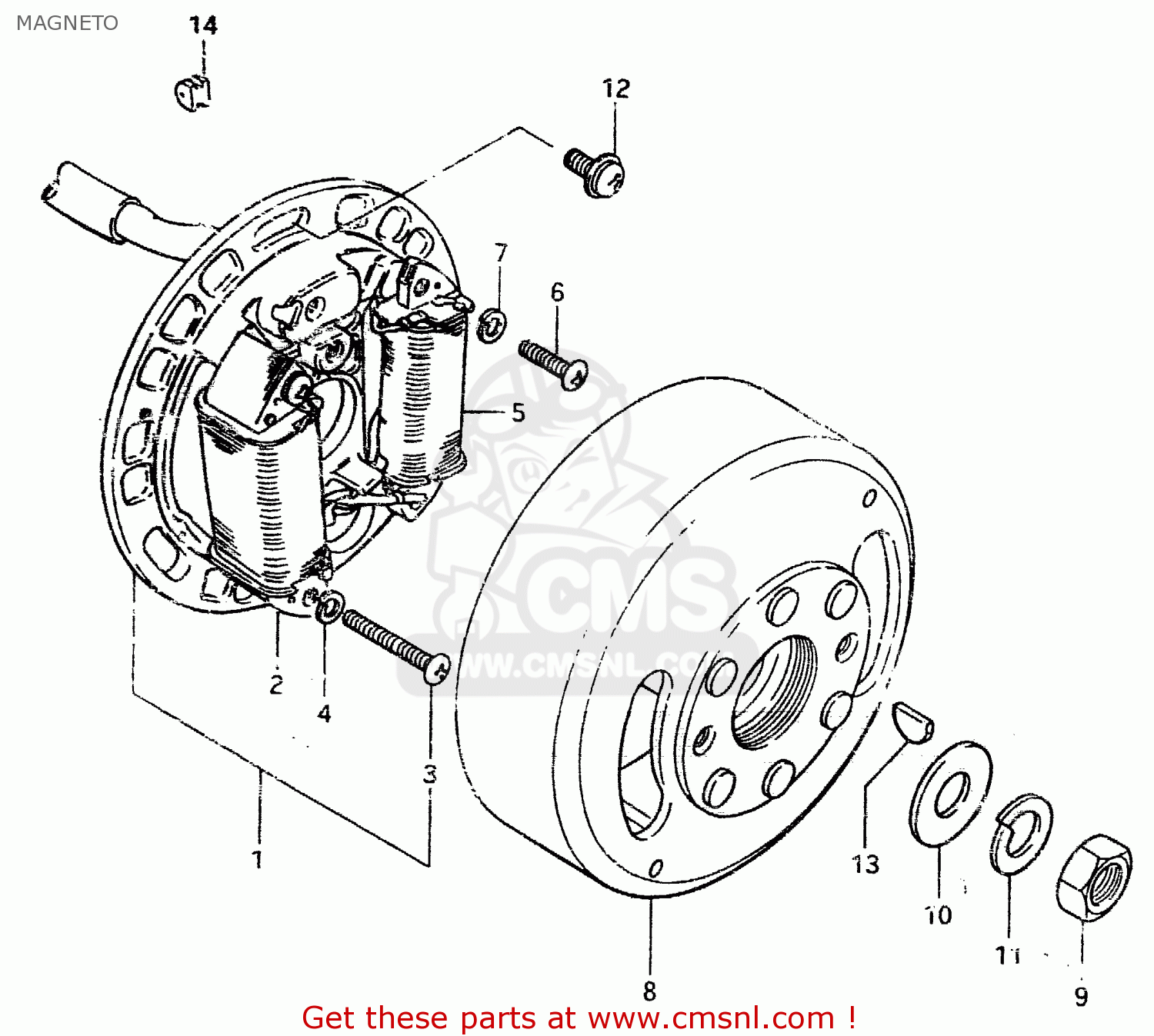

Magneto diagram ZR50SK 1982 (X) (E02 E16 E17 E21 E41)
MAGNETO ZR50SK 1982 (X) (E02 E16 E17 E21 E41)
×
prices are in EUR
ref
part #
description
quantity
1
3210146320
ref: 1
STATOR ASSY
€ 293.50
1
3210146330
ref: 1
E17
STATOR ASSY
€ 0.00
2
3212023012
ref: 2
COIL,LIGHTING
€ 49.00
2
3212046330
ref: 2
E17
COIL, LIGHTINGV
€ 0.00
3
0211204308
ref: 3
SCREW (4X30)
€ 1.50
4
0832121048
ref: 4
LOCK WASHER
€ 2.00
5
3214004510
ref: 5
COIL,PRIMARY
€ 41.00
6
0211204208
ref: 6
SCREW
€ 1.00
7
0832121048
ref: 7
LOCK WASHER
€ 2.00
8
3210246320
ref: 8
ROTOR ASSY
€ 144.50
8
3210246330
ref: 8
E17
ROTOR
€ 0.00
9
0914010003
ref: 9
NUT (10MM)
€ 3.50
10
0832221108
ref: 10
WASHER
€ 2.50
11
0832121108
ref: 11
LOCK WASHER
€ 2.00
12
0913905011
ref: 12
SCREW(5X14)
€ 3.00
13
0834131039
ref: 13
KEY
€ 2.00
14
3274232021
ref: 14
GROMMET,NEUTRAL LEAD WIRE
€ 2.50
