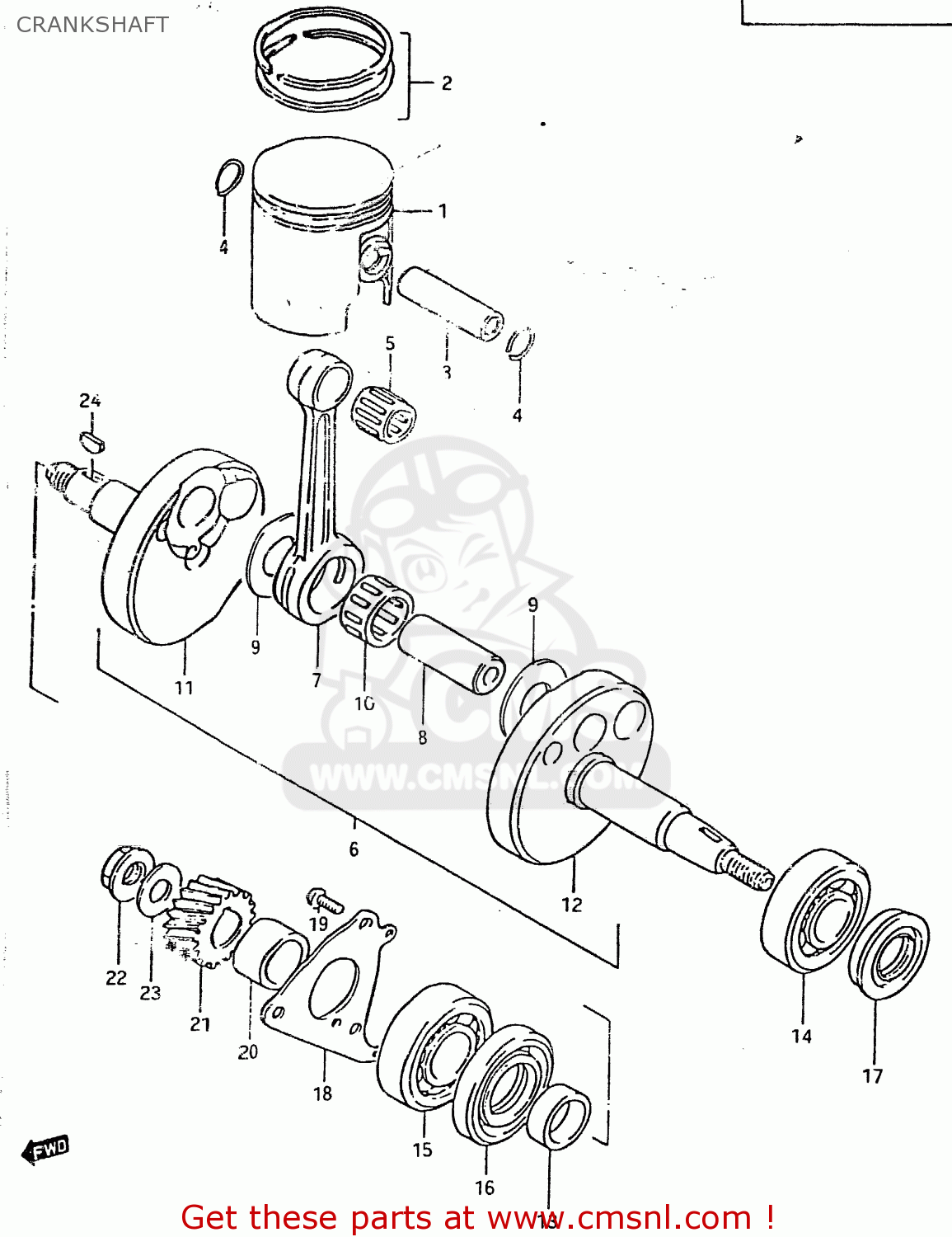

CRANKSHAFT

ref

part #

description

quantity

1

1211046104
ref: 1
STD

PISTON

€ 44.00

1

1211046104050
ref: 1
OPT

PISTON (OS:0.5)

€ 71.50

1

1211046104100
ref: 1
OPT

PISTON

€ 79.00

2

1214046110
ref: 2
STD

RING SET,PISTON

€ 55.50

2

1214046110050
ref: 2
OPT

RING SET,PISTON(OS:0.50)

€ 24.50

2

1214046110100
ref: 2
OPT

RING SET,PISTON(OS:1.0)

€ 53.00

3

1215102000
ref: 3

PIN,PISTON

€ 9.00

4

0938112001
ref: 4

RING,SNAP

€ 1.50

5

0926312015
ref: 5

BEARING

€ 9.00

6

1220046600
ref: 6

CRANKSHAFT ASSEMBLY

€ 262.50

6

1220046620
ref: 6
E17

CRANKSHAFT ASSY

€ 256.00

7

1216135000
ref: 7

CONNECTING ROD

€ 52.50

8

1221146010
ref: 8

PIN,CRANK

€ 23.00

9

0916016021
ref: 9

WASHER(16X29X1)

€ 4.50

10

0926316016
ref: 10

BEARING

€ 19.00

11

1222146600
ref: 11

CRANKSHAFT

€ 0.00

12

1226146600
ref: 12

CRANKSHAFT,LEFT

€ 87.00

12

1226146620
ref: 12
E17

CRANKSHAFT, LH

€ 0.00

13

0918020021
ref: 13

SPACER(20X26X9)

€ 6.50

14

0926220048
ref: 14

BEARING(20X47X14)

€ 28.00

15

0926220045
ref: 15

BEARING

€ 21.00

16

0928326015
ref: 16

SEAL,OIL(26X47X7.3)

€ 6.50

17

0928320034
ref: 17

SEAL,OIL(19.6X37X8)

€ 6.00

18

1254146001
ref: 18

RETAINER,CRANKSHAFT BEARING,R

€ 5.00

19

0211206128
ref: 19

SCREW 6X12

€ 2.00

20

0918020059
ref: 20

SPACER(20X26X14)

€ 7.50

21

2111146000
ref: 21

GEAR,PRIMARY DRIVE NO.19

€ 31.00

22

0915912005
ref: 22

NUT

€ 4.00

23

0916412016
ref: 23

WASHER

€ 5.00

24

0834131039
ref: 24

KEY

€ 2.00
