HEADLAMP (E41)

ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

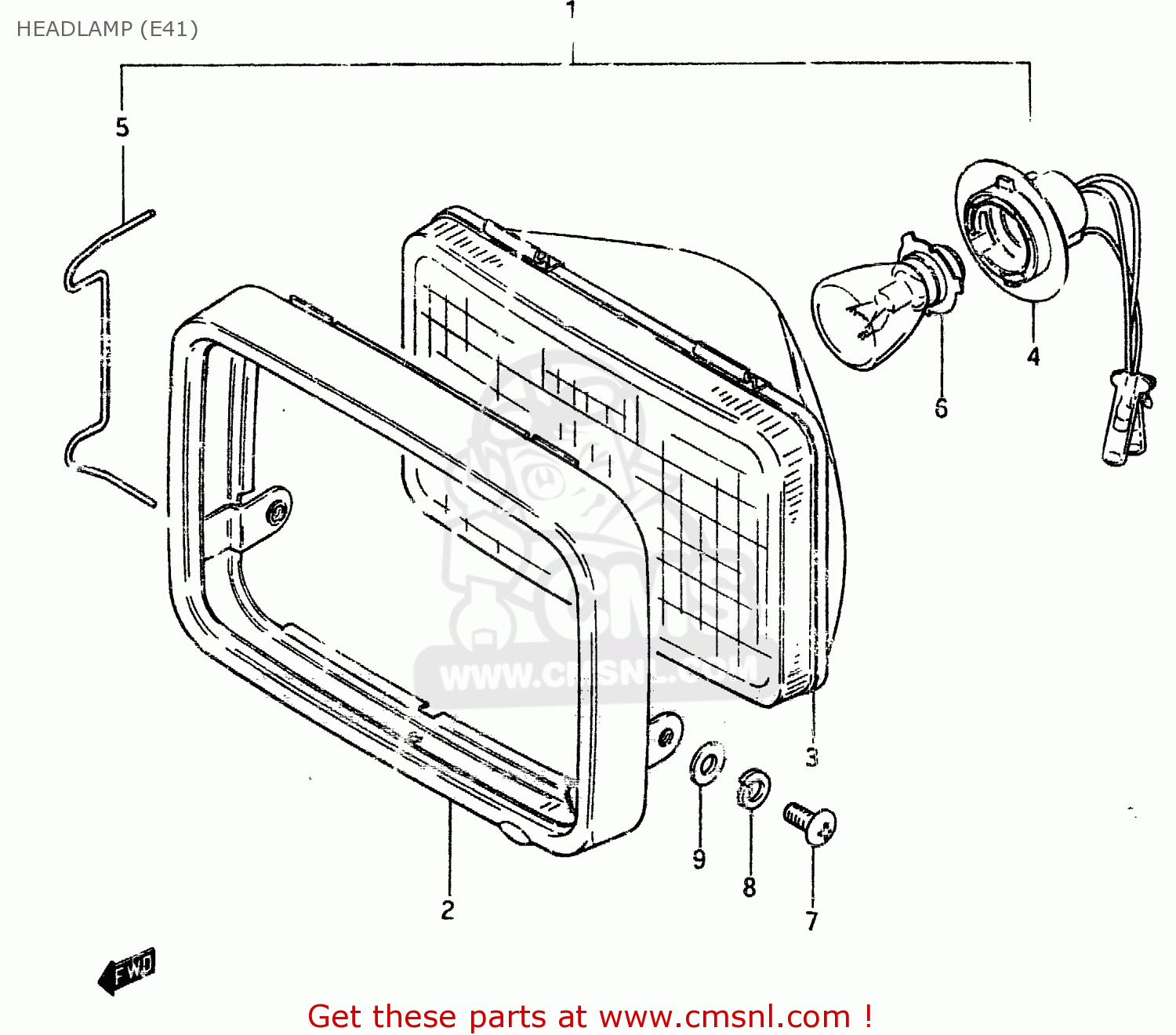

Headlamp (e41) diagram ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

HEADLAMP (E41) ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

HEADLAMP (E41) ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

prices are in EUR

ref

part #

description

quantity

1

3510026410
ref: 1

HEADLAMP ASSY

€ 0.00

2

3511136510
ref: 2

RIM

€ 44.00

3

3512126410
ref: 3

UNIT

€ 44.50

4

3517126410
ref: 4

SOCKET

€ 17.50

5

3512836511
ref: 5

SPRING

€ 4.00

6

0947106029
ref: 6

BULB(6V25/25W,STANLEY,A7007)

€ 9.00

7

0211205128
ref: 7

SCREW

€ 2.50

8

0832121058
ref: 8

LOCK WASHER

€ 2.00

9

0832221058
ref: 9

WASHER

€ 2.50
