FRONT FORK (E41)
ZR50SK 1982 (X) (E02 E16 E17 E21 E41)

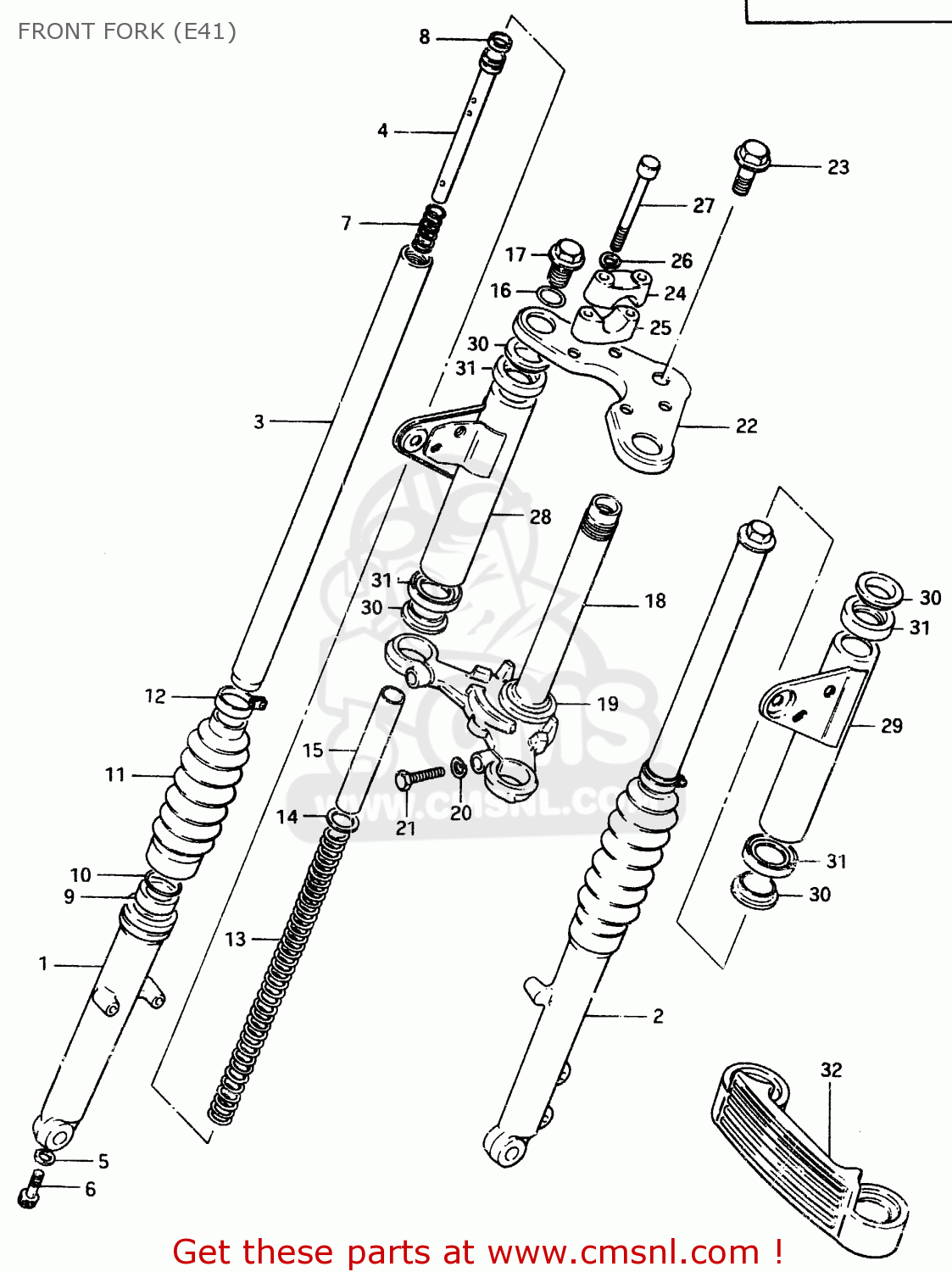

Front fork (e41) diagram ZR50SK 1982 (X) (E02 E16 E17 E21 E41)
FRONT FORK (E41) ZR50SK 1982 (X) (E02 E16 E17 E21 E41)
×
prices are in EUR
ref
part #
description
quantity
0
5110646180
ref: 0
SUB ASSY, FRONT FORK
€ 0.00
1
5113126700
ref: 1
OUTER TUBE, RH
€ 151.00
2
5114126700
ref: 2
OUTER TUBE, LH
€ 134.50
3
5111046180
ref: 3
INNER TUBE
€ 142.50
4
5114626700
ref: 4
CYLINDER
€ 29.50
5
5114831030
ref: 5
GASKET (NAS)
€ 4.00
6
5114748130
ref: 6
BOLT(8X27)
€ 3.50
7
5117746100
ref: 7
SPRING,REBOUND
€ 3.50
8
5119646100
ref: 8
RING,PISTON
€ 6.00
9
5115313200
ref: 9
SEAL,OIL
€ 14.50
10
5115648130
ref: 10
RING,OIL SEAL STOPPER
€ 3.50
11
5157126520
ref: 11
BOOT
€ 32.50
12
0940230306
ref: 12
BAND
€ 6.00
13
5117146180
ref: 13
SPRING
€ 0.00
14
5119246100
ref: 14
JOINT,SPRING
€ 2.50
15
5117646100
ref: 15
SPACER,SPRING
€ 6.50
16
5118146190
ref: 16
O-RING,FORK INNER TUBE
€ 5.50
17
5135146190
ref: 17
CAP
€ 15.00
18
5141026700
ref: 18
STEERING STEM
€ 142.00
19
5162133001
ref: 19
RACE,STEERING OUTER LWR
€ 10.00
20
0832121108
ref: 20
LOCK WASHER
€ 2.00
21
0110710308
ref: 21
BOLT 10X30
€ 3.00
22
5131039130291
ref: 22
STEM HEAD, STEERING
€ 106.00
23
5135246101
ref: 23
BOLT
€ 5.50
24
5621148500291
ref: 24
HOLDER,HANDLEBAR
€ 20.50
25
5621127200291
ref: 25
HOLDER,HANDLE UPR
€ 13.50
26
0832121088
ref: 26
LOCK WASHER
€ 2.00
27
0916008015
ref: 27
WASHER
€ 2.00
28
515304618005H
ref: 28
BRACKET, HEADLAMP RH
€ 0.00
28
515304618007P
ref: 28
BRACKET, HEADLAMP RH
€ 0.00
28
5153046180019
ref: 28
BRACKET, HEADLAMP RH
€ 0.00
28
5153046180189
ref: 28
BRACKET, HEADLAMP RH
€ 0.00
29
515404618005H
ref: 29
BRACKET, HEADLAMP LH
€ 0.00
29
515404618007P
ref: 29
BRACKET, HEADLAMP LH
€ 0.00
29
5154046180019
ref: 29
BRACKET, HEADLAMP LH
€ 0.00
29
5154046180189
ref: 29
BRACKET, HEADLAMP LH
€ 0.00
30
5155346100
ref: 30
CUSHION
€ 7.50
31
5155126700
ref: 31
GUIDE, COVER
€ 8.50
32
5187126410
ref: 32
COVER
€ 25.00
